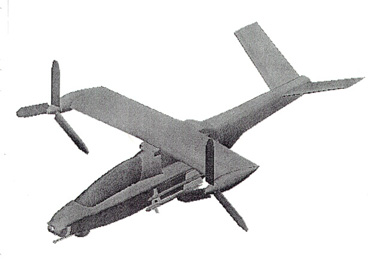

Computer Rendering by CPT James A. Maffatt

First Place of

1997

American helicopter Society/ NASA/Industry

Student Design Competition

Graduate Entry

July 1, 1997

Credit

Project Facult Advisor: Dr. Daniel P. Schrage

Design Team Leader: CPT Scott J. Rauer

Oliver L. OuYang (General Configuration, Mechanical System, Rotor Design, Weight and Balance)

Hong Xin (Aerodynamics)

Zhongning Liu (Sizing)

CPT James A. Moffatt (CAD layout, Documentation)

Gul Tokdemir (Life Cycle Cost)

Mesut Yilmaz (Propulsion)

Ilkay Yavrucuk (Stability and Control)

Omer Soykasap (Structure)

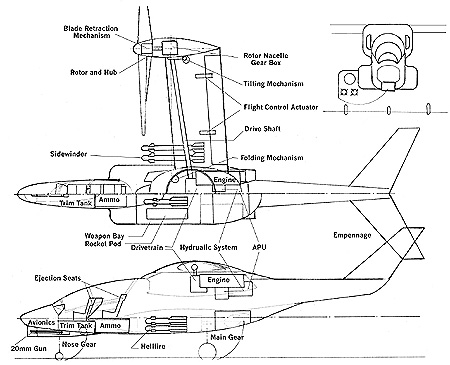

Inboard Profile Design and Computer Enhanced by Oliver OuYang

PMGW	19,535 lbs	Minimum Gross Weight	13,790 lbs
Max Alternative Gross Weight	25,535 lbs	V-Cruise	275 Kts
V-Dash	415 Kts	V-Dive	480 Kts
V-Stall	105 Kts	V-Best Endurance	170 Kts
Max Rate of Climb	3,300 fps	V-Best Range	300 Kts

Performance Data

Armament

AIM-9L Sidewinder Missiles X 4

AGM-114 Hellfire Missiles X 4

LAU-3 2.75" Rocket Pod X 2

Turreted 20mm Cannon w/ 1500 Round Ammunition
