Conventional Ordnance is the most common event that an EOD tech will have to deal with.  This kind of ordnance comes in all shapes and sizes and comes from almost every country on the Earth.  Everyone seems to have their own version of something, which can explode better or travel farther, depending on their needs.  What is shown here is what we have found out on the ranges during our frequent trips.  Every picture on here is unclassified, and  the item was probably destroyed after the picture was taken.

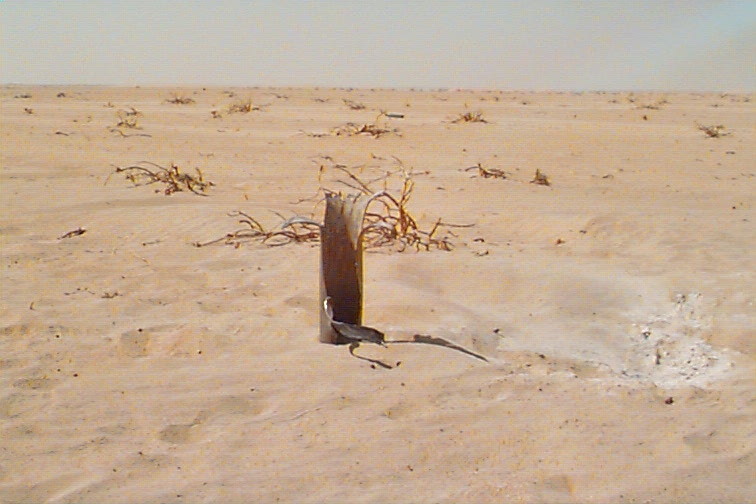

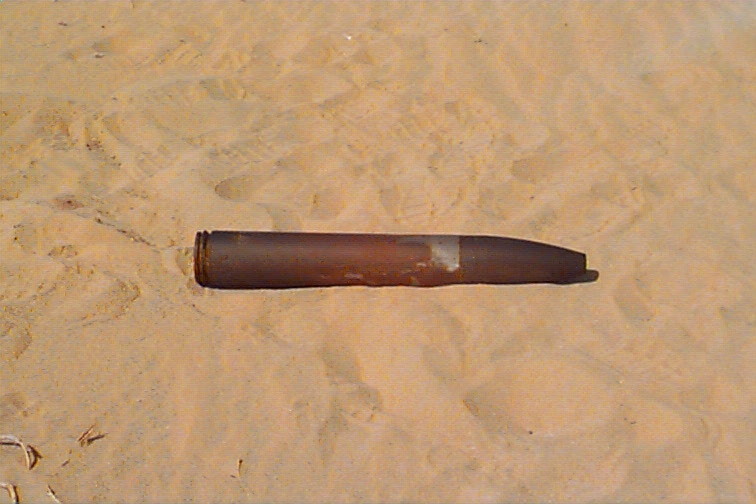

100mm_rocket.jpg (99385 bytes) 100mm rocket, high explosive filled rocket_motor_blown.jpg (100160 bytes) Rocket motor, after we were done

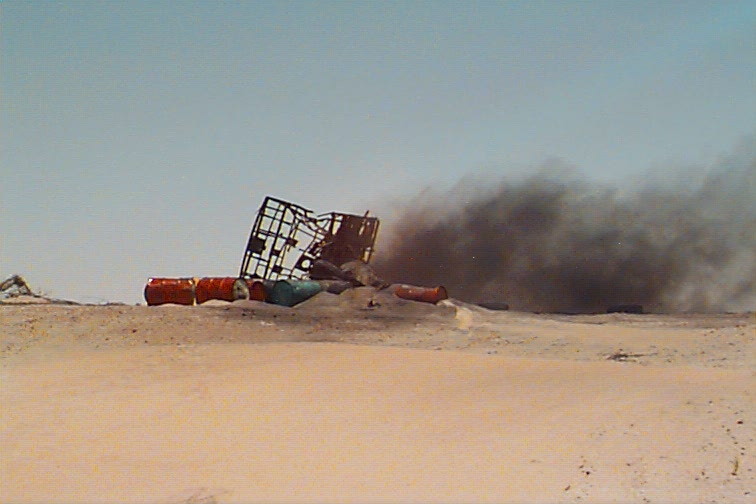

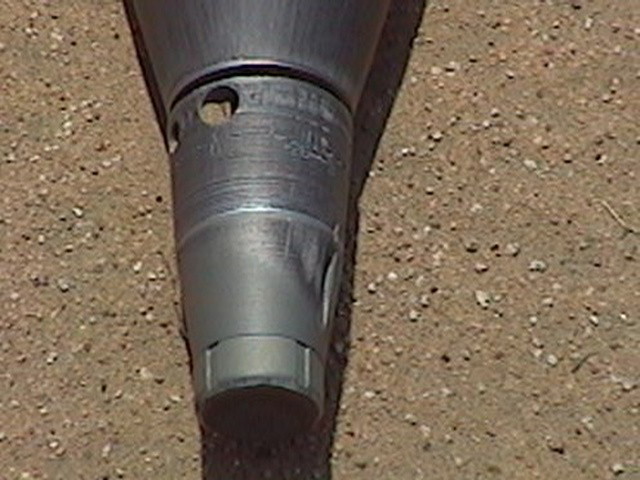

fuze_close.jpg (83720 bytes) Fuze attached to a 100mm projectile aftermath.jpg (77495 bytes) Fuel?  None that I know of...

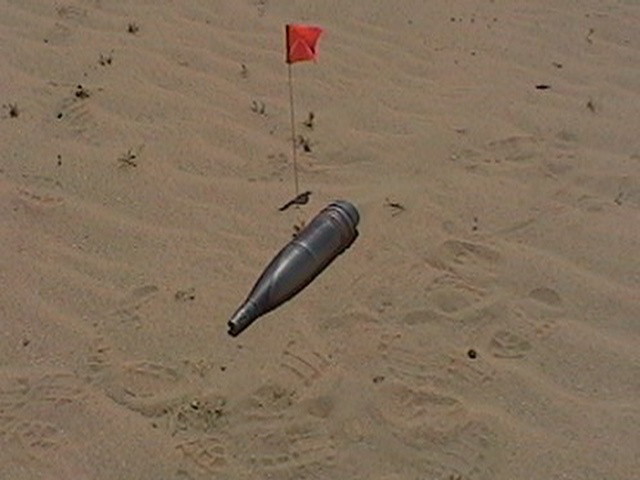

round_and_flag.jpg (59397 bytes) 100mm projectile, with above fuze   More pictures will soon follow!
