Prototype Brake Warning Light

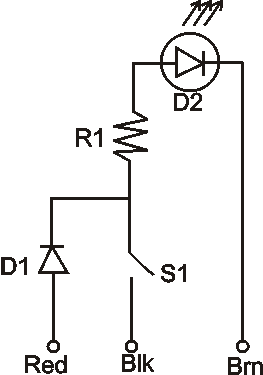

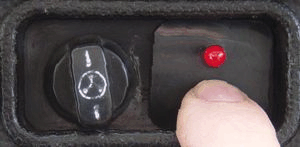

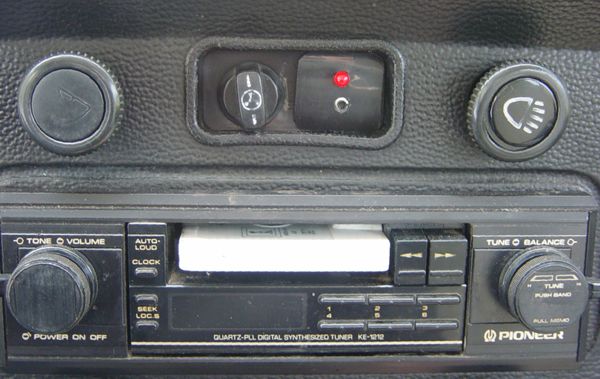

		D1 keeps the tail lights from going on when you press the switch.  R1 is needed to limit current in the LED. The original circuit uses an incandescent bulb. This is a prototype with no housing, just a simple plastic face.
