Project

Engineering Software Project

Synopsis

This project involves the design and analysis of screw jack used for lifting a vehicle. In this project, we analyze the members of the screw jack in NASTRAN, PATRAN and Pro/E with Pro/Mechanica. The project is divided in three parts. And they are:

1.Design and analysis of the screw jack as a truss model (One dimensional model) using NASTRAN.
2.Design and analysis of the lower left link of the screw jack (as a plane model) using PATRAN.
3.Design and analysis of the lower left link of the screw jack (as a solid model) using Pro/E along with Pro/Mechanica.

We are analyzing the screw jack and its links for a force of 2000 lbs acting on the top link of the screw jack to replicate the loading conditions on an actual screw jack. We shall do this by determining the stress and displacement values at different points on the screw jack, upon loading, by the application of the above-mentioned design softwares. We have also compared the various results obtained from the analysis of the three softwares, to determine the best program for analyzing the screw jack.

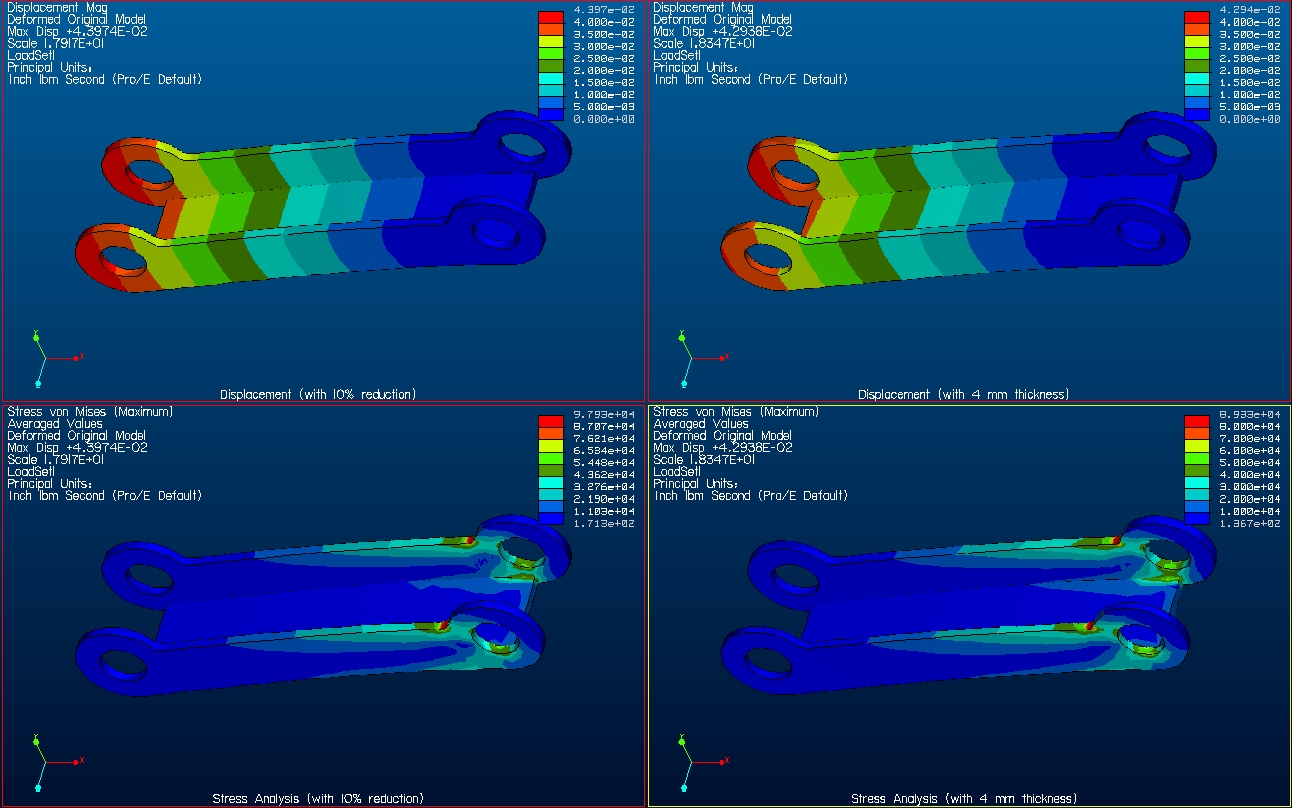

Stress and Displacment reults obatined from Pro/E. Click on the thumbnail to view actual image.

The following links will show the pdf format of the various result files obtained from analysis of the screw jack by PATRAN

1. Displacement plot for thickness of 4mm

2. Stress Analysis plot for thickness of 4mm

3. Displacement plot for reduction in thickness by 10%

4. Stress Analysis plot for reduction in thickness by 10%

Click on the link below to view the comparison charts of the results obtained from the analysis of the Screw jack from the three design and analysis software programs, viz. NASTRAN, PATRAN and Pro/E.

Comaprison Charts

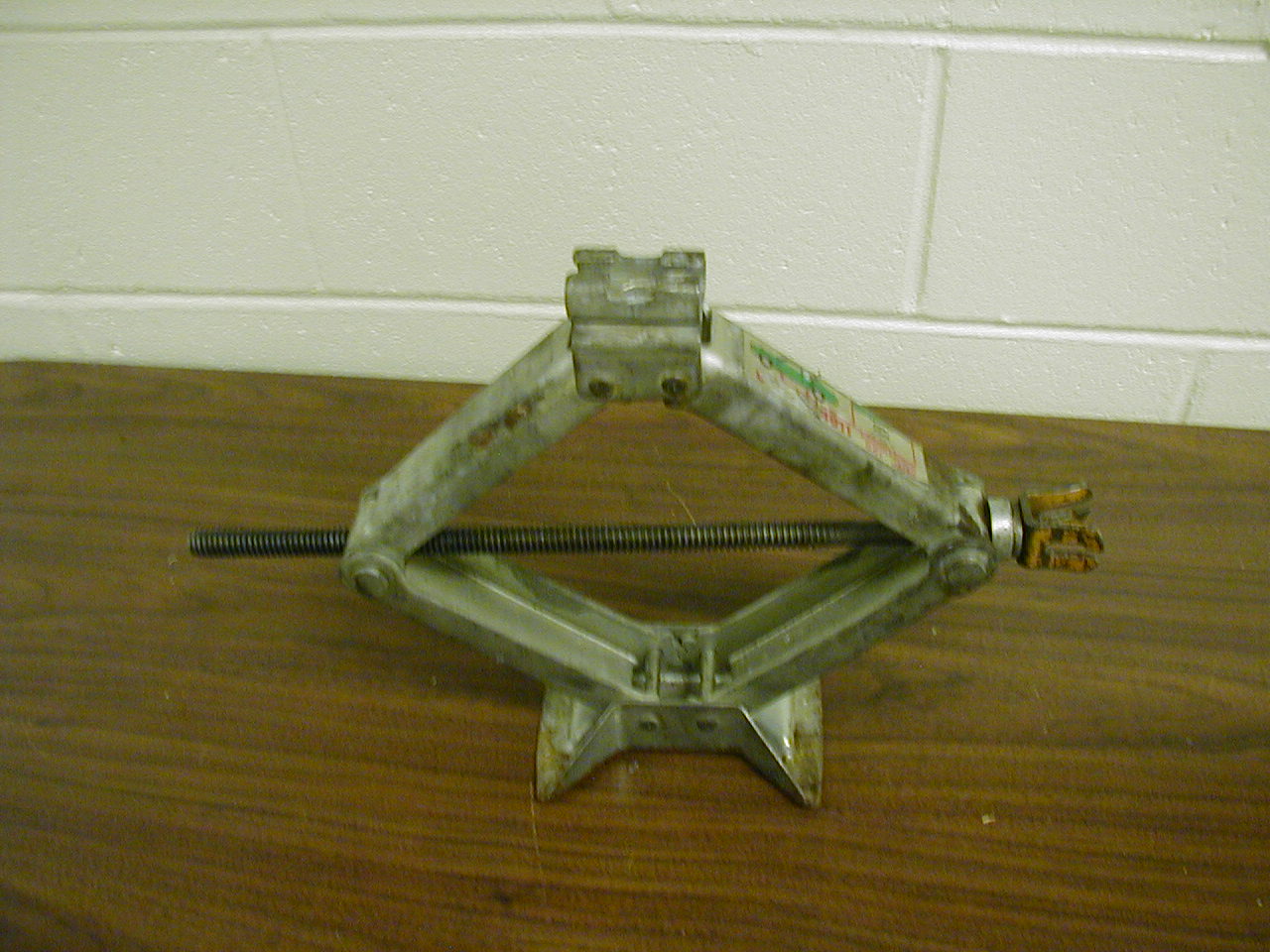

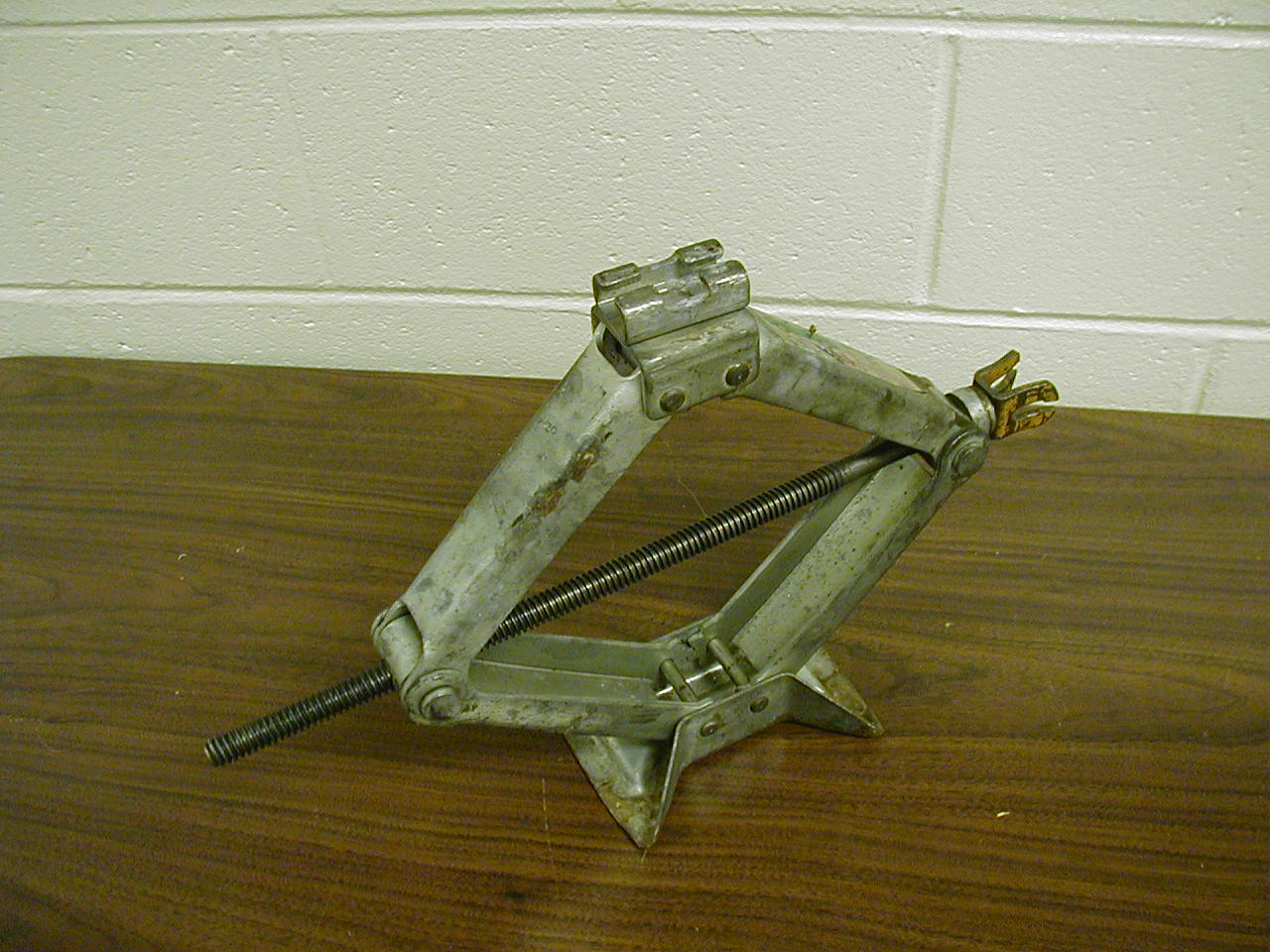

To view the pictures of Screw Jack click on the thumbnails
