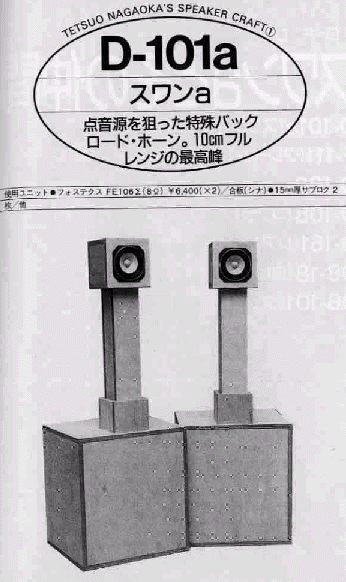

Nagaoka Swan  D-101a
FOSTEX FE108sigma

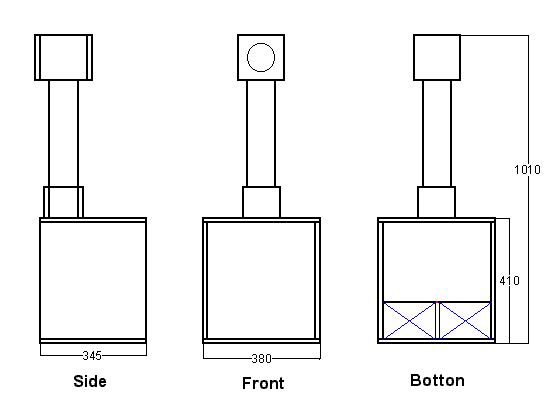

New drawings

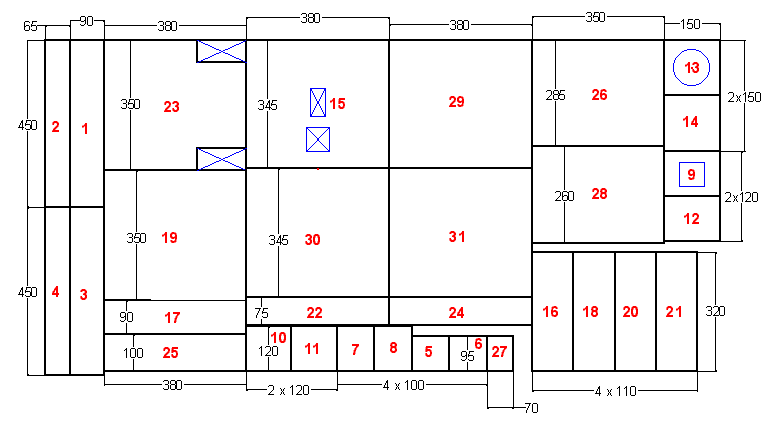

Parts

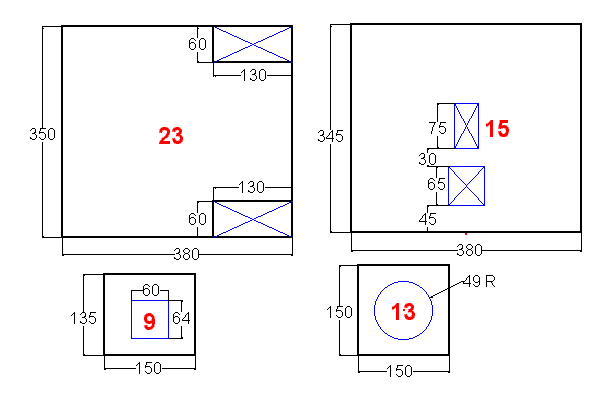

Detail of parts

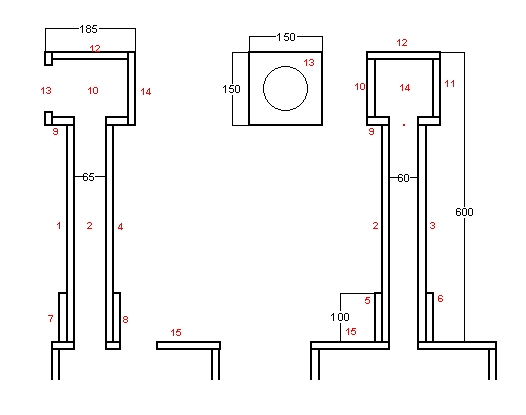

Neck and driver box.

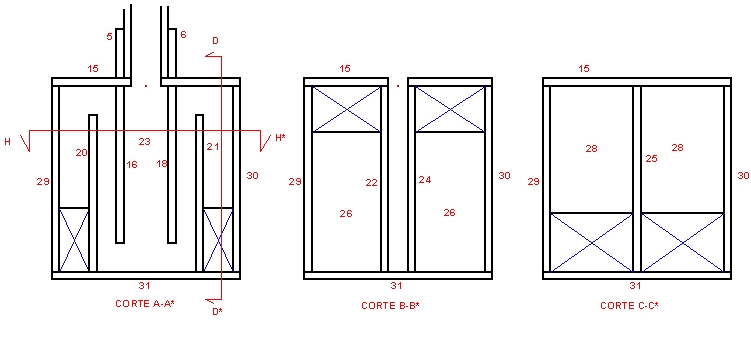

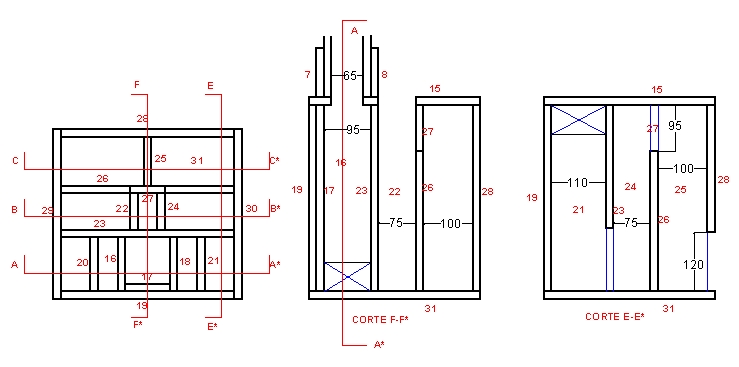

Box details.
