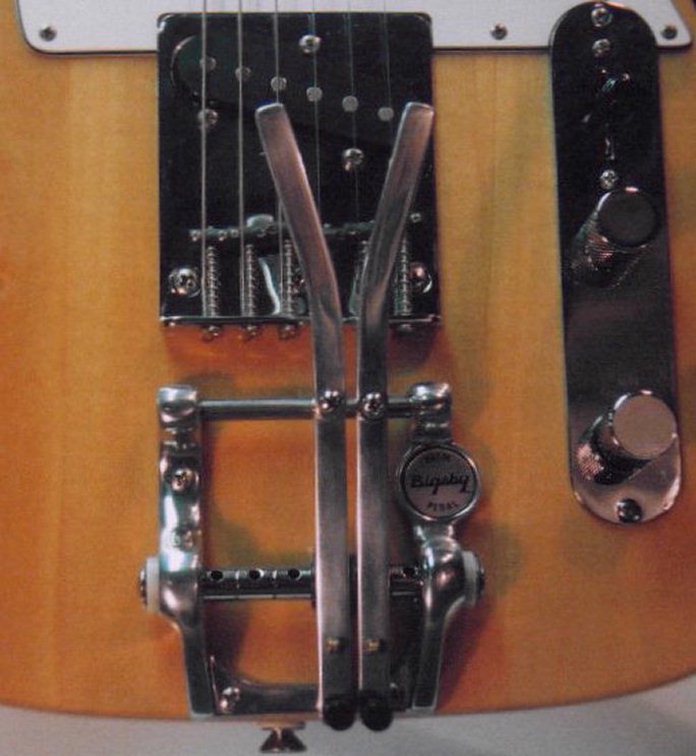

| BP-15 SW "Swing-Arm" Assembly |

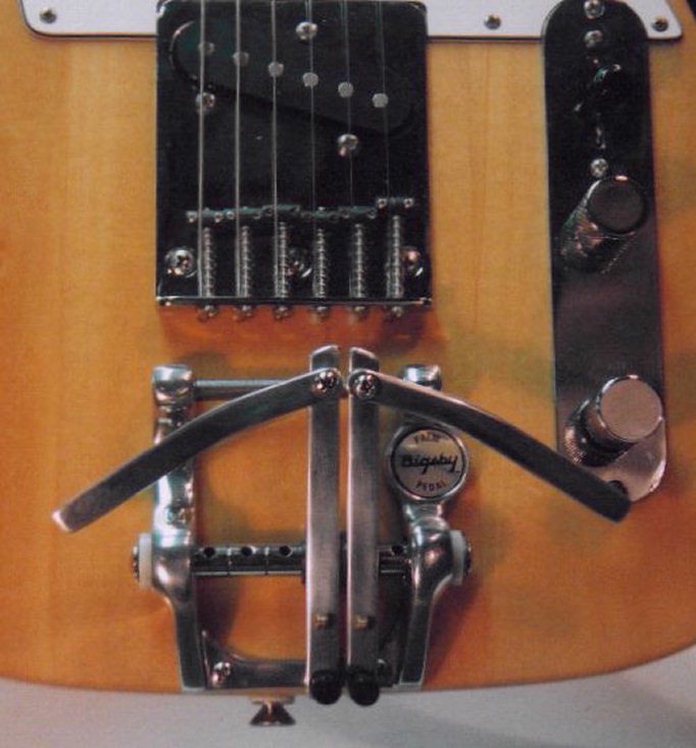

| For guitars like the "Tele" with a shorter "Bridge-to-Pin" distance. The arms are 1/2" shorter and swing out of the way for "normal play". |

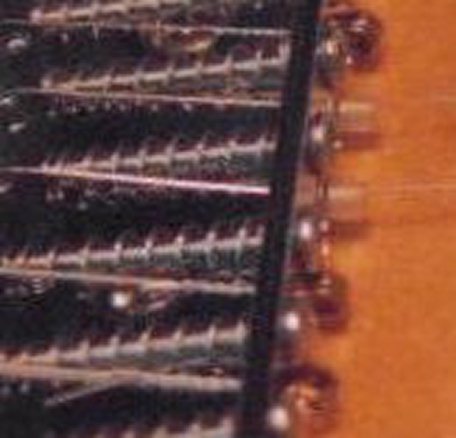

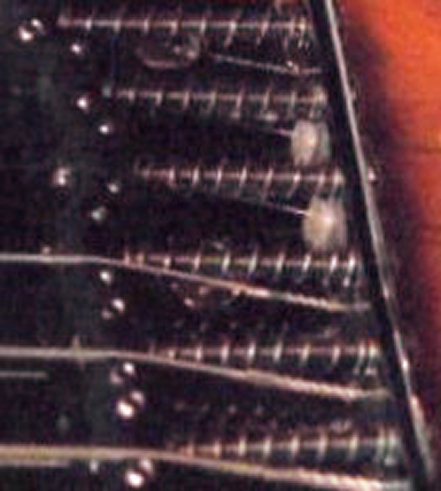

| A "Bushing Kit" is provided for getting the strings to pass to the saddle with the correct pressure angle for "Tele" installations. The saddles must be the "Barrel" type with "off-set" intonation screws (3 or 6). Two 1/8" holes are drilled in the end of the bridge plate (or just enlarge the two "top loader" holes). As shown here: w/recommended Graph Tech "String-Saver Saddles" for reduced friction / pitch return. |
| A Left "Swing - Arm" is also great for a "Multi - Pedal" Assembly, used as a "Wrist - Lever" ! |
| * * * |
