Simulation Results of Piscataqua River, New Hampshire

�

Finite element computational grid, pr6 of the Great Bay Estuary system. The five straight lines mark the five transect cuts. The northern top boundary is the outlet M2 tidal forcing boundary and the southern bottom boundary is the inlet M2 tidal forcing boundary.The bathymetric contours reveal a center channel through the lower part.

�

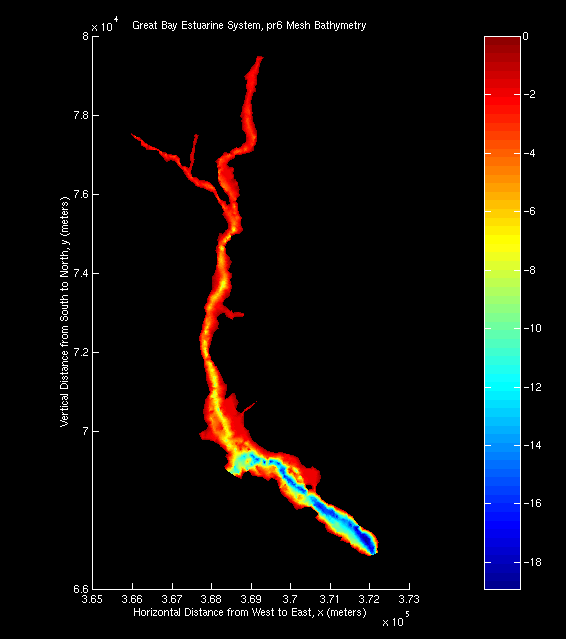

Two-dimensional color map of bathymetric depth of pr6
