Simulation Results of Upper and Lower Piscataqua

Time series of the total fluid volume (top figure) and the cumulative transport across the four transects (bottom figure) for the pr6 grid. The periodic solid line with the most variation in one cycle corresponds to the seaward transect that with the least variation, the landward transect; etc.

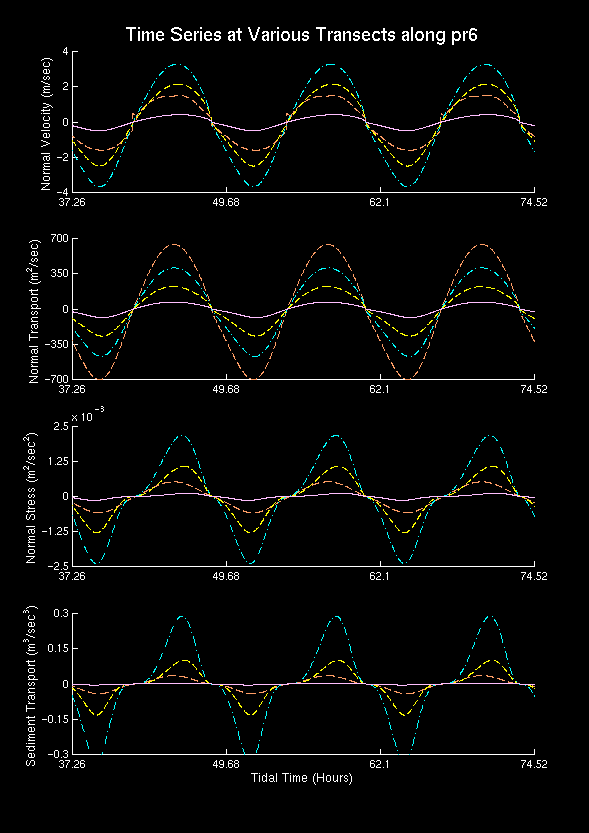

Time series of the maximum normal velocity (top panel), normal transport (second panel), maximum normal bottom stress (third panel), and maximum normal sediment transport across the four transects (bottom panel) during the second half of the simulation (three M2 periods).
