I took one ride in a buggy with a 1200 single port and just had to build
one. So the search was on after looking at a hand full
of possible candidates I was told of this old dune buggy in a barn
behind a car dealer. It had been sitting for over 10 years and
was used as a buggy for beating in the woods of the East Coast. This
thing was as rough as they get but I loved the lines of the
body. The chassis is a “62” the body is a Fiberfab "Clodhopper" picked
it up for $400. I had it flat bedded to my house and plopped in the driveway.
Boy o Boy! was my girl friend happy. "Ok not realy" So the project began
stripped it to the tunnel and worked my way out. Completed the project
in 10 months. Thanks to all my friends” and a large stack of dead presidents.
ENGINE/Type 1 Displacment: 2276cc Crank: Scat 82mm Rods:
H beam Pistons: Mahle 94mm
Cam: Web 121/125 Heads: By AJ. Simms Valve Size:
37.5 x 42 Compression Ratio: 9.8:1
Ignition: MSD billet, 6A, Blaster coil Spark Plugs: Bosch
Carbeuration: 48mm Dells Intake Manifold: Matched
ported
Exhaust System: Custom built and HPC coated Flywheel:
8 dowelled 12 lb.flywheel Oil: 30w Oil Cooler: Full flowed
Transaxle/VW Type 1 Swingaxle Beefed flyer
Builder: KCR trans
Clutch: 1700 lb. Kennedy w/ Kush lock disk, CNC Hydraulic clutch.
Special Modifications: "Top Secret"

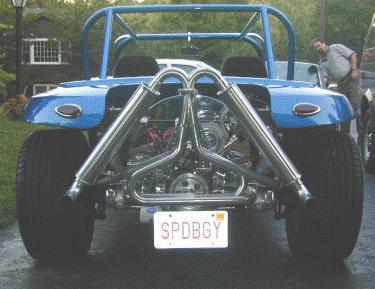

The plate says it all.
