MGA Front Suspension Rebuild pictures: Jan-Feb 04
Click on pictures for larger view, hold cursor over pictures for headings.  I had a Moss suspension kit, a shop pressed in the brass bushings and reamed them.  They also checked the bearings and renewed the seals.  Gaiters were also Moss, hope they last.

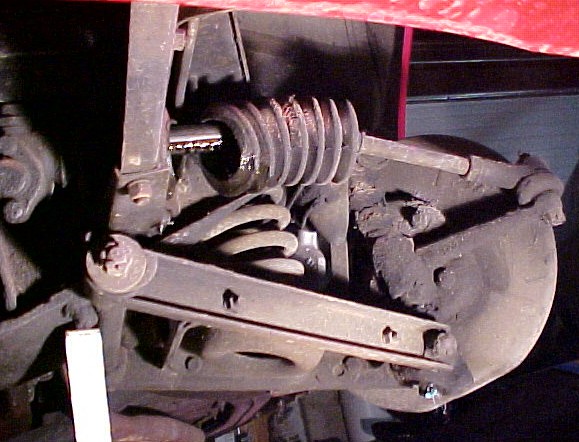

Torn gaiter and years of grime.

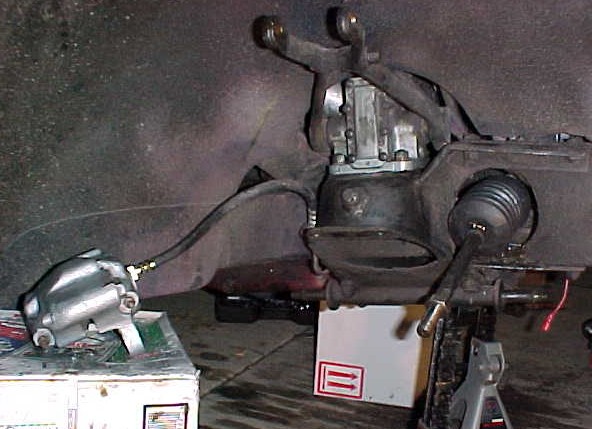

New Gaiter, damper checked and everything somewhat clean, to start re-assembly.

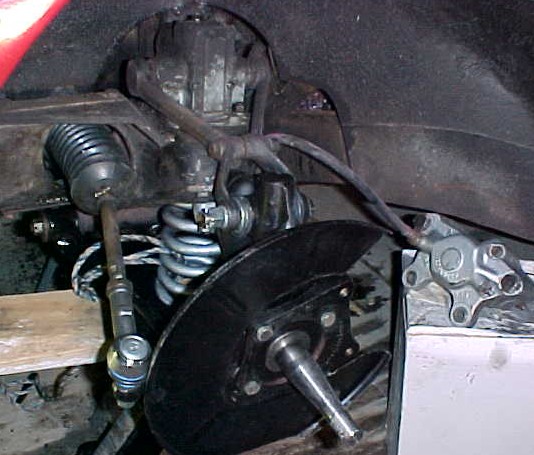

Spring and rebound rubber in place, Swivel arm ready to lift into damper arm..
This project was fairly simple.  I used the knockoff with washers and socket against swivel arm to remove the hubs, worked well.
I hope handling and "feel" will be improved.  I have ordered an Addco sway bar, so will update later on the effect of that.

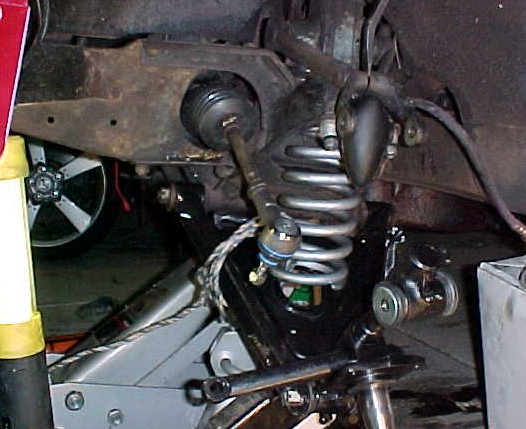

Dust cover back on Swivel arm.  New tie rod end fitted.
Back to Main MGA page
To see Front sway bar project, click here.

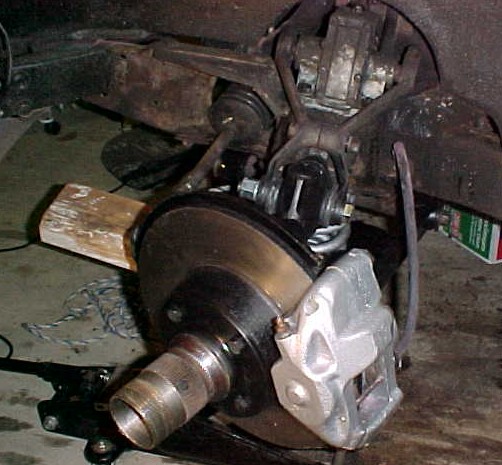

Wheel hub and brake caliper back in position.
