H6303 INFORMATION STORAGE AND RETRIEVAL

ASSIGNMENT 1

NAME: CHU HO CHEUNG DOMINIC

This report discusses the database design and creation, search and retrieval features of two IR software, namely, Inmagic DB/Text and dtSearch. In each case, a small database is built using 4 bibliographic records from LISA Plus.

First, define textbase – text database structure, specify a name for the textbase and define the fields.

Define one field after another. For each field, specify

• Field name
• Field type as one of the following:
• Text - Any text including punctuation, spaces, and line breaks (carriage returns)
• Number
• Date - Dates of different formats supported

• Automatic Number - A non-editable unique number generated by DB/TextWorks
• Automatic Date - The current date or current date and time; not editable

• Automatic ID - An automatically generated sequence of characters, representing the next value in a series, which can be edited
• Computed Number - An automatically generated value derived from a user-specified formula
• Computed Date - An automatically generated date derived from a user-specified formula
• Image - associated image filename(s)
• Link - text to match and match and associate information in another textbase
• Code - Any items in which case and punctuation should be considered significant during searches and sorts, such as chemical names or scientific formulas
• UDC - Universal Decimal Classification numbers, used for the classification and retrieval of documents
• Indexing: Term or Word indexing which will limit the search capability mentioned in the next section

The following is an example of the Textbase structure for a simple bibliographic database

Textbase name: 6303a1

Fieldname Fieldtype Indexing(T-term,W-word)

Author last name Text TW
Author first name Text TW
Title Text TW
Journal Text TW
Volume Number T
Issue Number T
Year Number T
Page no Number T
ISSN Number T
Keywords Text TW
Abstract Text TW
Photo Image T

Besides, one can specify the validation rules for each field:

• Field Entry Required - This field must contain at least one entry.

• Unique Entries Only - An entry in this field must be different from every other entry in this field throughout the textbase.

• Single Entry Only - This field cannot contain multiple entries.

• None - Information will be validated during data entry, import, or batch operations.

• Range and/or Mask - Specify range restrictions (for example, minimum 1, maximum 10) and/or masks (for example, ### requires three digits).

• Validation List - Specify a list of entries allowed in a field.

In this example database, entry validation: Field entry required and Unique entries only are chosen for Author last name to ensure all records have unique only authors last names populated.

Whenever the database structure is changed, DB/Text will automatically refresh the indexes where necessary (e.g. when a new field is added or the indexing type is changed for existing fields).

A default tabular form is ready for user to key in data for each record, for fields of image type, DB/Text expect the user to fill in the path and filename of the image.

In our example, if the user try to save a new record with blank Author last name, a warning message

Entry in field ‘Author last name’ cannot be empty .

Appear and user must fill in the field before the record can be saved.

If the user try to save a new record with existing Author last name, say Blake, a warning message

Entry in field ‘Author last name’ should be unique, but is not.

Appear and user must fill in the field with a different last name before the record can be saved.

New records can be added / updated / deleted using the default form listing all fields of a record and the indexes are updated on completion of each action.

For large volume of inputs, user can choose to import from external source, provided that the input file follow the specification of the subjected database. In our example, a valid external source is preferably an ASCII file with each records separated by CR(carriage return)/LF(line feed) and each field separated by comma or tab.

E.g.

Weiss,A.,Building bridges to Java,Internet World,9,1,1998,94,

10643923,World Wide Web,Discusses ways in which JavaScript routines can be written to produce Java applets. Presents a step by step procedure for carrying out the program,a:\7arrow1.bmp

(Assume the above is in a record in 1 line without breaks in the external source files)

will be recognized as a valid record using the express import function. To accept external source of other format like HTML, Lotus 123, a separate add-on DB/Text import filter must be installed.

To browse all records in the database, just click on the Find All Records (globe button in the toolbar) to trigger the Find All Records command, which actually runs a query with criteria as select all records.

A default report of all records will be displayed. User can design their own report layout to display only fields in concern. Besides printing out the reports, user can also write the current report to 3 different file formats: Plain text, Rich text format(RTF), or HTML to facilitate processing the reports in other applications.

In our example, to view the image file for each record, just click Show Record Images button and the subjected image will be displayed in a separate window in which user can perform simple functions like zoom in/zoom out, rotate image, invert colors.

Two searching interfaces are provided:

Type criteria into boxes and optionally toggle Boolean AND, OR, NOT buttons. Click the Execute Query (Green Go button) to submit the search.

User can place either a word, a term or Boolean / proximity search query in each box to conduct a search on a particular field.

Type criteria as a statement, using a particular syntax. Useful when specifying complex criteria.

Notice that search is not case-sensitive.

The following features example of searches using QBE and corresponding Command query which attain the same effect:

dtSearch basically accept user supplied files as the database records and perform indexing on them to update an index file for later search and retrieval operations.

User can choose to create a basic index(just specify the name for the index and the index file will reside at dtSearch program directory) or an advanced index where user can specify the name and path of the index file and options for accent-sensitive and case-sensitive indexing.

For a case-sensitive indexing it means Food, FOOD, food will be treated as different words.

For accent sensitive index accents will be taken into account in indexing words.

The index size will be relatively bigger if any of the two options are turned on.

To populate the database, user simply supplies dtSearch the file to be indexed one file after another by Add file

button or the whole directory of files by Add folder button.

File name: dtSearch support filename filter and user can supply filename pattern like

SMITH*.DOC to select files like SMITHA.DOC, SMITH11.DOC

File Formats : dtSearch automatically recognizes major word processor files, DBF files, ANSI files, and ZIP files through the filter available. User can also the exclude filter to skip certain type of files from being indexed.

Once files are added and OK button is pressed, updating of index will proceed and status displayed. A completion alert box tells user how many files are added to the index.

User can choose from pull down menu to reach update index dialog box allow user to maintain the index anytime. The index manager allows user to copy/delete/compress an existing index.

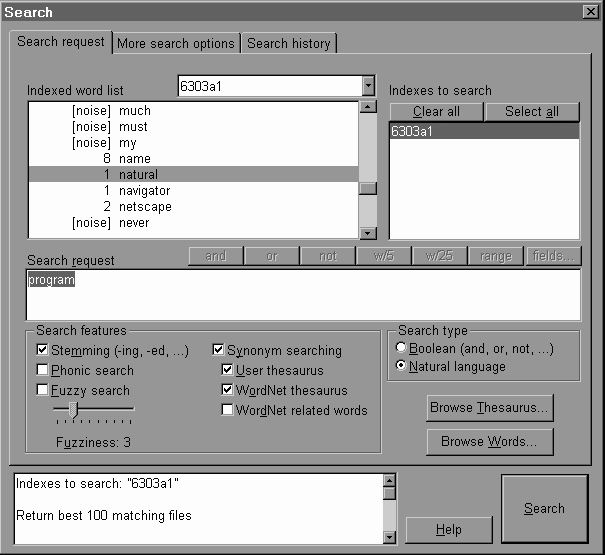

Once index is created, user can click the search button to start searching for records by composing the search request

User is allowed to browse the whole index file as shown in a complete Indexed word list, showing number of hits and the indexed word(e.g. name occur 8 times in the example below). Common words, which are not useful in searches, are called noise words(e.g. must in the example shown).

User can simply compose the search statement in the Search request area and turn on/off a number of search features below it and then click Search button to proceed with a search.

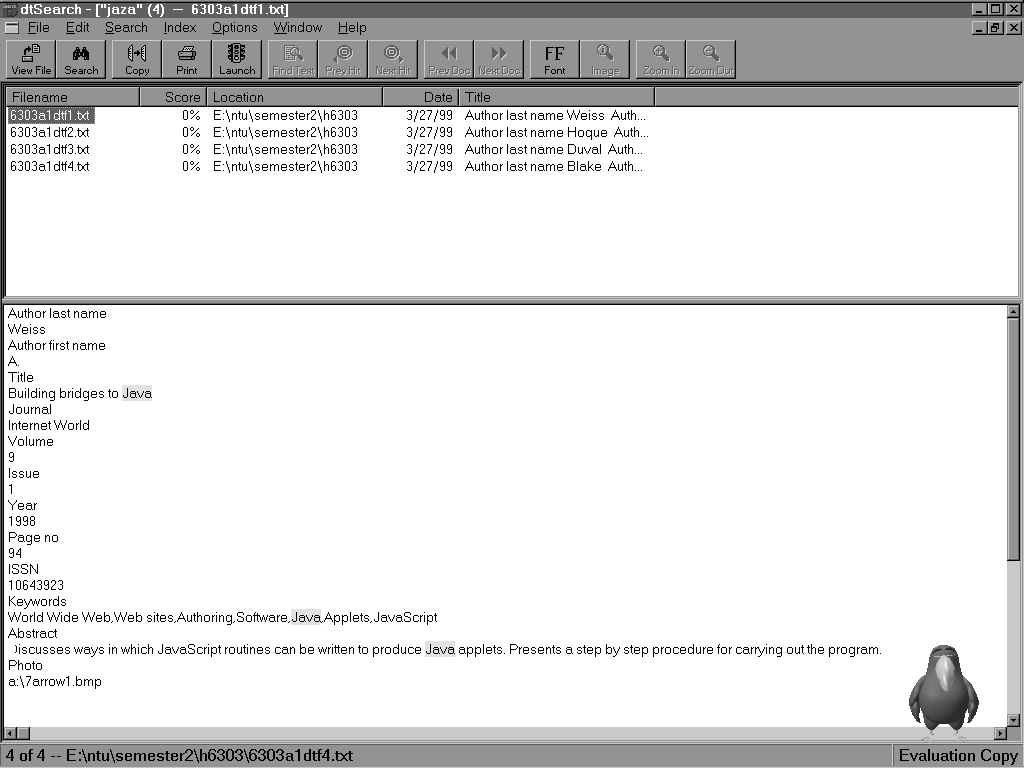

All search results are presented by a list of files with words indexed meeting the search criteria, listing in he upper pane the information of the subjected filenames, order by relevance score in % or no. of hits, path of file, date of creation and title of the file. The lower pane shows the contents of the subjected file and hits(match in searches) are highlighted in yellow. User can press the previous / next button to view all the hits.

Search report can be generated with options to select the amount the contents to be included.

Many search features are available:

i) Stemming

e.g. function will retrieve records with words function or functions

apply will retrieve records with apply or application etc.

ii) Truncation

Wildcard search at any position is supported (* for any no. of characters and ? for single characters)

java* for Java and Javascript, etc

*a?a for Lava and Java and Strata, etc

iii) Phonic

search for words supplied and also words of same pronunciation

For example, a phonic search for program will also find programme

iv) Fuzzy

this search feature helps to find even words that are misspelled. The degree of acceptable misspelling is controlled by the Fuzziness bar, the greater the Fuzziness the higher extend of misspelling will be accepted.

This is particularly useful for documents scanned and translated from image to text using OCR where 100% recognition is not always guaranteed.

e.g. raising the Fuzziness to 3 and searching a word Jaza will match records with word Java

v) Synonym search

A thesaurus is used to find synonyms of words in your search request.

The thesaurus can be user defined for from the Wordnet concept network which can cover Synonym, Antonym(opposite meaning), Hypernym(sub categories of search word), Hyponym(search word belongs to this category), Meronym(member of search word) and Holonym(search word is a member of it).

Search type radio button allow user to specify if a search is a Boolean search or natural language search

vi) search options exclusive to Boolean search type

a) Boolean (AND, OR, NOT)

e.g. easy AND data

retrieves records with both words easy and data

b) Proximity (w/5 – within 5 words, w/25 – within 25 words are supported)

e.g. examples W/5 action

return records where action is within 5 words from examples

c) Range

user will be prompt with a dialog box to key in the numeric range by specifying the lower and upper bound which translate into the syntax lower bound~~upper bound

e.g. 1~~8

returns records indexed with numbers between 1 and 8 (inclusive).

User can also choose to specify just lower or upper bound.

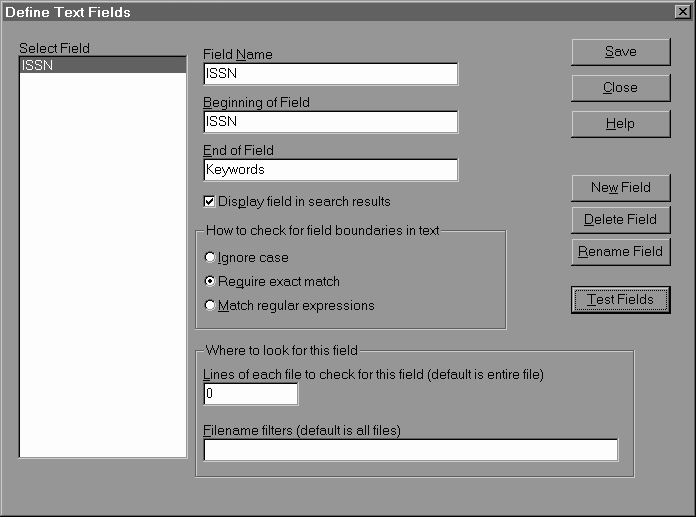

d) Field search

supported provided fields are defined by user like ISSN field beginning marker is ISSN and end marker is next field tag Keywords

and then user can use fields search option to specify the field to search

vii) search type Natural language (when Boolean, proximity, range, fields are disabled)

A natural language search request is any combination of words, phrases, or sentences. After a natural language search, dtSearch sorts retrieved documents by their relevance. Weighting of retrieved documents takes into account: the number of documents each word in your search request appears in (the more documents a word appears in, the less useful it is in distinguishing relevant from irrelevant documents); the number of times each word in the request appears in the documents; and the density of hits in each document. Noise words and search connectors like NOT and OR are ignored..

e.g.

returns results with scored in rank terms of % of relevance

viii) More search options

user can specify combination of indexed or unindexed search, filtering by filename, date and size and limit number of search results records.

ix) Search history provide a means to refine search statements using all previously conducted searches statements and the following strategies:

Both software provide easy-to-use interface for user to create a database. DB/Text allows user to specify the structure of the database at field level and type, indexing method(term or word) and validation rules of each field which is not available in dtSearch. In DB/Text user can change the fields definition even when the textbase is already populated with records.

To populate records into the database, DB/Text rely on the form for data entry which is tedious. While an import function is available, the external source must follow a specified format according to the textbase structure which is not always practical provided sources of different format and layout. dtSearch is relatively more flexible as indexing is performed in any recognizable files without stringent limit on the format.

Both software support links to external image files. DB/Text use a photo field to store the location of image file while DB/Text associate image file to indexed document by filename rather than contents in the document. Links to another textbase at field level is only available in DB/Text

Index management of dtSearch seems more extensive as compression of index is available to save storage space. The same feature is not reflected in DB/Text.

The following tables compare the search features between the 2 software:

DB/Text is stronger in supporting phrase indexing, comparison/range search and proximity search where dtSearch is stronger truncation(wildcard supported), natural language search, synonym and refining search using historical search statements.

DB/Text allow users to export the full search results into text files, RTF or HTML for further processing while dtSearch allow user to the select amount of context of search results to be included in a search report.

dtSearch also lets user browse the index file and export it to text files. User can speed up composition of search statement by choosing the indexed words in the index file shown.

In terms of presentation of search results, DB/Text provide user design options in the layout/fields to include in the reports which is not available in dtSearch.

DB/Text is more useful in building database that required validation of records according to certain rules like bibliographic records, however the limitation on the tightly defined structure make it less flexible in handling documents of free text structure, which is well handled by dtSearch. DB/Text has higher capability in generating reports of search results in terms of layout and fields to be included.

Both software have numerous searching capability and yet user must go through training to utilize all the power features. Otherwise, the QBE in DB/Text and Natural language search in dtSearch are the best places for novice users to jumpstart their search.

Contents are extracted from LISA plus database and used to build DB/Text textbase.

Documents are then exported from records of the DB/Text textbase and indexed by dtSearch.

1) h6303a1dtf1.txt

Author last name

Weiss

Author first name

A.

Title

Building bridges to Java

Journal

Internet World

Volume

9

Issue

1

Year

1998

Page no

94

ISSN

10643923

Keywords

World Wide Web,Web sites,Authoring,Software,Java,Applets,JavaScript

Abstract

Discusses ways in which JavaScript routines can be written to produce Java applets. Presents a step by step procedure for carrying out the program.



2) h6303a1dtf2.txt

Author last name

Hoque

Author first name

R.

Title

Brewing Javascript

Journal

Internet World

Volume

8

Issue

2

Year

1997

Page no

104

ISSN

10643923

Keywords

Javascript,Software,Authoring,Web pages,World Wide Web

Abstract

Presents an illustrated guide to the use of Javascript, introduced by Netscape with their Navigator 2.0. It is designed as a cost free, easy to learn scripting language for the tailoring and personalizing of World Wide Web (WWW) home web pages and for performing a range of other functions. Points to the advantage of Javascript over Java in its ability to manipulate the content and appearance of the web page itself. (The author may be contacted by electronic mail at [email protected]).



3) h6303a1dtf3.txt

Author last name

Duval

Author first name

B. K.

Title

Microcomputer applications in the library

Journal

Library Software Review

Volume

16

Issue

3

Year

1997

Page no

164

ISSN

07425759

Keywords

Library technology,Software,World Wide Web,JavaScript

Abstract

Explains how Java, a programme language similar to C++ relates to HTML and Javascript. Examines Javascript as a means of increasing user interactivity with a Web page. Discusses Javascript fundamentals and includes several examples of it in action. Original abstract-amended.



4) h6303a1dtf4.txt

Author last name

Blake

Author first name

P.

Title

Create Web pages with automated expertise

Journal

Information Today

Volume

13

Issue

3

Year

1996

Page no

53

ISSN

87556286

Keywords

Internet Studio,JavaScript,InTEXT,Software,Authoring,Web pages,World Wide Web

Abstract

Describes new products available to assist Web page authoring. A fresh generation of tools is being developed to make it easy to create `live' documents based on Sun's Java and its rivals. Reviews InTEXT to generate HTML pages and automatic hypertext links with a facility to view, search, summarize and retrieve data using natural language. 28 companies including Apple, Silicon Graphics and Hewlett-Packard have signed up for JavaScript, a program from Netscape to aid the creation of Java applets. Discusses Java's chief rival in World Wide Web publishing, Microsoft's Internet Studio. Discusses the implications of Internet Studio's reliance on Object Linking and Embedding.
