| Jason's |
| Off Road Golf Cart Project |
 |
| The rear lift went well. No problems at all. I figured the rear would be a lot harder than the front, but everything fit good. |
 |
 |

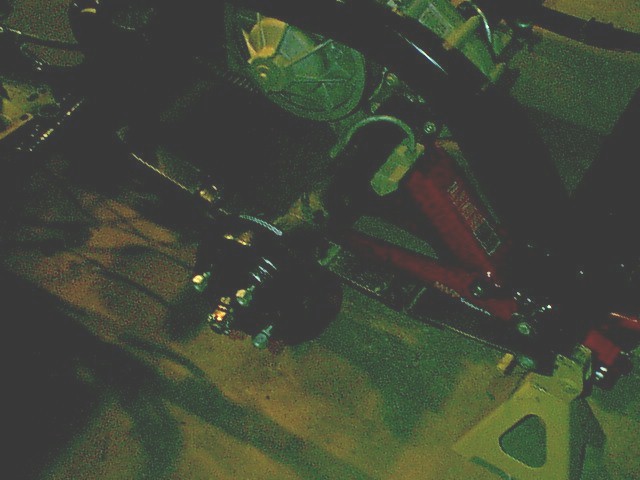

| I started by removing the U bolts, shocks and rear end mount and bushings. |

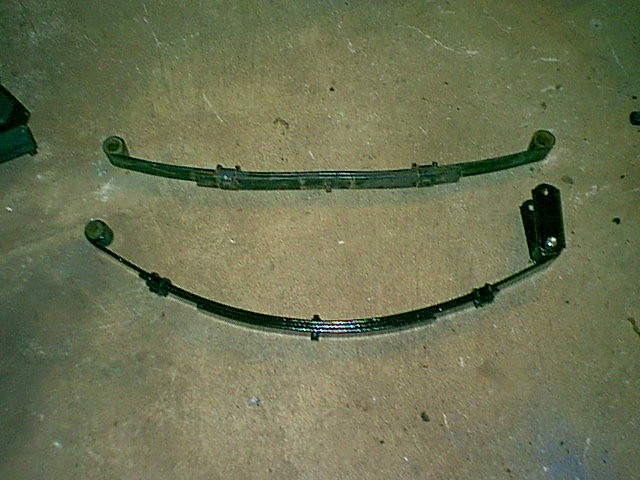

| Next I assembled the rear spring packs. New shackles, bushings. Big difference between the new springs and the stock ones. |
 |
 |

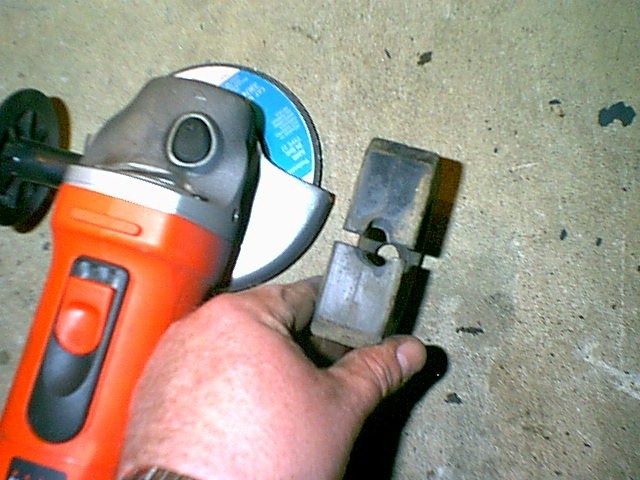

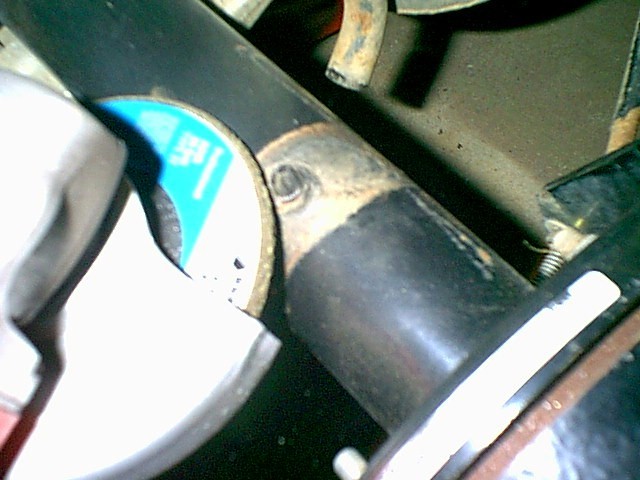

| Next I used and hand grinder to grind the studs on the rear end housing. I cut about 1/2-3/4 off. The used the grinder to notch the rear bushings out. The main mount and bushing have to be inverted and the bushing has to go around the stud (the one just ground off.) And then the alignment stud on the new spring fit down in the new notch in the bushing. |
