A Grand Luxury Mansion
In the Roman/Palladian Style

The Mansion contains: Full Basement; Three Full Stories; plus Fourth Floor Attic.
Approximately 75,000 Square Feet

    The Mansion Consists of the following:

  • The Basement View Basement Floor Plan contains Service and Utility Areas as well as Excercise and Entertainment Areas.
    Overall Ceiling Height is 14 Feet.
    Approximate Area - 17,500 Square Feet.


  • The Ground Floor View Ground Floor Plan contains the Main Entertainment Rooms with some Service and Utility Areas.
    Overall Ceiling Height is 18 Feet
    Approximate Area - 17,500 Square Feet.


  • The Second Floor View Second Floor Plan contains the Main Guest(s) and Master Suites with some Entertainment Rooms and Service and Utility Areas.
    Overall Ceiling Height is 16 Feet.
    Approximate Area - 17,500 Square Feet.


  • The Third Floor View Third Floor Plan contains the Auxillary Entertainment Rooms and some Service and Utility Areas.
    Overall Ceiling Height is 16 Feet.
    Approximate Area - 17,500 Square Feet.


  • The Fourth Floor View Fourth Floor Plan Attic - with Dormers - contains the HouseHold Servants Rooms with some Entertainment Rooms and some Service and Utility Areas.
    Overall Ceiling Height is 8 Feet at the dormers to 18 Feet at the peak.
    Approximate Area - 15,000 Square Feet.




To Print individual floor plans: click on desired plan and press CTRL P.

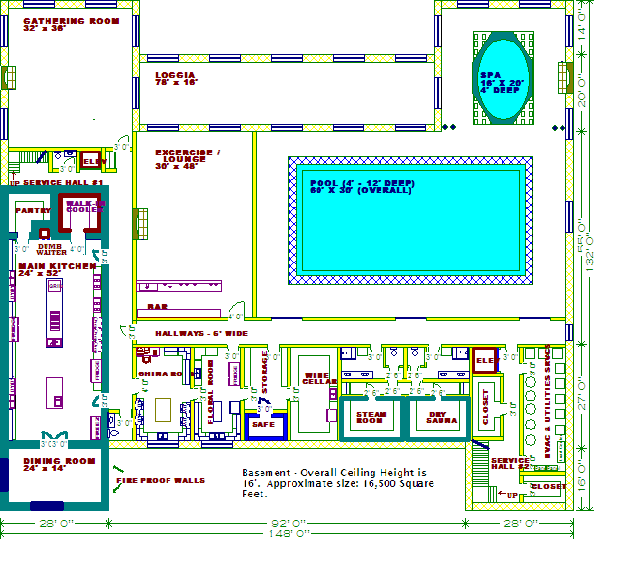

BASEMENT

Return to Top of Page

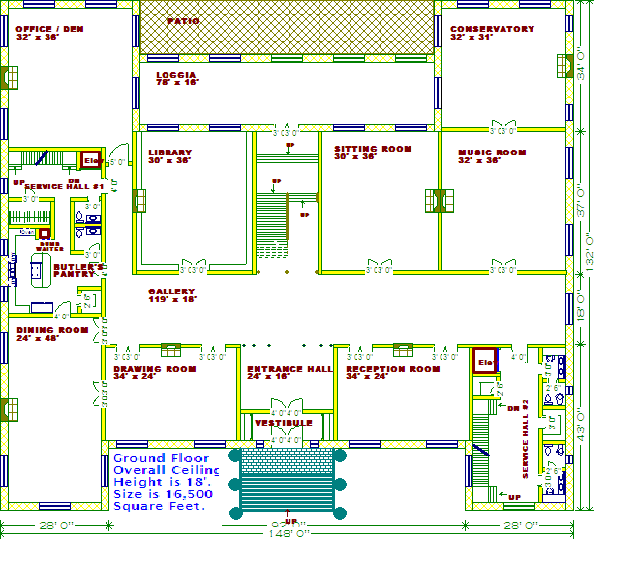

GROUND FLOOR

Return to Top of Page

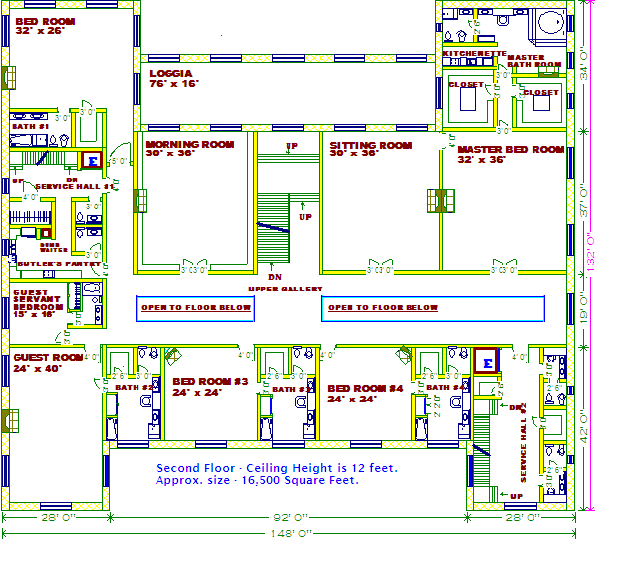

SECOND FLOOR

Return to Top of Page

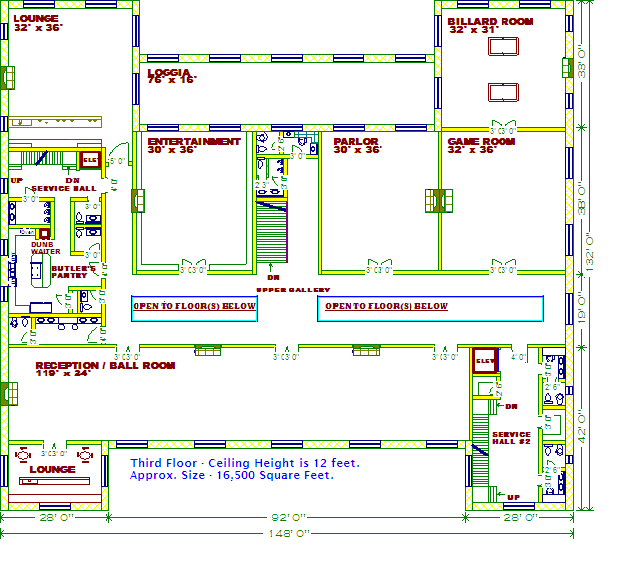

THIRD FLOOR

Return to Top of Page

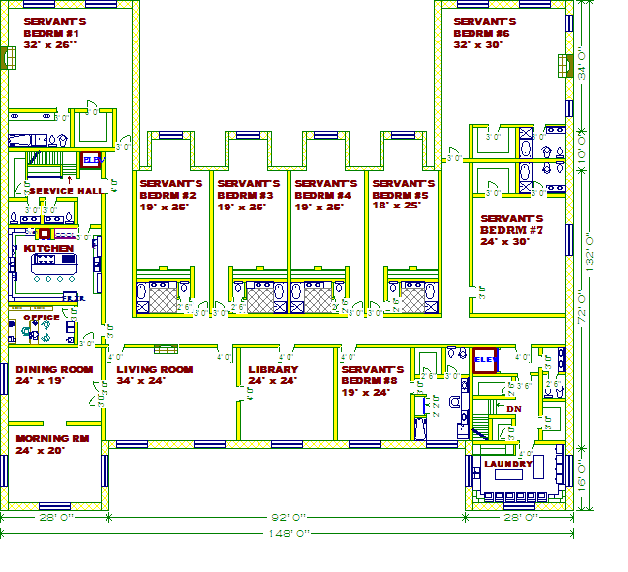

FOURTH FLOOR

Return to Top of Page
