| How to build a WEEVIL fuselage and tail |

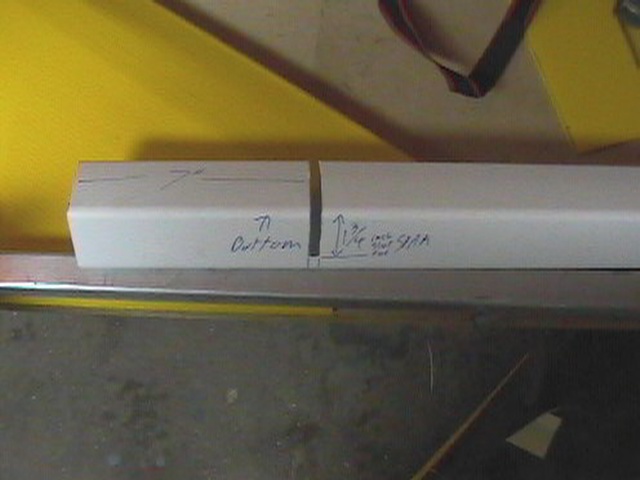

| Cut away the area meant for the spar. I used a dremel but a hot knife or even a hacksaw will do fine. |

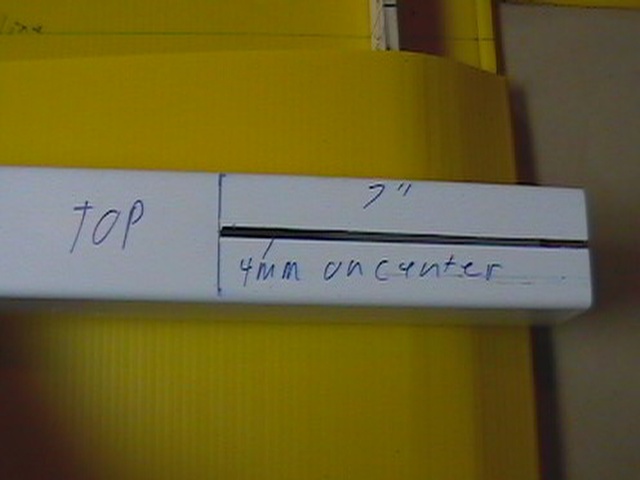

| Same here for the tail. |

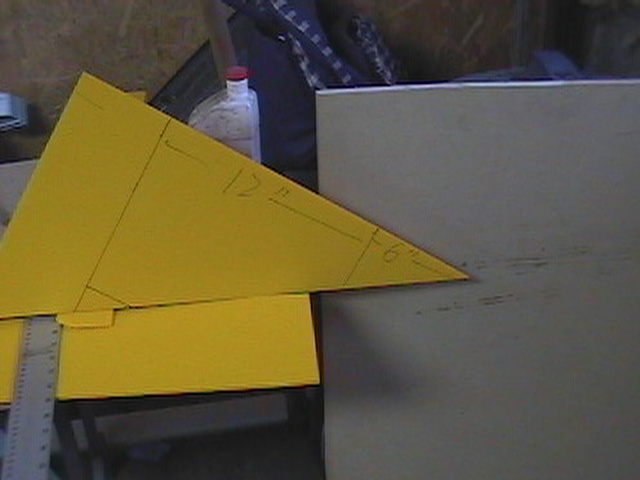

| With one of the scraps from earlier. mark the pice 6" down from the top and 12" from there. Trim the front to match the fuse and your off. |
| Count in ten flutes for a rudder and remove one side fo a hinge. I changed the picture here for a after thought. If a notch is taken out of the front of the bottom of the stan it makes installing the rear wing mount much easier. |

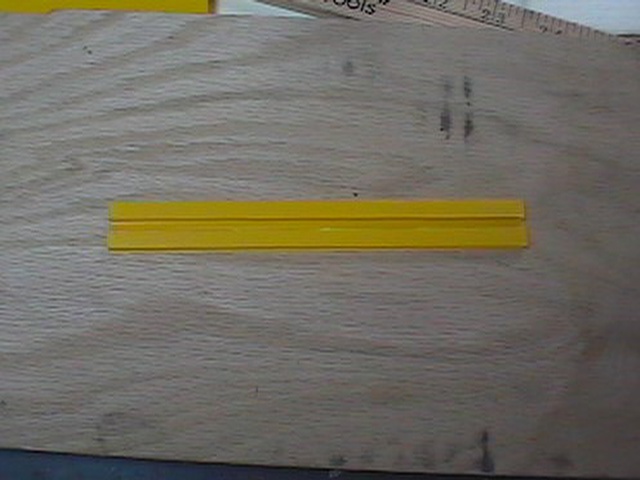

| Get a small piece of scrap and cut it like so to support the rudder. |

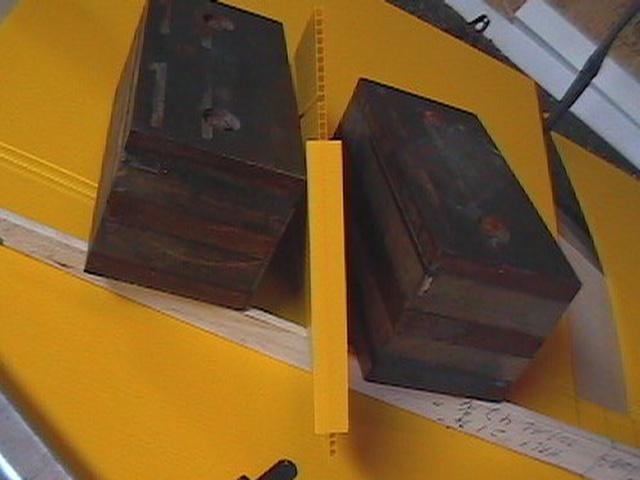

| I used goop to glue this pice into place. Others will do fine. Glue it to the bottom of the rudder/ vertical stabilizer. |

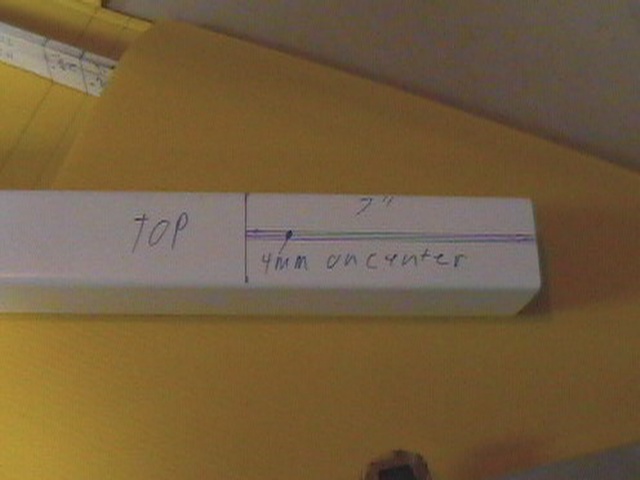

| Start with a piece of downspout 32 and 1/2 inches long, Mark the tail 7" in from the rear on the top and down the center. Now mark 2 mm to each side of the line for the widtnh of your coro tail. |

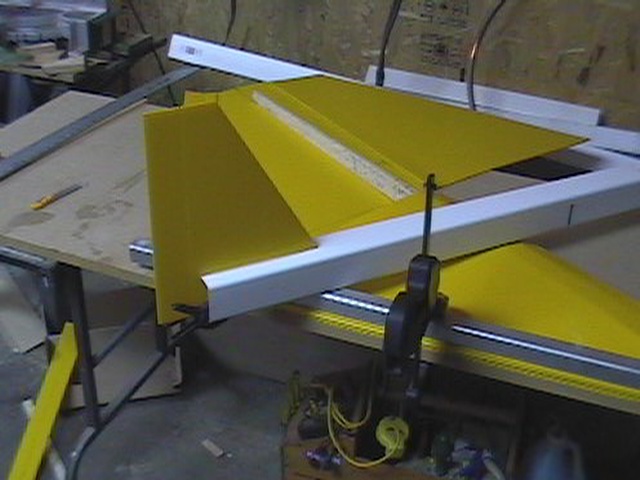

| Glue it into place in the rear slot of the fuselage and we're off. |

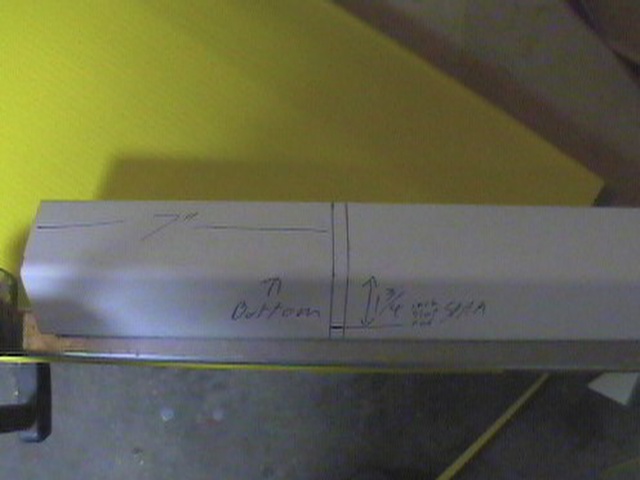

| Mark in 10" (not the 7" in the picture,) from the front of the fuse across the bottom and up both sides. A second line is added to match your spar width and up 1 3/4" for the height of the spar. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| That's it for this section, click back and onto the assembly section for the next portion. Enjoy. |
