Peripheral microcontroller and bus board wdm interfaces
Monday May 5, 2000 09:29

Bus board wdm and dll performance comparisons  Tuesday May 2, 2000 10:15

Bus boards can provide nearly 'real time' operations with windows 3.11, 95, 98, and 2k so long as there either hardware fifo or a microcontroller software buffer.

Windows turns off interrupts with the cli instruction for extended periods at fairly-unpredictable times.

A ring 3 .dll  average interrupt latency of between 50-100 microseconds but occasionally up to 3 milliseconds! is observed running a Pentium 100 MHz, win 3.11 and 95, with an isa bus a/d converter card.

The same isa bus a/d converter card running on a Pentium II 400 MHz, Windows 98, and a wdm show average interrupt latency of only about 18 microseconds!

Both tests are made using a oscilloscope triggering off the rising edge interrupt signal.  Both the dll and wdm write a one to an output port at the start of interrupt service routine and a zero to that port on isr completion.

The .dll isr is written in masm 6.10 [mostly 16-bit instructions].  The about 2,000 line isr did a fair amount of application processing within the isr.  It executed in about 150 microseconds.

The wdm isr is written in C++.  It does very little applications processing but still executes in about 150 microseconds.  C++ may be the cause for the slow execution.

Both the dll and wdm can keep up with a one kilohertz real-time interrupt signal.

Hardware fifo buffering means that if an interrupt is missed, then the processor can recover processing of the missed interrupt without any loss of data.

A hardware counter counts incoming interrupts.  The isr itself counts software interrupts.  Therefore, the isr determines if it has missed any interrupts.

With a wdm practical experience has shown that only 1 or 2 interrupts are missed out of about 58,548.  This is extraordinarily good compared to a dll.

Both operate at one millisecond interrupt rate.

Interrupt Latency under Windows

The delay between the hardware interrupt signal and the execution of its handler is called interrupt latency.

Because of the complicated reflection process involved, latency for protected mode or V86 mode handlers canbe significant — times around 1 ms are not uncommon. To minimize interrupt latency, handling of hardware interrupts should be done in a VxD.

Unfortunately, not even a VxD can guarantee real-time response to an interrupt. There are several factors that make true real-time response impossible under Windows (both 95 and 3.x), including ring transitions and the multiple layers of VMM and VPICD handlers. But the factor that overwhelms all others is the ability of applications to disable processor interrupts. When processor interrupts are disabled, not even a VxD interrupt handler can run.

The VMM allows both DOS and Windows applications (and DLLs) to turn off interrupts. (Refer to the section ‘Trapping Interrupts and Exceptions” in Chapter 3 for more details). Although applications could also turn off interrupts under plain DOS, the consequences are often worse under Windows simply because users typically run multiple applications, and the chances that one application will disable interrupts for a long period are increased.

Karen Hazzah Writing Windows VxDs and Device Drivers http://www.annabooks.com/

VxD performance compared to dll and wdm

For doing individual in and out instructions from a Visual Basic 6.0 application residing in in ring 3 relative dll, wdm, and vxd performance is about 1.2, 1.6, 2.4.  The dll is fastest and the vxd is slowest.

Reason for this is the ring transition for wdm and vxd through DeviceIoControl messages.

Interrupt performance is about on an order of magnitude faster for a vxd or wdm compared to a dll.

Bus board example - both for Windows and Dos   Tuesday May 2, 2000 09:14

Introduction

The MetraBus is a powerful, low-cost, easily expandable data acquisition, control, test, and monitoring solution. Ideal for systems that are too large for standard plug-in board solutions, but price sensitive enough to require board-level pricing. The MetraBus offers a wide variety of analog and digital I/O boards, and is compatible with most common, small computer architectures. The simple and robust MetraBus is extremely flexible and is ideally suited to a huge variety of applications.

The System Concept

The MetraBus concept is simple. Combine your computer, a MetraBus MDB64 series driver board, a cable, and one or more MetraBus I/O boards to form a complete computer-based system. Each MDB64 series driver board will interface to as many as 512 I/O points (up to 256 analog). Additional driver boards allow MetraBus systems with thousands of I/O points.

The MetraBus is an ideal solution in many smaller systems since the I/O boards are external to the computer, and can be installed up to 100 feet from the host computer. This allows your computer to reside in a control room, while the I/O boards are installed close to the actual device(s) being monitored and controlled.

The MetraBus was originally developed by MetraByte Corp. (now Keithley MetraByte). ComputerBoards’ MetraBus boards are new designs, but remain compatible with the original MetraByte system. In fact, you’re free to mix and match boards from both vendors within a system. If you would like to migrate your existing MetraBus system to the PCI, CPCI, or PC/104 bus, our driver boards will do the trick. Keithley MetraBus components arc also supported by ComputerBoards’ Universal Library. You can now create MetraBus systems based on our modern and comprehensive software library.

Computer Interface & Driver Boards

With driver boards for ISA, PCI, cPCI, and PC/104, the MetraBus is compatible with most common computer architectures. The PCI (part number PCI-MDB64) and cPCI (CPCI-MDB64) driver boards are fully plug-and- play and do not require any user hardware configuration. The ISA (ISA- MDB64) and PC/104 (P104-MDB64) driver boards require the user to set a single base address switch. The PCI- and CPCI-MDB64 also provide an on- board crystal controlled counter/timer that can be used to set system update timing, or may be used in watchdog timer implementations. For details on the MetraBus driver boards, please refer to their respective data sheets included later in this catalog section.

I/0 Boards

ComputerBoards’ MetraBus family currently consists of five digital I/O boards and three analog I/O boards. Other boards are in development and are expected to be released during 2000.

If you need to put your system together before our new boards are available, you may mix boards between the two vendors. Choose the Computer- Boards’ MetraBus boards that arc available, and feel free to use Keirhley MetraBus boards for functions we have yet to release.

MetraBus Power Distribution & Cabling

All MetraBus driver boards provide up to I amp of power at +5V. Small systems utilizing the MII-32 (250 mA), MIO-32 (650 mA), and/or MSSR 24 (400 mA) will not require an MBUS-PWR as the system will require less than I amp.

The MBUS-PWR is a 100-watt power supply. It is used to supply power to larger systems. A single MBUS-PWR provides enough power for all but the largest of systems. Additional MBUS-PWR boards may be added in very large systems where required.

The MetraBus cable connects all MetraBus I/O boards to the MDB64 driver board. Cables are in the form M-XX-YY-ZZ where XX is the total cable length in feet, YY is the number of I/O connectors installed and ZZ is the connector spacing in inches. Order custom cables using this numbering scheme, or provide a sketch with your order.

Software

The MetraBus is fully supported by ComputerBoards’ powerful Universal Library software. Universal Library is a full-featured driver that provides high-level intuitive I/O functions that make programming simple. Universal Library support also ensures that the MetraBus system is fully supported by a wide variety of application packages including SoftWIRE, DAS Wizard, HP VEE, HP VEE Lab and Lab VIEW.

For those who choose to write register-level programs, the MetraBus is extremely straightforward. Simply write an I/O board address to the MDB64 driver board base address + 1, then read/write your data from/to the MDB64’s base address +0.

MetraBus Mounting Options

The MetraBus is supported by a wide variety of chassis and mounting options. From 19” racks to NEMA enclosures, from table-top systems to DIN Rail systems the MetraBus offers the rugged, low-cost, easy-to-install and high-density mounting system you need.

• Fully compatible with respective expansion slots
• Controls or monitors up to 512 digital or 256 analog 110 points per ISA slot
• Easy to use
• Fully plug-and-play (PCI & CPCI)
• On-board counter timer for interrupts or watchdog
timer applications (PCI & CPCI)
• High-speed parallel data transfers
• State-machine timing generation
• Low cost
• Drives MetraBus cables as long as 100 feet

The MetraBus driver board is the primary control center of a Metra Bus system. It controls all I/O operations between the computer and MetraBus I/O boards. The board generates all timing and control signals, and controls all system-level data and address transfers. A single MetraBus driver board can address up to 64 MetraBus I/O boards (up to 512 digital or 256 analog 110 points).

The MetraBus driver boards may be installed in any compatible expansion slot. A 50-pin connector extends through the rear of the computer and connects to the MetraBus 50-pin ribbon cable. The MetraBus uses parallel bus architecture with the MetraBus cable carrying all data, address, and control signals.

All ComputerBoards MetraBus driver boards are easy to install. single DIP switch on the ISA and PC/104 versions selects the board base I/O address.

The PCI-MDB64 and CPCI-MDB64 are fully plug-and-play and do not require any user hardware configuration.

Programming ISA-MDB 64 based and PC 104-MDB64 based MetraBus systems is very easy using direct 110 reads and writes, via ComputerBoards’ Universal Library or by using SoftWIRE, DAS Wizard, or a wide variety of third party application software packages

ISA -MDB64 MetraBus Driver Board for ISA Bus Computers PC1O4-MDB64 MetraBus Driver Board for PC/104 Computers PCI-MDB64 MetraBus Driver Board for PCI Bus Computers CPCI-MDB64 MetraBus Driver Board for CompactPCl Comput

BASIC 7  is a DOS-based Microsoft products closely resembling the Visual Basics.

BASIC 7 is used by those using DOS as an embedded operating system.

BASIC 7 runs on DOS system accessing ISA and PC/104 buses.

BASIC 7 has C-like features of permitted extensions of the language by using 'include' files.  Most BASICS have only a fixed set of verbs.

Here's a tutorial on writing custom bus access drivers using the old 16 bit masm 6.10.  Tuesday May 2, 2000 10:45

	Microsoft BASIC 7.0/Assembler
		Cyber Report

Revision	date	                  	author		comment
0	w 2/4/98 8:16 AM   		bill payne	first draft
1	t 5/2/00 9:32 AM		bill payne	edited and  translated to html
		Abstract

One purpose of this cyber report is to document work
done by  Jim and Bill  in ten days beginning
Tuesday  January 20, 1998.   Bill did this so
others will not have to experience  frustrations to do
similar work.  Second purpose is to  compare features
of Microsoft BASIC 7.0 and Visual Basic in their
relations to DOS, Windows 3.xx, Windows 95, and
Windows NT running on the x86 family so as to plan
for implementation strategy for future hardware/software
products.

		History

In 1988 Jim wrote BASIC application code accessing
a Metrabyte a/d board.  Bill  did the assembler interface
code between Microsoft BASIC using  PC/Assembler Forth
assembler.

The Forth assembler produced a .com file.  A .com file has the
stack, data, and code segments the same value and, therefore,
cannot exceed 65,536 bytes in length.

In 1995 Jim and Bill upgraded the software and hardware
to use a ComputerBoards clone of the Metrabyte a/d board and
Visual Basic 3.0 running under Windows 3.11.

Microsoft Assembler,  MASM, was used for the reason that
Windows requires a .dll format link file.

Forth PC/Assembler does not gracefully produce either .exe
or .dll files.

Friday January 16, 1998 late in the evening Jim asked Bill
to be in Pullman to complete a assembler Quick library interface
to Microsoft BASIC 7.0 running under DOS.  Bill had started
the project in Albuquerque that morning but did not have a copy
of BASIC 7.0 and associated libraries or the calling BASIC
application code.

		Microsoft BASIC History

Microsoft’s Bill Gates was the original writer of BASIC
for the IBM PC.

Gates got his start writing a BASIC language/operating
system for MITS Altair microcomputer running an 8080
processor.  Gates did this work in Albuquerque.

Early Microsoft BASICs were interpreted, as opposed to
compiled - native code non-interactive, interactive
systems.

Advantage of fast interactive development of
memory-efficient applications software was offset by slow
execution speed.

Early Microsoft BASICs - there were many variants such
as GW [gee whiz] BASIC, Q Basic, ... - all gave access
to all memory and i/o ports.

BASIC verbs PEEK function and POKE statement allowed
access to memory.

INP function and OUT statement gave access to i/o ports.

“BLOAD and BSAVE are useful for loading and saving
machine language programs. (You may perform machine
language program from with a BASIC program by using
the CALL statement.)  However, BLOAD and BSAVE are
not restricted to machine language programs.  Any segment
may be specified as the target or source for these statements
via the DEF SEG statement.  You have a useful way of saving
and displaying screen images: save from or to load to the
screen buffer.”  IBM  BASIC by Microsoft, 6025013, Second
Edition (May 1982), Version 1.10.

Allowing programmer direct access to hardware can result
in some UNFORTUNATE  hardware/software crashes.

Therefore, Microsoft warned,

“Warning:
BASIC does not do any checking on the address.  That is,
it is possible to BLOAD anywhere in memory.  You should not
BLOAD over BASIC’s stack, BASIC’s variable area, or your
BASIC program.”

DEF SEG is a statement designed to set the data segment
register, ds, in an x86 microprocessor.

The x86 family, which includes Pentiums, Pentium Pros, ...
have 3 essential segment registers.  Code, cs; stack, ss, and
data, ds, segments plus an extra segment, es, on the original
8088 processor.  ‘386 and above have several more segment
register.

Purpose of a segment register is to expand address from 16
bits to 20 bits.

A 16 bit offset is added to the value of a 16 bit segment register
shifted 4 bits to the left to compute an effective address.

Here is an example in hexadecimal

	segment 1234
	offset      5678

Computations are

              12340
                5678
              179B8

Hexadecimal B [ 0 1 2 3 4 5 6 7 8 9 A B C D E F] is decimal 11.

VARPTR “Returns the address in memory of the variable or file
control block.

VARPTR is used to get the offset of a variable relative to the data
segment.

DEF USR [n] = offset statement “Specifies the starting address of a
machine language subroutine, which is latter called by the USR
function.

USR function has the format v = USR[n](arg)  where

  n     is in the range 0 to 9 and corresponds to the digit supplied
         with the DEF USR statement for the desired routine (see “DEF
         USR Statement” in the chapter).  If n is omitted, USR0 is
         assumed.
  arg  is any numeric expresiion or string variable, which will be
         the argument to the machine language subroutine.

Corresponding to the FUNCTION subroutine, the CALL statement
“Calls a machine language subroutine.

CALL format is

  CALL numvar [(variable,[variable]...)]

  Example :  100 DEF SEG = &H8000
	      110 OZ = 0
	      120 CALL OZ(A,B$,C)

  	      Line 100 set the segment to location hex 80000. OZ
                    is set to zero so that the call to OZ will execute the
                    subroutine at location hex 80000.  The variables A,
                    B$, and C are passed as arguments to the machine
                    language subroutine.

Summarizing, early BASICs provided the programmer methods for

1 accessing ANY memory location [PEEK and POKE]
or any port [INP and OUT]

2  calling a machine language subprograms
    (CALL and DEF SEG) or function subprograms
     (VARPTR, DEF USR  and USR)

Early BASICs have evolved incorporating features found in
lanaguages such a FORTRAN and C.

Modern BASICs can call subroutines written in other languages
or have other language call BASIC subroutines.

BASIC 7.0 runs in both an interpreted [QBX] and compiled [BC]
environments.

VISUAL BASIC runs only in a compiled mode.

BASIC 7.0 incorporates the early BASIC statements or functions
which permit direct memory,   i/o, and machine language calls.

But is somewhat a different format.

Here are the BASIC 7.0 early BASIC computability features copied
from the resident HELP files in the QBX interactive BASIC 7.0
development environment.

DEF SEG [=address]

 address   The segment to be used by another statement or function.
                The address is a numeric expression with an unsigned integer
                value between 0 and 65,535, inclusive. If address is omitted,
                DGROUP is used.

 See Also     SSEG      VARSEG

PEEK(address)

 address     The offset from the current default segment (as set by
                  the DEF SEG statement). The value of address is between
                  0 and 65,535, inclusive.

Returns
    The byte stored at a specified memory location. The returned value
    is an integer between 0 and 255, inclusive.

See Also     DEF SEG      POKE      VARPTR$      VARPTR, VARSEG
             SSEG         SADD      SSEGADD

POKE address, byte%

  address    An offset into the memory segment specified by the
                 current default segment (as set by the DEF SEG statement).
                 The value of address is between 0 and 65,535, inclusive.
  byte%      The data byte to be written into the memory location.
                 The byte% argument is an integer value between 0 and 255,
                 inclusive.

See Also     DEF SEG      PEEK      VARPTR$      VARPTR, VARSEG
             SSEG         SADD      SSEGADD

VARPTR$(variablename)

   variablename    The name of a variable in the program.

Returns
    A string representation of a variable's address for use in DRAW and
    PLAY statements.

See Also     VARPTR, VARSEG     DRAW     PLAY (Music)

VARPTR(variablename)
VARSEG(variablename)

   variablename    Any BASIC variable, including a record variable
                      or record element.
Returns
    Variable type  VARSEG returns                VARPTR returns

     Numeric      Segment address of variable  Offset address of variable
     String          Segment address of string     Offset address of string
                        descriptor descriptor
    Name not     Segment address of new         Offset address of new
     previously   variable (VARSEG also          variable (VARPTR also
     defined        creates the new variable)        creates the new variable)

See Also     VARPTR$      DEF SEG      PEEK      POKE      SADD
             SSEGADD
BLOAD filespec$[,offset%]

    filespec$    The file or device from which to load a memory-image file.
    offset%      The offset of the address where loading is to start.

See Also     BSAVE      DEF SEG
BSAVE filespec$, offset%, length%

    filespec$    The file or device on which to save a memory-image file.
    offset%      The offset of the starting address of the area in memory
                      to be saved.
    length%     The number of bytes to save. This is a numeric
                      expression that returns an unsigned integer between
                      0 and 65,535, inclusive.

See Also     DEF SEG      BLOAD

CALL Absolute ([argumentlist,] integervariable%)

 argumentlist       Arguments passed to a machine-language
                            procedure as offsets (near pointers) from the
                             current data segment.
  integervariable%   The offset from the current code segment, set
                                by DEF SEG, to the starting location of the
                                 procedure.

See Also     CALL, CALLS (Non-BASIC)  for a simpler way to call
            assembly language procedures from BASIC.

CALL name [(call-argumentlist)]
name [call-argumentlist]
CALLS name [(calls-argumentlist)]

    name                 The name of the non-BASIC procedure being called.
    call-argumentlist    The variables, arrays, or expressions passed to
                           the procedure. For syntax, see Details.
    calls-argumentlist   The variables or expressions CALLS passes to the
                           procedure. For syntax, see Details.

    Use the CALL and CALLS syntax described above for invoking non-BASIC
     procedures. To invoke a BASIC procedure, see  CALL (BASIC) .

See Also     DECLARE (Non-BASIC)

DEF USR and USR are replaced with the DECLARE
both in BASIC 7.0 and Visual BASIC.

DECLARE FUNCTION name [CDECL] [ALIAS "aliasname"] [([parameterlist])]
DECLARE SUB name [CDECL] [ALIAS "aliasname"] [([parameterlist])]

    FUNCTION         The external procedure returns a value and can
                                 be used in an expression.
    SUB              The external procedure is invoked like a BASIC SUB.
    name             The name used to invoke the procedure.
    CDECL         The procedure uses the C-language argument order
                          and naming conventions (see Details).
    ALIAS           The procedure being called has another name in
                           the .OBJ or library file.
    aliasname       The name the procedure has in the file or library.
    parameterlist  The parameters to be passed to the invoked
                           procedure (see Details).

See Also     CALL, CALLS (Non-BASIC)

VISUAL BASIC omits ALL OF THE ABOVE memory and i/o access
verbs.  But does include the DECLARE.

Microsoft’s products MASM [ML], LINK [LINK]  and LIB [LIB] are used
to assemble, create a subprogram library, then link assembler programs
which perform memory and i/o access together in a run-time package
for compiled BASIC 7.0 [BC].

Or a run-time linked Quick library is created for interpreted BASIC 7.0 [QBX].

BLOAD and BSAVE of .com machine instructions is, perhaps wisely, being
discouraged with BASIC 7.0 and VISUAL BASIC.

But at least the programmer knew where in memory the code was loaded.

With LINK and hidden associated loader the programmer has a tough, if not
impossible time knowing, in advance, where code is loaded into memory.

An .exe file has three specified segments.  Code, Data, and Stack.

Basic programmers may wish to access data from BASIC 7.0 within an
assembler program using PEEK and POKE..

Since LINK loaded the code, the programmer does not know the value
of the assembler data segment since BASIC 7.0 has its own data segment
which may be separate from the assembler data segment.

Perhaps the best way for a BASIC 7.0 program to learn about where
LINK put the assembler data statement is to write an assembler program
which returns the value in a function of its data segment.

In the world of VISUAL BASIC .dll’s it is  often TOUGH to find out
which .dll one is accessing   Therefore, a .dll or library module should
pass back  identification and revision  information to the calling program.

;* DEF SEG added February 3, 1998
;* bill payne
;*________________________________

.MODEL	medium, basic, farstack

;* use 486 instructions

.486
;* Equates

;*_______________________________

.DATA

TaskHead		dw 1234h
;*-----------------------------------------------------------------------
;* RevSym contains the source file name, revision symbol, time, day, date,
;* and	other information.

LengthRevSym	 dw offset EndRevSym - offset RevSym - 1
RevSym		 db "File vit4.asm  Rev 0"
		 dw 0a0dh
		 db "Wednesday February 4, 1998 13:030"
EndRevSym	 db 0

;*-----------------------------------------------------------------------

.STACK

.CODE
nothing 	PROC NEAR uses bx cx
		ret
nothing 	ENDP

;*  End of non-exported procedures
;*  ______________________________


;* Exported library routines
;* --------------------------

;* Rev returns the revision history of this source module into a
;* Visual Basic or BASIC 7.0 string. The string should be declared, say,
;* Revsym As String * 255 to allot the maximum length in VB.
;* If the VB string is not long enough, then Rev could write over
;* the VB variable table.

;* Basic declare:  DECLARE SUB VitRev (BYVAL segoff AS LONG)
;* call from Basic CALL VitRev(SSEGADD(REV$))

Rev		PROTO	FAR,		       StringDescriptor:dword
Rev		PROC	FAR PUBLIC uses si di ds es, StringDescriptor:dword
		assume	ds:_DATA	    ; .DATA is used for data segment
		mov ax, SEG _DATA	    ; establish ds addressability
		mov ds, ax
		les di, StringDescriptor ; get pointer to start of string in VB
		dec di			    ; point to length in basic
		dec di
		lea si, LengthRevSym	    ; get offset ofRevSym into si
		mov cx, offset EndRevSym - offset RevSym + 2 ; get length of message in cx
		cld			    ; make sure move is low to high
		rep movsb		    ; move RevSym into VB
		ret
Rev		ENDP

DefSeg	     PROC FAR PUBLIC uses dx
	     assume  ds:_DATA ; .DATA is used for data segment
	     mov ax, SEG _DATA	; establish ds addressability
	     ret
DefSeg	     ENDP

	     END Rev

The instruction

             ax, SEG _DATA	; establish ds addressability

is a Microsoft invention.  .DATA directive defines a data segment
named _DATA.  If this is not done, then there is no way for the
assembler code to know where its own data segment is located!

This is particularly important with the assembler is called from
BASIC7.0 which has its own data segment value in ds.

The assembler directive SEG causes ML/LINK to insert the address
of a location holding the value of the data segment into the generated
code.

The program was assembled with MASM 6.1 from the
Programmer’s Workbench.  Then the text following the
C:\bc7> prompt starting with ‘lib’ was typed

C:\bc7>lib qbx.lib+vit4.obj,w.lst,w.lib

 Microsoft ® Library Manager  Version 3.16
 Copyright (C) Microsoft Corp 1983-1989. All rights reserved.

LIB performed its job.  HOPEFULLY.  Error messages from
both LIB and LINK can be, usually, very obscure.  Then came
back with

 C:\bc7>

One of many of the outputs of MASM61 is a .obj file.  Since
the name of the assembler file is  vit4.asm, the object output file
is named vit.obj.

.obj files are used as inputs to the linker.

qbx.lib is one a fundamental library supplied with BASIC7.0

qbx.lib+vit4.obj is the syntax for adding vit4.obj to qbx.lib.

Output of  LIB are listing file w.lst and an updated library w.lib

Next step to produce a run-time Quick library for use with
BASIC7.0 interpreter is to run LINK.

C:\bc7>link /q w.lib,,,qbxqlb;

Microsoft ®  Segmented-Executable Linker  Version 5.05
Copyright (C) Microsoft Corp 1984-1989.  All rights reserved.

LINK:  warning L4045: name of output file is ‘w.qlb’

C:\bc7>

The ,,, is a short-cut to let LINK fill in file names, w.map, and w.qlb.

qbxqlb with extension qlb implied is a BASIC7.0 system Quick library
which the assembler code is added to.

The .lst file from the assembler is

Microsoft (R) Macro Assembler Version 6.10 		    02/04/98 14:34:15
VIT4.ASM						     Page 1 - 1


				     ;* DEF SEG added February 3, 1998
				     ;* bill payne
				     ;*________________________________

				     .MODEL	medium, basic, farstack

				     ;* use 486 instructions

				     .486
				     ;* Equates

				     ;*_______________________________

 0000				     .DATA

 0000 1234			     TaskHead		dw 1234h
				     ;*-----------------------------------------------------------------------
				     ;* RevSym contains the source file name, revision symbol, time, day,
date,
				     ;* and	other information.

 0002 0036			     LengthRevSym dw offset EndRevSym - offset RevSym - 1
 0004 46 69 6C 65 20 76 69 74	     RevSym	  db "File vit4.asm  Rev 0"
	    34 2E 61 73 6D 20
	    20 52 65 76 20 30
 0018  0A0D			     		   dw 0a0dh
 001A  57 65 64 6E 65 73 64 61	     		   db "Wednesday February 4, 1998 13:030"
	    79 20 46 65 62 72
	    75 61 72 79 20 34
	    2C 20 31 39 39 38
	    20 31 33 3A 30 33
	    30
 003B 00			     EndRevSym	 db 0

				     ;*-----------------------------------------------------------------------

				     .STACK

 0000				     .CODE
 0000				     nothing 	PROC NEAR uses bx cx
 0000   1   53			*	 push	bx
 0001   1   51			*	 push	cx
				     		ret
 0002   1   59			*	 pop	cx
 0003   1   5B			*	 pop	bx
 0004   5   C3			*	 ret	00000h
 0005				     nothing 	ENDP

				     ;*  End of non-exported procedures
				     ;*  ______________________________


				     ;* Exported library routines
				     ;* --------------------------

				     ;* Rev returns the revision history of this source module into a
				     ;* Visual Basic or BASIC 7.0 string. The string should be declared, say,
				     ;* Revsym As String * 255 to allot the maximum length in VB.
				     ;* If the VB string is not long enough, then Rev could write over
				     ;* the VB variable table.

				     ;* Basic declare:  DECLARE SUB VitRev (BYVAL segoff AS LONG)
				     ;* call from Basic CALL VitRev(SSEGADD(REV$))

				     Rev		PROTO	FAR,		       StringDescriptor:dword
 0005				     Rev		PROC	FAR PUBLIC uses si di ds es,
StringDescriptor:dword
				     		assume	ds:_DATA	    ; .DATA is used for data
segment
 0005   1   55			*	 push	bp
 0006   1   8B EC		       	*	 mov	bp, sp
 0008   1   56			*	 push	si
 0009   1   57			*	 push	di
 000A   3   1E			*	 push	ds
 000B   3   06			*	 push	es
 000C   1   B8 ---- R		     		mov ax, SEG _DATA	    ; establish ds addressability
 000F   3p  8E D8		     		mov ds, ax
 0011   6p  C4 7E 06		     		les di, StringDescriptor ; get pointer to start of string in
VB
 0014   1   4F			     		dec di			    ; point to length in basic
 0015   1   4F			     		dec di
 0016   1+  8D 36 0002 R	     		   	lea si, LengthRevSym	    ; get offset ofRevSym into si
 001A   1   B9 0039		     		mov cx, offset EndRevSym - offset RevSym + 2 ; get
length of message in cx
 001D   2   FC			     		cld			    ; make sure move is low to
high
 001E   7n  F3/ A4		     		rep movsb		    ; move RevSym into VB
				     		ret
 0020   3p  07			*	 pop	es
 0021   3p  1F			*	 pop	ds
 0022   1   5F			*	 pop	di
 0023   1   5E			*	 pop	si
 0024   1   5D			*	 pop	bp
 0025   5   CA 0004		*	 ret	00004h
 0028				     Rev		ENDP

 0028				     DefSeg	     PROC FAR PUBLIC uses dx
				     	     assume  ds:_DATA ; .DATA is used for data segment
 0028   1   52			*	 push	dx
 0029   1   B8 ---- R		     	 mov ax, SEG _DATA	; establish ds addressability
				     	 ret
 002C   1   5A			*	 pop	dx
 002D   5   CB			*	 ret	00000h
 002E				     DefSeg	     ENDP

				     	     END Rev

Microsoft (R) Macro Assembler Version 6.10 		    02/04/98 14:34:15
VIT4.ASM						     Symbols 2 - 1




Segments and Groups:

                N a m e                 Size     Length   Align   Combine Class

DGROUP . . . . . . . . . . . . . . . .	GROUP
_DATA  . . . . . . . . . . . . . . . .	16 Bit	 003C	  Word	  Public  'DATA'
STACK  . . . . . . . . . . . . . . . .	16 Bit	 0400	  Para	  Stack	  'STACK'
VIT4_TEXT  . . . . . . . . . . . . . .	16 Bit	 002E	  Word	  Public  'CODE'


Procedures,  parameters and locals:

                N a m e                 Type     Value    Attr

DefSeg . . . . . . . . . . . . . . . .	P Far	 0028	  VIT4_TEXT	Length= 0006 Public BASIC
Rev  . . . . . . . . . . . . . . . . .	P Far	 0005	  VIT4_TEXT	Length= 0023 Public BASIC
  StringDescriptor . . . . . . . . . .	DWord	 bp + 0006
nothing  . . . . . . . . . . . . . . .	P Near	 0000	  VIT4_TEXT	Length= 0005 Public BASIC


Symbols:

                N a m e                 Type     Value    Attr

@CodeSize  . . . . . . . . . . . . . .	Number	 0001h
@DataSize  . . . . . . . . . . . . . .	Number	 0000h
@Interface . . . . . . . . . . . . . .	Number	 0006h
@Model . . . . . . . . . . . . . . . .	Number	 0004h
@code  . . . . . . . . . . . . . . . .	Text   	 VIT4_TEXT
@data  . . . . . . . . . . . . . . . .	Text   	 DGROUP
@fardata?  . . . . . . . . . . . . . .	Text   	 FAR_BSS
@fardata . . . . . . . . . . . . . . .	Text   	 FAR_DATA
@stack . . . . . . . . . . . . . . . .	Text   	 STACK
EndRevSym  . . . . . . . . . . . . . .	Byte	 003B	  _DATA
LengthRevSym . . . . . . . . . . . . .	Word	 0002	  _DATA
RevSym . . . . . . . . . . . . . . . .	Byte	 0004	  _DATA
TaskHead . . . . . . . . . . . . . . .	Word	 0000	  _DATA

	   0 Warnings
	   0 Errors

The * by some instruction indicate instruction generated from macro
expansions.

The variable TaskHead was assigned the value hexadecimal 1234 so
it can be easily identified from the calling BASIC7.0 program.

w.lst is

ABSOLUTE..........absolute          DEFSEG............vit4
INT86OLD..........int86old            INT86XOLD.........int86old
INTERRUPT.........intrpt               INTERRUPTX........intrpt
NOTHING...........vit4                   REV...............vit4


absolute          Offset: 00000010H  Code and data size: cH
  ABSOLUTE

intrpt            Offset: 000000f0H  Code and data size: 111H
  INTERRUPT         INTERRUPTX

int86old          Offset: 000002d0H  Code and data size: 11eH
  INT86OLD          INT86XOLD

vit4              Offset: 000004c0H  Code and data size: 46aH
  DEFSEG            NOTHING           REV

DEFSE, NOTHING and REV are, of course, in the assembler.

NOTHING will not be recognized since it is not declared as a
far public procedure.

w.map is

Start  Stop   Length Name                   Class
 00000H 0000BH 0000CH ABSOLUTE_TEXT          CODE
 0000CH 0011CH 00111H INTRPT_TEXT           	 CODE
 0011EH 0023BH 0011EH INT86OLD_TEXT          	CODE
 0023CH 00269H 0002EH VIT4_TEXT              	CODE
 00270H 0053EH 002CFH _TEXT                  	CODE
 0053FH 00F48H 00A0AH XMSSEG                 	XMSSEG
 00F50H 00F50H 00000H FAR_DATA               	FAR_DATA
 00F50H 00F50H 00000H FAR_BSS                	FAR_BSS
 00F50H 04071H 03122H NULL                   	BEGDATA
 04072H 040F3H 00082H _DATA                  	DATA
 040F4H 04101H 0000EH CDATA                 	DATA
 04102H 04102H 00000H XIB                   	 	DATA
 04102H 04102H 00000H XI                     		DATA
 04102H 04102H 00000H XIE                    		DATA
 04102H 04102H 00000H XPB                    		DATA
 04102H 04102H 00000H XP                     		DATA
 04102H 04102H 00000H XPE                    		DATA
 04102H 04102H 00000H XCB                    	DATA
 04102H 04102H 00000H XC                     		DATA
 04102H 04102H 00000H XCE                    	DATA
 04102H 0410DH 0000CH DBDATA                 	DATA
 0410EH 0412BH 0001EH _BSS                   	DATA
 0412CH 0412CH 00000H BC_SAB                 	BC_SEGS
 0412CH 0412FH 00004H BC_SA                  	BC_SEGS
 04130H 04135H 00006H NMALLOC                	BC_VARS
 04136H 04136H 00000H ENMALLOC               	BC_VARS
 04136H 04136H 00000H _BSS                   	BSS
 04136H 04136H 00000H XOB                    	BSS
 04136H 04136H 00000H XO                     		BSS
 04136H 04136H 00000H XOE                    	BSS
 04140H 0453FH 00400H STACK                  	STACK
 04540H 04DC5H 00886H SYMBOL

 Origin   Group
 00F5:0   DGROUP

Program entry point at 0454:0000

VIT4_TEXT identifies the assembler code.

BASIC7.0 interpreter is invoked with

C:\bc7\qbx /l w

The /l tells BASIC7.0 that Quick library w.qlb is to be
linked

The BASIC7.0 program uses the DECLARE to inform BASIC
that Rev and DefSeg are external procedures.

DECLARE SUB Rev (BYVAL segoffset AS LONG) ' external sub declare
DECLARE FUNCTION DefSeg%                  ' external function declare
s$ = "make some room of the revision information to be passed back to basic"
x$ = "out.txt" 'declare an output file so import into cyber report
CLS ' clear the screen
CALL Rev(SSEGADD(s$)) 'call for revsion information
OPEN x$ FOR OUTPUT AS #1 ' open report file
PRINT #1, s$  ' print revison information
PRINT #1, "Segment address "; HEX$(DefSeg) ' invoke and print assembler ds value

DEF SEG = DefSeg ' information basic of assembler's segment register value

FOR i% = 0 TO 100
PRINT #1, HEX$(PEEK(i%)); " "; ' dump 100 bytes of assembler data segment
NEXT i%
CLOSE #1 ' close output file
DEF SEG 'restore basic's segment value

When the program is run using a mouse or F5 the following information is
printed to file out.txt

File vit4.asm  Rev 0
Wednesday February 4, 1998 13:03
Segment address 5334
D0 F7 34 12 36 0 46 69 6C 65 20 76 69 74 34 2E 61 73 6D 20 20 52 65 76 20 30 D A 57 65 64 6E 65 73 64
61 79 20 46 65 62 72 75 61 72 79 20 34 2C 20 31 39 39 38 20 31 33 3A 30 33 30 0 1E 1 D1 9E 16 1 D1 9E
5A 0 D1 9E 1 0 0 0 3 0 58 4F 42 3 0 58 4F 45 3 0 58 50 42 3 0 58 50 45 3 0 58

The Revision symbol information is printed to the file.

Basic segment:offset passed to the assembler points to the
first character in the BASIC string.  The count word is
stored two bytes ahead.  Therefore, Rev had to decrement the
destination pointer so as to pass the updated string count back
to BASIC.

The assembler data segment value is hex 5334.

x86 family stores bytes in “little endian” - as opposed to
“big endian” format. This is also called ‘byte swapped’ format.

The 34 12 is TaskHead in the assembler.  0036 is LengthRevSym.

The revision information follows LengthRevSym.

Exact location of the data segment within assembler takes
some experimentation.

While the segment address is 5543h,  TaskHead begin at offset 2.

But this mixed-language BASIC7.0 program passed a string
back to BASIC from assembler and BASIC located the data
segment within the assembler program.

		VISUAL BASIC

Writing mixed-language VISUAL BASIC and assembler
programs is somewhat different than DOS-based BASIC7.0
programs.

Important is the code is in .dll files not a .qlb [QBX] or .lib [BC] file.

Also VISUAL BASIC subroutine linkage conventions are completely
different.

		WINDOWS 3.xx, 95, and NT

BASIC can move variable around in memory at run time.

Therefore, if an assembler program is passed a segment:offset of
a variable data [as opposed to BASIC variable table pointer],
the address MAY  change during VISUAL BASIC execution.

Declaration of STATIC can help with this.

Assembler subprogram written for VISUAL BASIC worked
unchanged, in many environments, in both Windows 3.xx and 95.

Windows NT is well-described by Kim Komando in the article quote
here from the Albuquerque Journal, Tuesday July 15, 1997.



Consider all system variables

Windows 95 and Windows NT perform same basic functions, with

a few significant differences

[A] strong case exists to use either Windows 95 or Windows 4.0

[NT stands for “new technology”). Windows NT is Windows 95

with additional system stability, salability and security features

not found in Windows 95.

The extras do not mean though that NT is also short for “near

technology.” Hardware compatibility and software issues are

prevalent using Windows NT and that’s about to change with

a new release of Windows NT rumored to hit the streets in the

first quarter of 1998. ...

Windows NT is a secure system, allowing users and administrators

complete control of system files and resources. Almost anything

associated with a Windows NT machine can be locked or

restricted in some way. The security in Windows 95 is, well,

lame.

Power users love Windows NT. You can have multiple processors

in an NT machine, succumb to fewer system crashes than with

Windows 95 and get faster performance than you get with Windows

95.

The main objection to using Windows NT has been that you need

to have some Windows experience to avoid getting a migraine while

using it. For starters, Windows NT does not support Plug and Play

and Windows 95 does. Plug and Play automates the installation of

new hardware and sets up software so that the hardware works

properly.

When you install a new hardware add-on, such as a modem or sound

card, Windows 95 will do its very best to make sure that it works. It’s

pretty rare when Plug and Play turns into Plug and Pray.

Windows NT users have no such luck. They may find themselves

with IRQs, DMAs, memory ranges and other sticky configuration

issues when installing new hardware. I still have nightmares about

configuring one of my Pcs that runs Windows NT.

If you still use old DOS games or Windows 16-bit programs, forget

Windows NT. You’ll need Windows 95 because for the most part,

Windows NT can’t run older programs.

Some multimedia titles, games and memory management programs

use virtual device drivers (VxDs). VxDs work like other device

drivers, that is, they act like a middleman between the operating system

or application software and the hardware.

Windows NT doesn’t support VxDs but Windows 95 still does. To

be sure that your software will work with Windows NT, check

Microsoft’s Web site for details

(http://www/microsoft.com/noworstation/Partners.htm).

Old and rare hardware causes a problem for Windows NT that

Windows 95 sails through. Windows 95 supports about 1,000 more

hardware device drivers than Windows NT. You need drivers for

a printer, CD-ROM drive, video card and so on. For a list of

hardware tested on Windows NT, go to

http://www.microsoft.com/hwtest.

Portable and notebook computer users should stick with Windows 95.

Windows NT lacks power management feature and is really weak of

PC card support.

The desktop operating system line is about to become blurrier

shortly. The upcoming release of Windows NT 5.0 appears to be getting

the boost it need to make more Windows 95 users take notice.

The real issue is which operating system to pick. Windows 95 and

its upgrade will still be geared toward individual home users and

Windows NT and it kin for power users. If you’ve been eyeing

Windows NT and have legacy hardware, old software or use a notebook

PC, wait until version 5.0 becomes available.

Copyright 1997, The Kommando Corp. You can visit on the Internet at http://komando.com or e-mail her at [email protected]. BASIC7.0 and MASM61 are both DOS-based applications. Therefore, presumably will not work under Windows NT. BASIC7.0 will NOT WORK under 95 using the short-cut invocation of the DOS prompt. The DOD prompt must be selected from the Start icon. In systems where I/O protection is used , access to I/O instruction is controlled by the IOPL field in the EFLAGS register. This permits the operating system to adjust the privilege level needed to perform I/O. In a typical protection ring model, privilege levels 0 and 1 have access to the I/O instructions. The lets the operating system and the device drivers perform I/O, but keeps applications and less privileged device driver from accessing the I/O address space. Applications access I/O through the operating system. The following instruction can be executed on if CPL <= IOPL:
IN - Input INS - Input string
OUT - Output OUTS - Output string
CLI - Clear Interrupt-Enable Flag
STI - Set Interrupt-Enable Flag
Pentium Processor User’s Manual
Volume 3: Architecture and Programming Manual
Intel Order Number: 241430-001

While Payne has not personally verified that Windows NT blocks
the above instructions in applications, Payne understands this
to be true. Hardware which interfaces through more-or-less
standard ports such as the ieee 1284 ecp bi-direction parallel
port, universal serial bus, or a SCSI port has a fair chance
of working with Windows NT. Other custom hardware interfaces
have a relative slim chance of successfully interfacing to
Windows NT. But will easily interface to Windows 3.xx or 95.
And even DOS.
End of cyber report

Update on using in or out on win 2000
Tuesday May 2, 2000 10:11

Windows 2000 immediately closes an application window with no error messages or any warning when an in or out is executed in ring 3.

In a win 2k wdm in or out attempted execution results in a 'blue screen' crash and a subsequent dump of memeory to disk if Numega's SoftIce is installed.

win2k wdms apparently don't reside at ring 0!

High-speed physical layer chips communicate with link layer chips.

Physical layer chips handle only the physical communication through cables.

Link layer chips buffer characters, handle hardware protocol, and may check data integrity. Revsion 1 Friday April 21, 2000 09:29 0 Tuesday April 18, 2000 10:02

Let's call this Method A for connecting to external peripherals.

While A requires software driver development at both the peripheral and PC ends, A appears to ideal for large volume applications.

Standard protocols such as the ieee 802.x means that perhipherals can be connected by simple cables too all sorts of computing equipment.


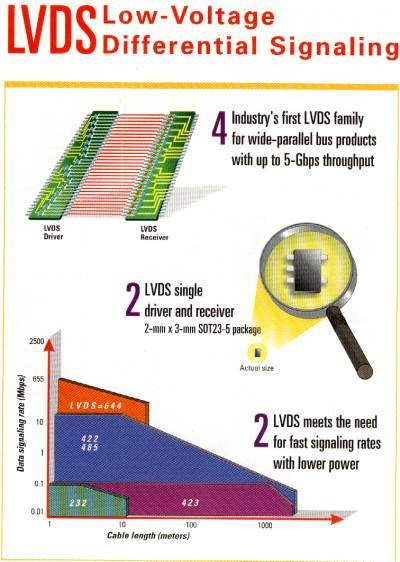

Texas Instruments http://www.ti.com/sc/sineon

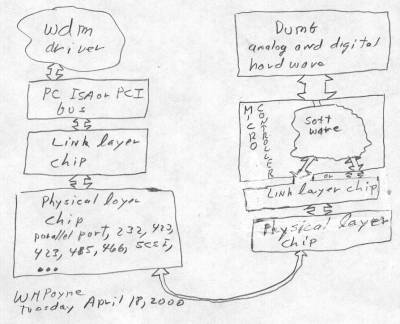

A Windows 98/2000 wdm driver communicates with a link layer chip on a PC bus board.  The link layer chip communicates with physical driver chips such as a TI LVDS chip.

In the case of the PC parallel port and two serial ports, communications is usually with a 'super i/o' chip which contains these ports as as well as a floppy disk controller.

SMC http://www.smsc.com/ or Winbond http://www.winbond.com.tw/ super i/o chips are frequently used in PCs.

On the peripheral side a microcontroller is frequently connected to 'dumb' hardware.

The microcontroller is connected to, or has as a part of it in silicon, the link layer chip.  The 80C51 or C32 core is popular to add link layer silicon.  This is why two different connections - one an internal connection and the second an external chip are shown in the above figure.

Software controls the 'intelligence' on the peripheral system.

This arrangement allows downloading peripheral microcontroller software from a PC and, of course, over internet.

Source code software can be downloaded and debugged if the microcontroller hosts its own interactive operating system with compiler and assembler.

Bus board wdm drivers Revsion 1 Friday April 21, 2000 09:10  0  Thursday April 20, 2000 10:17

Let's call this Method B for connecting to external peripherals.

While B has some very positive advantages for low-volume applications, it has some horrible disadvantages for high-volume applications.

Disadvantages include

1  Old boards may not work in new PCs!
2  Old PC not available to host old boards!
3  Boards become unavailable, replaced by new boards.  Both the boards, maybe the PC, and the software must be changed!
4 Connector to the new boards are different than those used with the old boards so custom hardware interface must be redesigned and remanufactured!!!
5 One ends up supporting about as many different systems as there are in the field!


Bus board cards offers an advantage that no external microcontroller is required to connect 'dumb' analog and digital hardware to a PC.

Three main companies which manufacture PC cards for this approach are

1  National Instruments  http://www.ni.com/
2  Keithley Metrabyte http://www.keithley.com/
3  ComputerBoards http://www.computerboards.com/

Links to other manufacturers  are found at http://www.cts.com/king/lip/html/input-output_cards.html

While these boards may have been conceived for laboratory use, they have found their way into industrial production applications.

The advantage to this approach is that all of the software is inside the PC.  There is no external microcontroller software to worry about.

But there are two downsides to this approach.

1  Having all of the software on the PC side can lead to one big program rather than two or more small programs.

Since number of bugs increases either geometrically or even exponentially with the size of  a program. Software bug trouble with a big program might be expected.

2  All Windows operating systems disables interrupts for long times at apparent random times.

Up to 3 milliseconds has been observed with a logic analyzer.

Therefore, hardware input buffering of data, usually using a FIFO, is require so as to not miss interrupt data.

A microcontroller, on the other hand, can buffer data to be sent to a PC in software.

Large number of digital inputs or output are frequently handled with a 82C55 24 bit parallel i/o chip.

Here's what ComputerBoards says about this.

Providing 24 bits of parallel digital I/O through the 40-pin auxiliary connector, this port is pin-compatible with ComputerBoards’ popular DIO-24 series boards. The digital I/O is provided in the form of two 8-bit ports, and two 4-bit ports—each port may be set independently as input or output.

This digital capability is based on the popular 82C55 interface chip. Output drive capability is 2.5 mA at 0.5 Vmax or 2.5 mA at 2.0 Vmin. This provides enough drive for many common interface requirements. All ports default to the input state on power up/reset.

Cable distance from the PC is somewhat limited with this approach compared to the microcontroller interface.

But these systems do work, have many advantages, and Computer Systems Documentation writes, debugs and documents both wdm and dll drivers for these boards.


Hosted by www.Geocities.ws

1
