LTE lite



This page has some information on upgrades.



The largest Hard Drive that the laptop supports in the bios is 650MB, this capacity is to small by todays standards. My laptop is using a 1.4 Gig IBM Travelstar Hard Drive. To use this size or larger, I used MAXTOR MAX BLAST PLUS which I got from when I bought one of their PC Hard Drives. The program installed an EZ BIOS so that hard drive could be used with out being identified by the laptops own bios. You can download MAXTOR MAX BLAST PLUS at the their website.

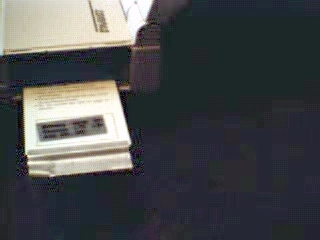

A few people who have just picked up a LTE Lite ask were and how much memory can they add to the little laptop. There are two types that are used. The difference between the two is that one is 16bit for the 386 processor and the other is 32bit for the 486 prosessors. You can fit up to 16MB of ram to make the maximum of 20MB as the motherboard has 4MB already mounted to it. They both take the form of PCMCIA type 1 cards.

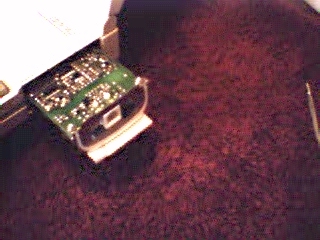

The little laptop can accept a modem which has to be specially made as it does not accept PCMCIA type 2/3 modems. I my self have only been able to get hold of a 9.6kbps modem which is far to slow for a reliable internet conection. The fastest internal modem made for this laptop is a 14.4kbps which should be more reliable but still very slow. You can of course fit an external serial modem ( NOT USB ) but you will need to plug in an external power supply.



WARNING

I HAVE NO WAY OF CHECKING IF THE FOLLOWING INFORMATION IS CORRECT.



This is a list of internal modems which I believe are compatible at this time.



ANGIA 9600 data, 9600 fax. PRODUCT NUMBER ANGCPQ9696

APEX 14.4 data, 14.4 fax. PRODUCT NUMBER CQC-1414

COMPAQ Speedpaq 14.4 fax modem, MNP-10, cellullar ready. PRODUCT NUMBER 135665-001 or 141959-001

COMPAQ Enhanced 14.4 fax modem for Lite & Contura series notebooks. PRODUCT NUMBER 125901-003

COMPAQ 9600data, V.32 modem, 14.4 fax modem. PRODUCT NUMBER 125925-001

COMPAQ 2400 data, 9600 fax. PRODUCT NUMBER 137103-001

COMPAQ 2400 data modem for LTE Lite 386/20, port 486. PRODUCT NUMBER 121250-001

DATARACE Redimodem for LTE Lite 14.4 data/fax, cellullar ready. PRODUCT NUMBER CML-1496

MEGAHERTZ 14.4 data, 14.4 fax. PRODUCT NUMBER C5144

MEGAHERTZ 9600 data, 9600 fax. PRODUCT NUMBER C596FM

PIICEON 14.4 data, 14.4 fax. PRODUCT NUMBER 805-1440





Double check before you buy a modem as I can not check if the list is correct.
