This is my attempt to interface the Commodore 64/128 with LEGO Mindstorms/Technic built robots. I used a device called the B100 interface unit from a kit that was called the Robotic Workshop, which was manufactured circa 1986. I wrote a program which reads a joystick and moves the arm in the direction that the joystick is pointing. In addition the B100 unit has a built in infrared transmitter/receiver which I programmed to detect when an object is placed between them. Sort of like a motion dectection sensor. When the beam is interrupted, the program signals that there is an object for the arm to pick up. |
|
|
|
 |
|
 |
|
|
|
|

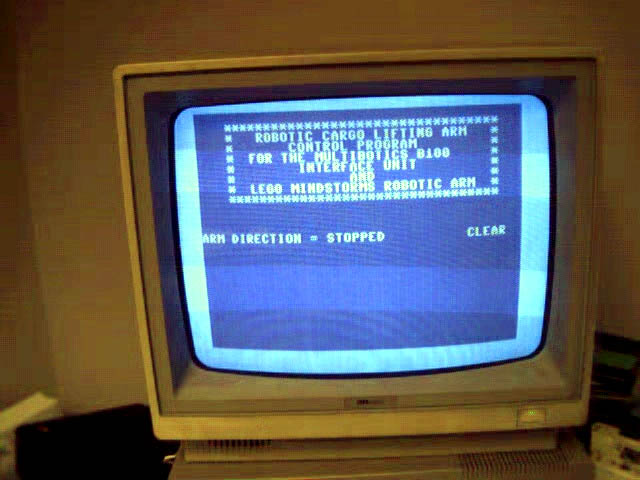

Screen display of the custom written program. |
|
|
|
|
|
|

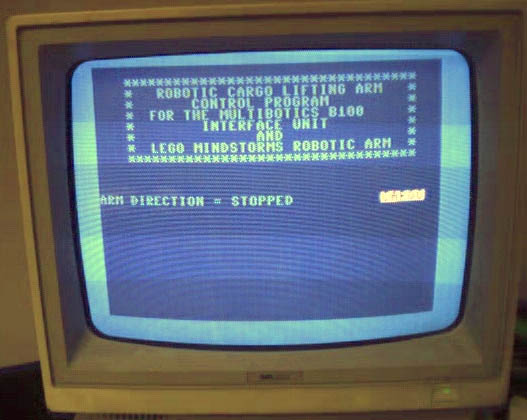

Another screen shot of the program. |
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|
This is the arm that I built with my Mindstorms Robotic Invention Kit 2.0. It is from the LEGO Pro Challenges. I disconnected it from the RCX and connected it to a B100 interface module for the Commodore computer. As will be seen in another photo. |
|
|
|

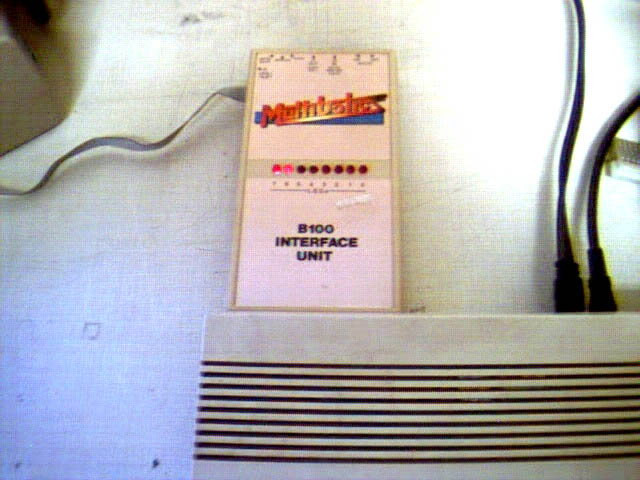

The B100 interface unit plugged into the user port of my C128. |
|
|
|
|
|
 |
|
|
|
|
 |
|
|
|
|
|
|

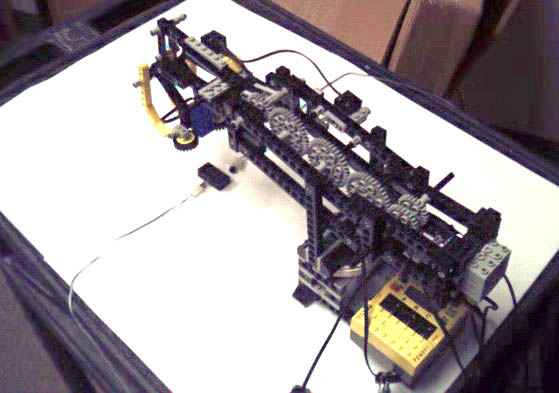

Top view of the robotic arm. |
|
|
|
|
|

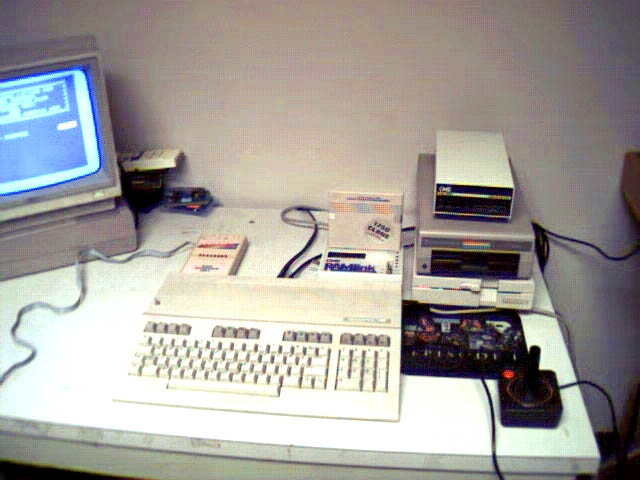

My C128 setup. |
|
|
|
 |
|
|
|

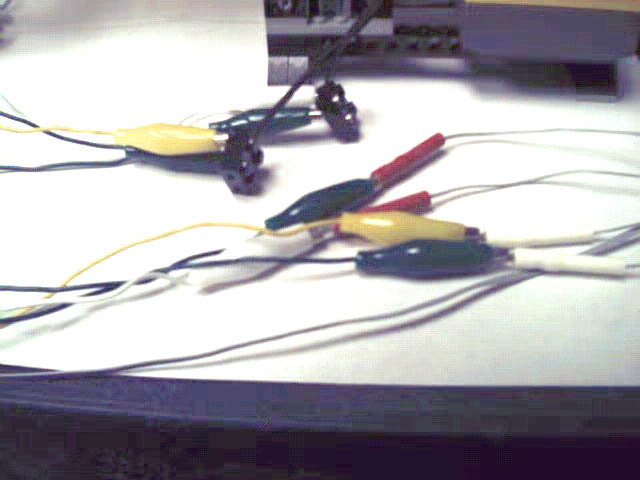

I used leads with alligator clips to attach the leads of the B100 unit to the Mindstorms motor leads. |
|
