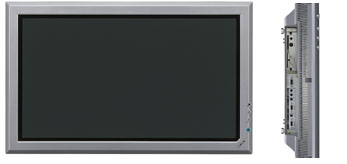

The PFM32C1 (32” viewable area, measured diagonally) is a high-resolution 16x9 wide-screen flat panel display with 1024 x 852 pixels. The monitor is extremely versatile – from the layout-free design to the range of input signals it can handle and is ideal for point-of-purchase/point-of-sale displays, exhibits, corporate lobbies, presentation rooms and home entertainment applications. Other noteworthy features include: selectable display modes, Wide Zoom, Letter Box Zoom, Subtitle, Full or Normal; closed caption decoder; six color temperature settings; and, a digital stereo audio amplifier.


Screen Size:	32-inch or 42-inch diagonal
Data Resolution:	1024 x 852 pixels or 1024 x 1024 pixels
Video Resolution:	1080/24PsF, 1080/50I, 575/50p, 480/60p, 1080/60I, 720/60p
Data Signals:	Connects to PC or Apple® Macintosh® computers
Video Signals:	Supports NTSC, PAL, SECAM, PAL-M, NTSC4.43, PAL 60 Analog HDTV signal can be directly connected to the PFM-32C1 as either RGB or Y Pb Pr.
Aspect Ratio:	16:9
Viewing Angle:	>160 degrees
Pixel Pitch:	0.84 x 0.39 mm
No. Colors:	16.8 million
Inputs:	Composite video (BNC type) S-Video Y/C (Mini Din 4-pin) w/ Audio (Minijack type) RGB 1 Analog (D-sub 15-pin) w/ Audio (Minijack type) RGB 2 Analog (D-sub 15-pin) w/ Audio (Minijack type) RS-232C S Control (In & Out)
Power:	AC 100-240V 50/60Hz
Dimensions:	33 (W) x 20.5 (H) x 4.4 (D) inches or  40 3/4 (W) x 24 7/8 (H) x 3 3/8 (D) inches
Unit Wt.:	50 lbs. or 63 lbs.
Warranty:	1 year parts and labor.
Incl. Accessories:	AC power cord, Remote Commander unit (RM-971) with two AA batteries, operation manual.

Sony's PFM42B2 42" Flat Panel Plasma Monitor. This monitor is just 3 3/8 inches thick and weighs 62.9 pounds. The PFM42B2 features a "layout free" design for horizontal or vertical viewing flexibility; a built-in scan converter that accepts a wide range of SDTV, DTV, and HDTV signals; and the ability to display both 4:3 and 16:9 aspect ratios.

Manufacturer's Warranty
Sony PFM models include a two year manufacturer parts
and labor warranty with a one year gas element warranty.

Enhancements in the PFM-42B2 42" Plasma Television
A new bi-pixel I/P (Interlace/Progressive) conversion circuit, developed exclusively for Sony flat panel displays, converts interlaced signals to progressive images. For film-originated sources, the Cinema Drive function (3-2 pull-down technology) is incorporated to help reproduce natural scene movement.

File sharing through a network
When these displays are connected to a network, files shared in that network can be retrieved and opened for display.

Remote control from networked PCs
Any PC within a network can communicate with the 42-inch display via a web browser. Operating presentations, organizing files and controlling both the display's functions and its setup parameters can all be done with a simple operation.

At a depth of just 3 3/8 inches, you can arrange this flat panel monitor in any way desire - in a stand, on a wall or hung from the ceiling, either horizontally or vertically

The PFM-42B2 uses a high resolution flat panel with 1024 x 1024 pixels. With the Sony original I/P (Interlace/Progressive) conversion technology you will see precise and smooth images throughout the screen, and the anti-reflection coating on the glass panel reduces light reflection for clear, high contrast pictures.

Multiple Inputs and a High Performance Scan Converter - With input connectors for composite, S-video (Y/C), RGB/component signals, you can display your visuals from a wide variety of signal sources, ranging from standard video to HDTV, DTV and computer signals up to UXGA. A built-in high performance scan converter ensures optimum image quality with exact pixel sampling from the original input source, providing high quality pixel-by-pixel image reproduction.

• 1024 x 1024 pixels
• Horizontal/Vertical viewing flexibility
• UXGA Signal capability
• Flexible aspect ratio
• 20 Video Memory Settings
• Color Temperature/Dot Phase Adjustment
• Lightweight at 29.4kg (64 lb 11 oz)
• Six-language On-screen Display for quick setup in English, French, German, Italian, Spanish and Japanese.
• Selectable Aspect Ratio you can choose from widescreen 16:9, wide zoom, Letter Box zoom and standard 4:3.
• Memory Save/Load up to twenty picture settings.

1024 x 1024 pixels for excellent brightness and contrast and smooth images throughout the screen.

Anti-reflection glass coating - Reduces light reflection for clear, high contrast pictures.

Lightweight and Slim Cabinet - 65.5 lbs and 3 1/4 inches thick for easy, flexible mounting anywhere

High-performance Scan Converter - Optimum image quality with exact pixel sampling from the original input source, providing high quality pixel-by-pixel image reproduction using Sony's new, exclusive Automatic Dot Phase Adjustment

Six language On-Screen Display - Quick and simple setup in English, French, German, Italian, Spanish and Japanese

Selectable Aspect Ratio - Choose from widescreen 16:9, wide zoom, Letter Box zoom and standard 4:3.

Size Control - Adjusts picture both vertically and horizontally

Picture Zoom - Zoom in on a section for a closer look; allows multiple panels to be used for video wall applications

Self Diagnosis Alarm - Easy maintenance access to confirm a diagnosis on the status menu, service code indicator or via the RS232C port

Color Temperature/Dot Phase Adjustment - Optimizes the scan converter sampling phase to the input signal and allows for up to six color temperature settings

Screen Saver Function - Picture orbiting and picture inversion assist in more uniform use of the pixels

160 degree viewing angle - Wide angle for large groups and distance viewing

Multiple Inputs for composite, S-video and RGB/Component - Displays visuals from a wide variety of signal sources, ranging from standard video to HDTV, DTV and computer signals up to UXGA.

Resolution: 1024 x 1024 pixels
Pixel Pitch: 0.90 x 0.51 mm
Active Area (W/H): 921 x 522 mm (36.2" x 20.5" inches)
Viewable Area: 42" diagonal
Driver: 10-bit RGB
Colors: 16.8 million colors simultaneously
Type: AC -type Plasma Display Panel with anti-reflection screen
Color system: NTSC/PAL/SECAM/NTSC4.43/PAL-M/PAL 60

Input/Output
Input 1:
- Connector: D-Sub 15-pin
- Signal: RGB, YUV

Input 2:
- Connector: D-Sub 15-pin
- Signal: RGB, YUV

Video In:
- Connector 1: BNC
- Signal: Composite Video
- Connector 2: S-video(Mini Din 44-Pin)
- Signal: Y/C

Output
- Connector: BNC, Loop-through - Signal: Composite Video

Remote (RS-232C):
D-sub 9-pin

Preset Signals
NTSC, PAL, SECAM, NTSC_4.43, PAL60, 1080/24PsF, 1080/50I, 575/50P, 480/60P, 1080/60I, 720/60P

General
Power Requirements: AC 100 to 240 V, 50/60 Hz, 4.5 to 1.8A
Power Consumption: 400 W max.
Operating Temperature: 0 to 35 C (32 to 95 F)
Storage Temperature: -10 to 40 C (14 to 104 F)
Humidity: 20 to 90 %, no condensation

Weight: 62.9 lbs. (28.4 kg)

Supplied Accessories
AC Power Cord, Remote Control, Operating Instructions

The Sony PFM42B2 plasma replaces the component video input with a 15 pin VGA input. Straightwire 15 pin VGA to RCA silver component video cable for use with the Sony PFM42B2 plasma and a progressive scan dvd player.

NOTE: Sony plasma TV monitors replace the regular RCA or BNC component inputs with a 15 pin VGA input, please make sure you select the correct cable.

Manufacturer's Warranty
Sony PFM models include a two year manufacturer parts
and labor warranty with a one year gas element warranty.

SONY XBR900 series Plasma displays
Sony KE-42XBR900
Sony KE-50XBR900

Sony KE-42XBR900 Plasma Display

The KE-42XBR900 is HDTV-ready (a separate HDTV tuner is required to receive high-definition broadcasts). The wide assortment of inputs on the back panel of the Media Receiver Unit includes two HD-capable component video inputs, plus a digital DVI input for compatibility with satellite HDTV tuners like Sony's SAT-HD200. You'll also find composite and S-video connections for your other video gear. A single "umbilical cord" connects the Media Receiver Unit to the plasma panel, keeping the look of your installation simple and clean.

A Memory Stick® slot lets you see digital photos in lifelike color  — no need to connect a camera to the TV!

Note: To set up the KE-42XBR900 requires either the tabletop stand or the wall-mount bracket.

Key Features:

Plasma panel:
• HDTV monitor (compatible with HDTV/SDTV formats — when connected to a separate HDTV tuner — and displays them at 768p)
• 42" plasma panel (measured diagonally)
• widescreen 16:9 aspect ratio
• 1024 x 768 pixels
• progressive display (all pixels display at once)
• 160° viewing angle
• side-mounted stereo speakers
• 53-1/4"W x 28-3/8"H x 4-1/8"D
• weight: 86 lbs.
• warranty: 1 year parts & labor

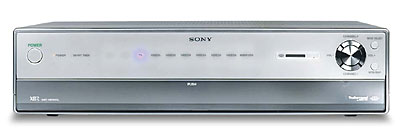

  Media Receiver Unit:
• 181-channel NTSC tuner
• Twin View 2-tuner picture-and-picture (split-screen)
• Wega Engine video processing
• Digital Reality Creation MultiFunction V1 (upconverts NTSC signals)
• CineMotion 3-2 pulldown processing
• MTS stereo reception
• 15 watts x 2
• SRS TruSurround™ for enhanced 2-speaker sound
• multibrand remote
• 6 A/V inputs, including:
  • 3 composite video (2 rear, 1 front)
  • 3 S-video (2 rear, 1 front)
  • 2 rear-panel wide-bandwidth component video
    (compatible with 1080i/720p/480p/480i signals)
  • 1 rear-panel DVI HDTV input with HDCP copy protection
    (compatible with 1080i/720p/480p signals)
• 1 A/V output (composite video and S-video)
• 2 RF inputs for antenna/cable
• Memory Stick slot (JPEG playback)
• 16-15/16"W x 4-1/8"H x 15-3/16"D
• warranty: 1 year parts & labor

HD Detailer Wideband Video Amplifier: All televisions have a video amplifier, the device that takes the original video source and "amplifies" it to deliver a useable signal to your television screen. The bandwidth rating of a video amplifier determines the amount of detail that can be displayed on a television. Sony's HD Detailer wideband video amplifier delivers great detail on even the finest images by getting the most out of high-bandwidth sources, such as the 1080i signal available from some set-top boxes and satellite feeds.

Native Resolution: The DVI-HDTV input will accept 1080i, 720p, and 480p, and will display them as 1024 x 768. The component video inputs will accept 1080i, 720p, 480i and 480p, and will display them as 1024 x 768. All other input signals will also be display as 1024 x 768.

Twin View: Using the Multi-Image Driver, Twin View allows you to watch two programs side-by-side with the ability to zoom in on one picture and listen to the program in the selected window. You can watch pictures from two different sources (1080i, 720p, 480p, or 480i) simultaneously.

Note: Only the left Twin View window can display 1080i, 720p, and 480p sources.

Favorite Channel Preview: This feature allows you to preview up to 8 favorite channels without leaving the current channel.

Freeze Function: This function allows you to temporarily capture a program's picture. The display switches to Twin View mode and displays the "frozen" picture on the right, while the current program continues on the left. This function only works in normal view mode; if you are in Twin View mode already, it will not work.

Picture Modes: You can select one of the following Picture modes:

• Vivid: enhances picture contrast and sharpness
• Standard: displays a standard picture for normal viewing environments
• Pro: displays a picture with minimum enhancements
• Mild: displays a natural, soft picture

Wide Screen Modes: You can select a default screen mode to use for 4:3 sources. While watching a channel, you can use the Wide Mode button to cycle through the wide screen modes. If the 4:3 Default is set to anything but Off, the wide screen mode setting changes only for the current channel. When you change channels, the wide mode is automatically replaced with the 4:3 Default setting. You can choose from the following screen wide screen mode options:

• Wide Zoom: select to enlarge the 4:3 size picture, while the upper and lower parts of the picture are condensed to fit the 16:9 screen
• Normal: returns the 4:3 picture to normal mode
• Full: enlarges the 4:3 picture horizontally only to fill the wide screen
• Zoom: enlarges the 4:3 picture horizontally and vertically to an equal aspect ratio that fills the 16:9 screen

Screen Saver: You can select one of the following screen savers:

• Orbit: moves the picture position to reduce image retention. This does not prevent image retention completely if the same picture is displayed for an extended period of time.
• All White: displays a white screen to reduce image retention

Vertical Center: This feature allows you to move the position of the picture up and down in the window.

Vertical Size: This feature allows you to adjust the vertical size of the picture.

Audio Effect Modes: You can select one of the following audio Effect modes:

• TruSurround: adds a three-dimensional sound to stereo programs
• Simulated: adds a surround-like effect to mono-channel programs

Steady Sound: This feature stabilizes the volume level, preventing unwanted blasts of sound during commercials.

Sleep Timer: The sleep timer switches the television off after a specified amount of time. The sleep timer can be set to 15, 30, 45, 60 or 90 minutes.

Timers: This unit has two timers that can be set by day, time, duration, and channel.

Memory Stick Playback (JPEG): The media receiver has a front-panel Memory Stick slot to let you easily view your JPEG images. You can choose from an index of the images stored on the Memory Stick, or you can run a slideshow of those images. You can also customize the features of the slideshow by selecting the length of time that each image is displayed, toggling the display of file information, and rotating each image.

Note: The media receiver's Memory Stick viewer is compatible with Memory Sticks up to and including 128MB. It is not compatible with Memory Sticks that exceed 128MB.

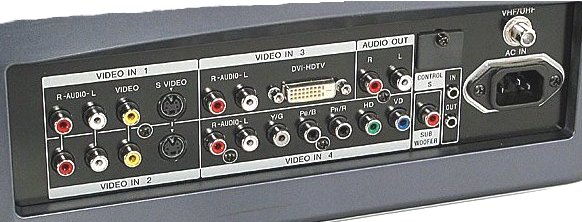

Inputs and Outputs

System Connections: The display has a white DVI-D input and black proprietary 26-pin input and the media receiver has a white DVI-D output and black proprietary 26-pin output. The components are connected using the supplied display interface cable.

DVI-HDTV In: This input consists of stereo RCA jacks and a DVI-D terminal. The DVI-D terminal can accommodate a copy-protected digital connection (HDCP) to other devices (such as digital set-top boxes) that have compatible interfaces. The DVI-D terminal is compliant with the EIA-861 standard and is not intended for use with personal computers.

Note: The DVI-HDTV input will accept 1080i, 720p, and 480p.

Component Video Inputs: The component video inputs will accept 1080i, 720p, 480i and 480p.

Monitor Out: The monitor output consists of stereo RCA jacks, an RCA composite video jack and an S-video jack. This output lets you record the program you are watching to a VCR.

Subwoofer Output: The subwoofer RCA jack allows you to add a powered subwoofer to this display.

Dimensions:

• Display Unit: W 53.25", H 28.375", D 4.125"
• Media Receiver Unit: W 16.9375", H 4.109", D 15.1875"

Sony KE-50XBR900 Plasma Display

The 2-piece KE-50XBR900 kit includes both the plasma display unit and the "Media Receiver Unit" that provides the Sony WEGA™ multi-step video processing system, which uses advanced digital processing to maximize the quality of the 50" progressive-scan picture.

The HDTV-ready KE-50XBR900 includes a full complement of connection terminals, including two HD-capable component video inputs, a digital DVI input, and S-Video and composite video inputs. All your video components connect to the outboard Receiver Unit, while a single cable connects the receiver and the plasma panel, making sure no cable clutter distracts from the sleek lines and stunning display of this unit.

A Memory Stick® slot lets you see digital photos in lifelike color and clarity. At your next party, pop in a Memory Stick and wow your guests with a slide show of that great vacation — no need to connect a camera to the TV! Composite Component Processor converts the incoming analog signal to a digital signal so that it can be processed. This new circuit has improved signal-to-noise ratio.

Digital Reality Creation™ MultiFunction V1 upconverts NTSC (analog) signals to near-HD quality. This latest version of DRC is adjustable so you can fine-tune the amount of enhancement for each video source.

Multi-Image Driver (MID™-XU) is specially designed for "fixed-pixel" displays like plasma. MID-XU's primary job is to scale (convert) all incoming signals to match the panel's 1024 x 768-pixel resolution without degrading signal quality. It also provides unique picture-and-picture features like Twin View™ with scalable windows.

CineMotion™ 3-2 Pulldown Processing is a critical step for accurately displaying DVD and other film-based material. It eliminates picture artifacts created when 24-frame-per-second film is converted to 30-frame-per-second video — the integrity of the original movie film frames is preserved.

Note: Installation of the KE-50XBR900 requires either the SU-P50T1 tabletop stand or the SU-PW1 wall-mount bracket.

Key Features

Plasma panel:
• HDTV monitor, compatible with HDTV/SDTV formats (requires separate HDTV tuner)
• 50" plasma panel (measured diagonally)
• widescreen 16:9 aspect ratio
• 1024 x 768 pixels
• progressive display (all pixels display at once)
• 160° viewing angle
• side-mounted stereo speakers
• 62-1/8"W x 33-3/4"H x 4-3/8"D
• weight: 117 lbs.
• warranty: 1 year parts & labor

  Media Receiver Unit:
• 181-channel NTSC tuner
• Twin View 2-tuner picture-and-picture (split-screen)
• Wega Engine video processing
• Digital Reality Creation MultiFunction V1 (upconverts NTSC signals)
• CineMotion 3-2 pulldown processing
• MTS stereo reception
• 15 watts x 2
• SRS TruSurround™ for enhanced 2-speaker sound
• multibrand remote
• 6 A/V inputs, including:
  • 3 composite video (2 rear, 1 front)
  • 3 S-video (2 rear, 1 front)
  • 2 rear-panel wide-bandwidth component video
    (compatible with 1080i/720p/480p/480i signals)
  • 1 rear-panel DVI HDTV input with HDCP copy protection
    (compatible with 1080i/720p/480p signals)
• 1 A/V output (composite video and S-video)
• 2 RF inputs for antenna/cable
• Memory Stick slot (JPEG playback)
• 16-15/16"W x 4-1/8"H x 15-3/16"D
• warranty: 1 year parts & labor

Wide Screen Modes: You can select a default screen mode to use for 4:3 sources. While watching a channel, you can use the Wide Mode button to cycle through the wide screen modes. If the 4:3 Default is set to anything but Off, the wide screen mode setting changes only for the current channel. When you change channels, the wide mode is automatically replaced with the 4:3 Default setting. You can choose from the following screen wide screen mode options:

• Wide Zoom: select to enlarge the 4:3 size picture, while the upper and lower parts of the picture are condensed to fit the 16:9 screen
• Normal: returns the 4:3 picture to normal mode
• Full: enlarges the 4:3 picture horizontally only to fill the wide screen
• Zoom: enlarges the 4:3 picture horizontally and vertically to an equal aspect ratio that fills the 16:9 screen

Screen Saver: You can select one of the following screen savers:

• Orbit: moves the picture position to reduce image retention. This does not prevent image retention completely if the same picture is displayed for an extended period of time.
• All White: displays a white screen to reduce image retention

Vertical Center: This feature allows you to move the position of the picture up and down in the window.

Vertical Size: This feature allows you to adjust the vertical size of the picture.

Audio Effect Modes: You can select one of the following audio Effect modes:

• TruSurround: adds a three-dimensional sound to stereo programs
• Simulated: adds a surround-like effect to mono-channel programs

Digital Component Processor: The Digital Component Processor makes the necessary adjustments to improve overall contrast and sharpness. It calculates these improvements by analyzing the signal and parameter of the plasma panel.

PDP Driver IC: The newly-developed PDP driver IC achieves high-precision gamma characteristics using Sony's unique digital technology. Fine gradation of dark scenes is realized by greatly enhancing resolution in the low brightness range.

HD Detailer Wideband Video Amplifier: All televisions have a video amplifier, the device that takes the original video source and "amplifies" it to deliver a useable signal to your television screen. The bandwidth rating of a video amplifier determines the amount of detail that can be displayed on a television. Sony's HD Detailer wideband video amplifier delivers great detail on even the finest images by getting the most out of high-bandwidth sources, such as the 1080i signal available from some set-top boxes and satellite feeds.

Native Resolution: The DVI-HDTV input will accept 1080i, 720p, and 480p, and will display them as 1024 x 768. The component video inputs will accept 1080i, 720p, 480i and 480p, and will display them as 1024 x 768. All other input signals will also be display as 1024 x 768.

Twin View: Using the Multi-Image Driver, Twin View allows you to watch two programs side-by-side with the ability to zoom in on one picture and listen to the program in the selected window. You can watch pictures from two different sources (1080i, 720p, 480p, or 480i) simultaneously.

Note: Only the left Twin View window can display 1080i, 720p, and 480p sources.

Favorite Channel Preview: This feature allows you to preview up to 8 favorite channels without leaving the current channel.

Freeze Function: This function allows you to temporarily capture a program's picture. The display switches to Twin View mode and displays the "frozen" picture on the right, while the current program continues on the left. This function only works in normal view mode; if you are in Twin View mode already, it will not work.

Picture Modes: You can select one of the following Picture modes:

• Vivid: enhances picture contrast and sharpness
• Standard: displays a standard picture for normal viewing environments
• Pro: displays a picture with minimum enhancements
• Mild: displays a natural, soft picture

Steady Sound: This feature stabilizes the volume level, preventing unwanted blasts of sound during commercials.

Sleep Timer: The sleep timer switches the television off after a specified amount of time. The sleep timer can be set to 15, 30, 45, 60 or 90 minutes.

Timers: This unit has two timers that can be set by day, time, duration, and channel.

Memory Stick Playback (JPEG): The media receiver has a front-panel Memory Stick slot to let you easily view your JPEG images. You can choose from an index of the images stored on the Memory Stick, or you can run a slideshow of those images. You can also customize the features of the slideshow by selecting the length of time that each image is displayed, toggling the display of file information, and rotating each image.

Note: The media receiver's Memory Stick viewer is compatible with Memory Sticks up to and including 128MB. It is not compatible with Memory Sticks that exceed 128MB.

Multibrand Remote: The supplied remote is pre-programmed to operate this unit and a number of functions on other brands of A/V components, including VCRs, laserdisc players, DVD players, cable boxes, and satellite receivers.

Inputs and Outputs

System Connections: The display has a white DVI-D input and black proprietary 26-pin input and the media receiver has a white DVI-D output and black proprietary 26-pin output. The components are connected using the supplied display interface cable.

DVI-HDTV In: This input consists of stereo RCA jacks and a DVI-D terminal. The DVI-D terminal can accommodate a copy-protected digital connection (HDCP) to other devices (such as digital set-top boxes) that have compatible interfaces. The DVI-D terminal is compliant with the EIA-861 standard and is not intended for use with personal computers.

Note: The DVI-HDTV input will accept 1080i, 720p, and 480p.

Component Video Inputs: The component video inputs will accept 1080i, 720p, 480i and 480p.

Monitor Out: The monitor output consists of stereo RCA jacks, an RCA composite video jack and an S-video jack. This output lets you record the program you are watching to a VCR.

Subwoofer Output: The subwoofer RCA jack allows you to add a powered subwoofer to this display.

Dimensions:

• 62-1/8"W x 33-3/4"H x 4-3/8"D
• weight: 117 lbs.

Sony XBR Wide-screen Plasma Displays SU-P50T1 Tabletop Stand This stand was designed specifically for the Sony KE-50 and KE-50 XBR Plasma Televisions. This sleek table stand complements the Plasma panel's ultra-thin design.

Flat Wall Mount A flat wall mount allows the plasma screen to rest flush against the wall, and is very popular for home use.	Tilt Wall Mount These mounting options allow you to mount your plasma flush against the wall, or at a tilt of 0-15 degrees.	Table Stand The Table Top stand allows you to place your plasma on any flat surface that will support the weight of the unit.

Articulating Wall Mount Swivel arm folds into the base when not in use, allowing a flush mount similar to the tilt wall mount.	Ceiling Mount The low-profile design offers new installation options in any room.	Cobra Floor Stand Easy to assemble and constructed of heavy-gauge steel.

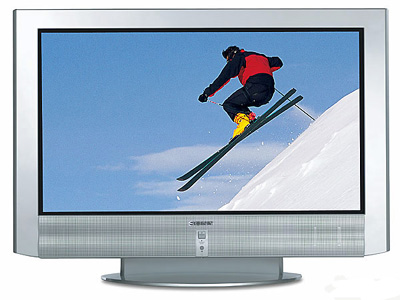

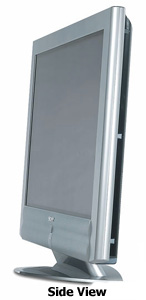

Sony KE42TS2 42" Plasma TV Monitor


The KE-42TS2's wide-screen design is perfect for DVD movies and HDTV programs (to receive HDTV broadcasts, you must connect an HDTV tuner). Non-HD signals get a big boost in quality from Sony's latest video upconversion circuitry. As a final step, Sony's Digital Pixel Generator™ System "scales" (converts) signals from all of your video sources so that they precisely match the panel's 1024 x 1024-pixel resolution for the best possible picture. The exception is when you feed the TV a 1080i signal from an HDTV tuner. Because 1080i is so close to the panel's native 1024i resolution, 1080i programs are displayed without any vertical scaling — you see 1024 out of the 1080 lines. The few lines of information at the top and bottom of the image that are discarded are insignificant (naturally the image still completely fills the screen). But the clarity and detail gained from cutting out one conversion step is very significant.

• HDTV Monitor
• Built-In NTSC TV Tuner
• Built-In Stereo Speakers
• 1024 x 1024 Resolution
• Pixel-by-Pixel I/P Conversion
• CineMotion Reverse 3-2 PullDown Technology
• Wall Mountable (WB-PW1)
• Display Resolution: 1024 Dots (horiz.) x 1024 Lines (vert.)
• Visual Size: 42" 16:9 Plasma Display panel
• Input Signals: 480i, 480p, 1080i, 720p, Computer RGB
• Dot Phase Adjustment (computer input only)
• Color Temperature Adjustment (5000 - 7000K)
• Auto Wide / Wide Screen Modes
• Closed Caption (CC)
• Multiple Language(3)On Screen Display (English/French/Spanish)
• TruSurround™ Sound w/SRS® 3D Audio Effect
• DVI-HDTV Interface
• Composite Video Input: (2R)
• S- Video Input: (2R)
• RF Input: (1R)
• HD Component (Y,Pb,Pr) Video Input: (1R)
• HD Component (Y,Pb,Pr) Video Input w/RGB/HV: (1R)
• Audio Output: (1R)
• Sub Woofer Out: (1R)
• Control-S In/Out
• Headphone Jack: (1F)
• DVI-HDTV Interface: (1R)
• Power Consumption: Max. 270W Standby 1.7W
• Dimensions: W x H x D: 41 5/8 x 30 1/8 x 5 (1056 x 764 x 124mm)
• Weight: 82.67 lbs (37.5kg)
• Optional stand: SU-TS1
• Optional wall bracket: WB-PW2
• Component (Y/PB/PR) Video Input: 2 Rear HD
• Composite Input (Rear/Front): 2/-
• S Video Input (Rear/Front): 2/-
• RF Input 1 Rear
• Monitor Out:
• Finish: Silver
• Energy Star Compliant: Yes
• This model's outstanding brightness, clarity and contrast is due in part to cutting-edge ALiS panel technology. ALiS (Alternate Lighting of Surfaces) panels work in a way that's similar to interlaced-scan tube-type TVs. Typical plasma panels have a strip of electrodes for each horizontal line of plasma cells, while ALiS panels share an electrode strip between two lines of cells. These lines switch on and off rapidly 60 times per second, and at any given instant only half the panel's pixels are turned on. Because there is less screen "real estate" taken up by electrode strips, there's more phosphor area to be illuminated, and as a result, ALiS panels provide an exceptionally clear, bright image. Other ALiS benefits include high-efficiency — they require only half the voltage of conventional plasma drive systems — and extended panel life.

A/V inputs : composite, S-video, component video, and DVI connections.



To help you make the most of the TV's widescreen design (and to reduce the chance of image burn-in), Sony included several picture display options. By stretching and/or zooming a conventional squarish 4:3 program, you can make it fill up this panel's wide screen. Other image-adjustment options include color temperature control, and five picture presets tailored for viewing conditions ranging from watching a ballgame in bright daytime lighting to savoring a movie at night with the lights turned low.

ALIS (Alternate Lighting of Surfaces) Technology: This technology alternates and shares the electrodes used to drive each pixel. In doing this, since there are fewer horizontal electrodes on the panel face and no nonluminous gaps between them, the pixel cells can be larger, which still allows for higher resolution. At the same time, since the cells are larger and they form unbroken vertical strips, they can emit more light with less driving power. This makes the panel reliable and equal in brightness to other designs.

Digital Pixel Generator System: Sony's unique Digital Pixel Generator System utilizes cutting-edge digital signal processing technologies to maximize display performance and reproduce natural, rich images, especially from high-definition sources. All signals are transmitted and processed entirely in the digital domain, minimizing picture degradation.

Pixel by Pixel I/P Conversion: This interlace to progressive technology constructs a film or video scene one pixel at a time for fluid, life-like motion and superb image detail.

CineMotion Reverse 3/2 Pulldown Processing: This function minimizes motion artifacts and optimizes film-based content from any video input for the purest reproduction of film-originated sources.

Native Resolution: The KE-42TS2U has a display resolution of 1024 x 1024. The DVI-HDTV, component video and RGB inputs will accept 1080i, 720p, 480i and 480p, and will display them as 1024 x 1024. All other input signals will also be displayed as 1024 x 1024.

Note: All signals are converted to 1024 x 1024, except 1080i. Instead of converting a 1080i signal, the TV displays the signal as is, simply cutting off a few lines of pixels on the top and bottom.

Picture Modes: You can select one of the following Picture modes:

• Vivid: enhances picture contrast and sharpness
• Standard: displays a standard picture for normal viewing environments
• Living Room: displays a picture with moderate contrast
• Movie: displays a finely detailed picture for low light environments
• AV Pro: use this mode for your own custom settings

• Widezoom: enlarges the 4:3 size picture, while the upper and lower parts of the picture are condensed to fit the 16:9 screen
• Zoom: enlarges the 4:3 picture horizontally and vertically to an equal aspect ratio that fills the 16:9 screen
• Full: enlarges the 4:3 picture horizontally only to fill the wide screen
• Subtitle: enlarges the 4:3 picture horizontally and vertically to an equal aspect ratio that fills the 16:9 screen, while the subtitle area is compressed to fit
• Normal: returns the 4:3 picture to normal mode

• Hall: for movies and music programs
• Simulated: adds a surround-like effect to mono-channel programs
• TruSurround: adds a three-dimensional sound to stereo programs

Sony's 2nd-generation KE-42TS2 plasma TV. This is a completely integrated plug-and-play TV — it includes an NTSC (analog) tuner, stereo speakers, and a tabletop stand.

The KE-42TS2's widescreen design is "picture perfect" for DVD movies and HDTV programs (to receive HDTV broadcasts, you must connect a separate HDTV tuner). Non-HD signals get a big boost in quality from Sony's latest video upconversion circuitry. As a final step, Sony's Digital Pixel Generator™ System "scales" (converts) signals from all of your video sources so that they precisely match the panel's 1024 x 1024-pixel resolution for the best possible picture at all times. The exception is when you feed the TV a 1080i signal from an HDTV tuner. Because 1080i is so close to the panel's native 1024i resolution, 1080i programs are displayed without any vertical scaling — you see 1024 out of the 1080 lines. The few lines of information at the top and bottom of the image that are discarded are insignificant (naturally the image still completely fills the screen). But the clarity and detail gained from cutting out one conversion step is very significant.

To accommodate a wide variety of video sources, you'll find four A/V inputs including composite, S-video, component video, and DVI connections.

The supplied stand is a rounded pedestal design that provides a graceful look on a tabletop, or on Sony's matching SU-TS1 A/V stand. Or you can remove the stand and wall-mount the TV (hardware not included, with Sony's WB-PW2 wall-mount bracket).

Key Features:

• HDTV monitor (compatible with HDTV/SDTV formats — when connected to a separate HDTV tuner — panel resolution is 1024i)
• 42" plasma panel (measured diagonally)
• widescreen 16:9 aspect ratio
• 1024 x 1024 pixels
• ALiS panel technology (Alternate Lighting of Surfaces)
• 160° viewing angle
• Digital Pixel Generator System
• Pixel-by-Pixel I/P Conversion (upconverts analog signals)
• CineMotion™ 3-2 pulldown processing
• 181-channel NTSC tuner
• MTS stereo reception
• 9 watts x 2
• SRS TruSurround for enhanced 2-speaker sound
• multibrand remote control
• 4 A/V inputs, including:
  • 2 rear-panel composite video
  • 2 rear-panel S-video
  • 1 wide-bandwidth rear-panel component video
    (compatible with 1080i/720p/480p/480i signals)
  • 1 rear-panel DVI HDTV input with HDCP copy protection
• RF input for antenna/cable
• mini stereo headphone jack (front panel)
• detachable stand (depth is 11-1/4")
• 41-5/8"W x 27-5/8"H x 6-1/4"D (30-1/16"H x 11-1/4"D with stand)
• weight: 75 lbs.
• warranty: 1 year parts & labor

Sony KLV-30XBR900
30" LCD TV with Media Receiver

Sony's flat-panel LCD TV, the KLV-30XBR900. Sony's proprietary LCD panel technology eliminates the "motion trails" or ghosting you occasionally see on virtually all LCD panels.

The KLV-30XBR900 includes the outboard Media Receiver Unit which houses Sony's proprietary Wega Engine™ multi-step video processing system. Wega Engine combines the latest versions of several acclaimed picture-improving technologies with powerful "scaling" circuitry to maximize clarity and motion on this 30" progressive display.

The widescreen-aspect screen of the KLV-30XBR900 is perfect for 16:9-aspect material like DVDs and HDTV (a separate HDTV tuner is required to receive high-definition broadcasts). The wide assortment of inputs on the back panel of the Media Receiver Unit includes two HD-capable component video inputs, plus a digital DVI input for compatibility with new-generation satellite HDTV tuners. You'll also find composite and S-video connections for your other video gear. A single "umbilical cord" connects the Media Receiver Unit to the LCD panel, keeping the look of your installation simple and clean.

This versatile TV also includes a Memory Stick® slot that lets you view digital photos.

Key Features

LCD panel:
• HDTV monitor (compatible with HDTV/SDTV formats — when connected to a separate HDTV tuner — and displays them at 768p)
• 30" LCD panel (measured diagonally)
• widescreen 16:9 aspect ratio
• 1280 x 768 pixels
• progressive display (all pixels display at once)
• 170° viewing angle
• side-mounted stereo speakers
• 38-1/4"W x 20-11/16"H x 3-13/16"D
• 38-1/4"W x 23-7/16"H x 9-1/8"D (on tabletop stand)
• weight: 44 lbs.
• warranty: 1 year parts & labor


Media Receiver Unit:
• 181-channel NTSC tuner
• Twin View 2-tuner picture-and-picture (split-screen)
• Wega Engine video processing
• Digital Reality Creation MultiFunction V1 (upconverts NTSC signals)
• CineMotion 3-2 pulldown processing
• MTS stereo reception
• 10 watts x 2
• SRS TruSurround™ for enhanced 2-speaker sound
• multibrand remote
• 6 A/V inputs, including:
• 3 composite video (2 rear, 1 front)
• 3 S-video (2 rear, 1 front)
• 2 rear-panel wide-bandwidth component video
  (compatible with 1080i/720p/480p/480i signals)
• 1 rear-panel DVI HDTV input with HDCP copy protection
  (compatible with 1080i/720p/480p signals)
• 1 A/V output (composite video and S-video)
• 2 RF inputs for antenna/cable
• Memory Stick slot (JPEG playback)
• 16-15/16"W x 4-1/8"H x 15-3/16"D
• warranty: 1 year parts & labor

Features

LCD Panel Driver IC: The LCD panel driver IC improves screen response time using proprietary Sony digital technology. By improving the response time in the middle luminance range, "afterimage" in motion pictures is significantly reduced, resulting in smoother movement of images on the screen.

HD Detailer Wideband Video Amplifier: All televisions have a video amplifier, the device that takes the original video source and "amplifies" it to deliver a useable signal to your television screen. The bandwidth rating of a video amplifier determines the amount of detail that can be displayed on a television. Sony's HD Detailer wideband video amplifier delivers great detail on even the finest images by getting the most out of high-bandwidth sources, such as the 1080i signal available from some set-top boxes and satellite feeds.

Native Resolution: The DVI-HDTV input will accept 1080i, 720p, and 480p, and will display them as 1280 x 768. The component video inputs will accept 1080i, 720p, 480i and 480p, and will display them as 1280 x 768. All other input signals will also be display as 1280 x 768.

Twin View: Using the Multi-Image Driver, Twin View allows you to watch two programs side-by-side with the ability to zoom in on one picture and listen to the program in the selected window. You can watch pictures from two different sources (1080i, 720p, 480p, or 480i) simultaneously.

Note: Only the left Twin View window can display 1080i, 720p, and 480p sources.

Favorite Channel Preview: This feature allows you to preview up to 8 favorite channels without leaving the current channel.

Freeze Function: This function allows you to temporarily capture a program's picture. The display switches to Twin View mode and displays the "frozen" picture on the right, while the current program continues on the left. This function only works in normal view mode; if you are in Twin View mode already, it will not work.

Picture Modes: You can select one of the following Picture modes:

• Vivid: enhances picture contrast and sharpness
• Standard: displays a standard picture for normal viewing environments
• Pro: displays a picture with minimum enhancements
• Mild: displays a natural, soft picture

Wide Screen Modes: You can select a default screen mode to use for 4:3 sources. While watching a channel, you can use the Wide Mode button to cycle through the wide screen modes. If the 4:3 Default is set to anything but Off, the wide screen mode setting changes only for the current channel. When you change channels, the wide mode is automatically replaced with the 4:3 Default setting. You can choose from the following screen wide screen mode options:

• Wide Zoom: select to enlarge the 4:3 size picture, while the upper and lower parts of the picture are condensed to fit the 16:9 screen
• Normal: returns the 4:3 picture to normal mode
• Full: enlarges the 4:3 picture horizontally only to fill the wide screen
• Zoom: enlarges the 4:3 picture horizontally and vertically to an equal aspect ratio that fills the 16:9 screen

Vertical Center: This feature allows you to move the position of the picture up and down in the window.

Vertical Size: This feature allows you to adjust the vertical size of the picture.

Audio Effect Modes: You can select one of the following audio Effect modes:

• TruSurround: adds a three-dimensional sound to stereo programs
• Simulated: adds a surround-like effect to mono-channel programs

Steady Sound: This feature stabilizes the volume level, preventing unwanted blasts of sound during commercials.

Sleep Timer: The sleep timer switches the television off after a specified amount of time. The sleep timer can be set to 15, 30, 45, 60 or 90 minutes.

Timers: This unit has two timers that can be set by day, time, duration, and channel.

Memory Stick Playback (JPEG): The media receiver has a front-panel Memory Stick slot to let you easily view your JPEG images. You can choose from an index of the images stored on the Memory Stick, or you can run a slideshow of those images. You can also customize the features of the slideshow by selecting the length of time that each image is displayed, toggling the display of file information, and rotating each image.

Note: The media receiver's Memory Stick viewer is compatible with Memory Sticks up to and including 128MB. It is not compatible with Memory Sticks that exceed 128MB.

Wall Mounting: You can mount this display on the wall using the optional SU-PW1 wall-mount bracket.

Remote Control

Multibrand Remote: The supplied remote is pre-programmed to operate this unit and a number of functions on other brands of A/V components, including VCRs, laserdisc players, DVD players, cable boxes, and satellite receivers.

Inputs and Outputs

System Connections: The display has a white DVI-D input and black proprietary 26-pin input and the media receiver has a white DVI-D output and black proprietary 26-pin output. The components are connected using the supplied display interface cable.

DVI-HDTV In: This input consists of stereo RCA jacks and a DVI-D terminal. The DVI-D terminal can accommodate a copy-protected digital connection (HDCP) to other devices (such as digital set-top boxes) that have compatible interfaces. The DVI-D terminal is compliant with the EIA-861 standard and is not intended for use with personal computers.

Note: The DVI-HDTV input will accept 1080i, 720p, and 480p.

Component Video Inputs: The component video inputs will accept 1080i, 720p, 480i and 480p.

Monitor Out: The monitor output consists of stereo RCA jacks, an RCA composite video jack and an S-video jack. This output lets you record the program you are watching to a VCR.

Subwoofer Output: The subwoofer RCA jack allows you to add a powered subwoofer to this display.

Dimensions

• Display Unit with Stand: W 38.25", H 23.4375", D 9.125"
• Display Unit without Stand: W 38.25", H 20.6875", D 3.768"
• Media Receiver Unit: W 16.9375", H 4.109", D 15.1875"

2005

The 2005 timeframe saw prices generally coming down for comparable models and the introduction of integrated (built-in) ATSC tuners along with newer models which solved some of the problems present with previous models such as plasma display's high altitude operation. More LCD models are being produced with bigger screens. Also there are more options for connecting components. The HDMI all digital connection is available and audio output ports from the TV are present along with a subwoofer output. Cable TV subscribers have an option for discarding the set-top-box and using the CableCard slot built-in to digital cable ready sets. The native resolution in some sets is getting closer to true HDTV. A few displays even have the 1920x1080i resolution or the 1280x720p resolution of true HDTV which means no scaling or down-conversion is required. Built-in DVR (digital video recorder) with hard disk drive for recording TV shows is available on the 50 inch plasma models and also the IEEE-1394 digital connections for digital camcorders. Memory card slots are becoming common so you can show your photos on the big screen.

Sony KLV-S32A10

The single-chip video processor used by the Sony KLVS32A10 integrates a 3D comb filter with a motion-adaptive IP converter, improving picture contrast and detail while reducing video noise and image blur. And you get that incredible picture both from TV inputs and computer inputs. There's a dedicated PC analog RGB HD 15 jack that allows you to display VGA, SVGA, XGA, or WXGA computer inputs on the KLVS32A10's spectacular 26" screen. Your computer's audio signal is handled by a stereo mini-jack (3.5 mm). When you're watching TV or DVDs, all signals are displayed at the screen's 1366 x 768 native resolution so you won't lose any detail from a high definition video source. And with the new WEGA Gate Easy Operation guide, you can navigate to the most convenient TV functions like favorite channels, channel list, external input, or settings using the multibrand remote control. Favorite Channel lets you store and quickly access eight of your favorite channels and each of the six video inputs can be labeled with actual names like DVD, Satellite, or VCR instead of Video 1, Video 2, or Video 3.

The LCD WEGA flat panel television opens up a wide spectrum of entertainment possibilities. Complete with a built-in NTSC Standard TV tuner, this 16:9 aspect ratio monitor is built to HDTV standards, meaning it's capable of displaying high-definition and enhanced-definition TV signals. (A separate ATSC HDTV tuner/decoder--not included--is required to receive HD or ED programming.) Designed to meet your viewing needs now and into the digital future, the KLVS32A10 is compatible with all the most popular current and up-and-coming display formats (480i, 480p, 720p, and 1080i). With Picture Mode you can select Vivid, which enhances the contrast and sharpness; Standard, for typical viewing environments; or Pro, which displays the picture like a professional monitor with minimal enhancements. Dynamic Picture circuitry works to maintain image detail in the very bright or very dark areas of the image, while Light Sensor measures ambient light in the room and adjusts the picture brightness to match the light level.

Audio Output : gives you the option of sending your television's audio to an external sound system and either controlling the volume through your receiver/amplifier (fixed output) or through your TV (variable output).

HDMI

The KLVS32A10 offers an array of connections, including HDMI (High Definition Multimedia Interface), the latest single-cable digital-to-digital connection, that provides an uncompressed, all-digital audio/video interface between this TV and any other HDMI-equipped A/V components like a set-top box, DVD player, or A/V receiver. HDMI accepts 480i, 480p, 720p, and 1080i signals and is backwards compatible with DVI connections by using an adapter (not included). The component video inputs also accept 480i, 480p, 720p, and 1080i signals, and there are S-Video and composite video inputs available as well.

Sony mounts the KLVS32A10 on a removable tabletop stand, which allows 15 degrees swivel left and right, 3 degrees forward (down) tilt, and 8 degrees back (up) tilt. There's an included support belt that bolts to the base of the stand and is attached to the back of the shelf where the TV is located. If you prefer, there are mounting holes on the back of the TV for an optional (not included) wall-mount bracket. The spacing of the mounting holes and the optional wall-mount bracket both comply to industry standards set by VESA (Video Electronics Standards Association). KLVS32A10 Supplied Accessories Remote Control (RM-YA001) Table Top Stand Operating Instructions Quick Setup Guide Battery (Type AA, x2) AC Power Cord Support Belt Warranty Card (SEL,SOCAN) SEL On-line Registration Card KLV-S32A10 Specifications Audio Audio Power Output : 20W Total (10W x 2) Full Range Speaker Size : 42 x 150mm Oval) Speaker Type : Oval cone Speakers (Total) : 2 Convenience Stand Tilt Range : Forward 3° / Back 8° Stand Swivel Range : L/R: 15° General Screen Size : 32 Aspect Ratio : 16:9 Inputs and Outputs HDMI™ Connection Input(s) : 1 (Rear) with Analog Audio PC Video Input(s) : 1 (Rear) - D-sub 15 PC Audio Input(s) : 1 (Rear) Component video (Y/Pb/Pr ) Input(s) : 1 (Rear) 480i, 480p, 720p, 1080i S-VIDEO INPUT(s) : 3 (1 Side / 2 Rear) Composite Video Input(s) : 3 (1 Side / Rear) Audio In : 5 (1 Side / 4 Rear) Audio Out (Variable/Fixed) : 1 (Rear) Headphone output(s) : 1 (Side) RF Connection Input(s) : 1 (Rear) Power Internal Power Supply : Yes Power Consumption (in Operation) : 155W Power Consumption (in Standby) : Less than 1W Power Requirements : AC 120-240V, 50/60Hz Service and Warranty Information Limited Warranty : 1 Year Parts, 1 Year Labor Video Display Resolution : 1366 x 768 Native Resolution : 720p Contrast Ratio : NA Display Response Time : NA Viewing Angle : Right/Left: 170°, Up/Down: 170° Weights and Measurements Dimensions (Approx) Width : 31 3/16 (792 mm) Dimensions (Approx) Height : 23 15/16 (608 mm) Dimensions (Approx) Depth : 12 3/16 (390 mm) including pedestal; 3 15/16 (99 mm) without pedestal Weight (Approx.) : 43 lbs 10 oz (19.8 kg) including pedestal; 35 lbs 4 oz (16 kg) without pedestal Regulation and Standard Compliance Energy Star® Compliant : Yes VESA : VESA FDMI Compliant Mounting Holes; Energy Star™ Audio Features SRS® TruSurround® Audio Effect : Yes Simulated Surround : Yes Sound Mode : Dynamic, Natural, Clear Voice, Mode Memory, Simulated Digital Amplifier : Yes MTS Stereo Decoder : Yes Tone Control(s) : Treble and Bass Audio Mute : Yes Speaker On/Off : Yes Convenience Features WEGA GATE™ Technology : Yes Freeze Memo Screen Freeze : Yes (with PIP) Picture-in-Picture : Yes Program Guide Access : Yes Favorite Channel : Yes Channel Jump : Yes CHANNEL LABEL : Yes Channel Skip/Add : Yes SPEED SURF™ CHANNEL SELECTION : Yes AUTO CHANNEL PROGRAMMING : Yes Multiple Language Display : English; Español; Français Mode Memory : Yes Info Banner : Yes PROGRAMMABLE TIMER : Yes Sleep timer : 15, 30, 45, 60, 90, Off Timer Events : Timer 1, Timer 2 Clock : Yes Power Save Mode : Standard, Reduced, Picture Off Built-In AC Adaptor : Yes General Features Clean Wire Management : Yes Video Label : Yes Auto SAP : Yes ID1 Detection : Yes Closed Caption (CC) : Yes CHANNEL FIX : Yes Video Features Screen or Display Technology : LCD Tuner : Analog Video Signal System : NTSC Video Processing : One-chip Video Processor Comb Filter : 3D DIGITAL COMB FILTER Video Processing : Motion Adaptive I/P Conversion CineMotion® Reverse 3:2 Pulldown Technology : Yes Dynamic Picture™ Processor Circuitry : Black Corrector Noise Reduction : Yes Color Temperature : Cool, Neutral, Warm Light Sensor : Yes Screen Modes (4:3) : Wide Zoom, Normal, Full, Zoom Screen Modes (16:9) : Wide Zoom, Normal, Full, Zoom, Off Wide Mode (16:9) : Wide Zoom, Full, Zoom Wide Mode (4:3) : Wide Zoom, Normal, Full, Zoom PHASE (PC Only) : Yes Picture Modes : Vivid, Standard, Pro Pitch (PC Only) : Yes OPTIONAL ACCESSORIES Wall Bracket (SU-WL31) WEIGHT 43 lbs, 10 oz with tabletop stand 35 lbs, 4 oz without tabletop stand DIMENSIONS (WxHxD) 31 3/16 x 23 15/16 x 12 3/16 with tabletop stand 31 3/16 x 22 3/16 x 3 15/16 without tabletop stand COLOR Silver SONY 42" Plasma WEGA HDTV TV KDE-42XS955 Sony’s third generation, fully digital WEGA Engine system and a 16:9 aspect ratio / ATSC HD Tuner / CableCard Built-in ATSC HDTV Tuner and NTSC TV tuner Inputs and Outputs - HDMI Connection: Rear x 1, 1 Control S Input: Rear x1 1 Control S Output: Rear x1, Audio Output: (Variable and Fixed) x 1 Center Channel Input TruSurround Sound SRS 3D Audio Effect Speaker Output: 2 way side speaker system Speaker Output: 25W x 2 + 50W Subwoofer Clock/Timer (Two Event) Favorite Channel Preview Program Palette presets Sleep Timer Built-in V-Chip Parental Control Flexible Twin View Picture and Picture Resolution: 1024 Pixels (h) x 1024 pixels (v) Digital Cable Ready with CableCard Slot Unit Dimensions: 44 7/8 x 29 5/8 x 14 1/4" / 124 pounds Includes Instruction Manual, Quick Setup Guide, Cosmetic Design Remote Control (RM-Y1004), AA Batteries (2), Cleaning Cloth Sony's 42" flat screen, high definition television. It produces stunning high definition images and has an integrated HDTV tuner and built in CableCARD so you could have ONE easy connect wire from your cable company. The HDTV also features Twin View, a Memory Stick slot for slideshows, and it even lets you see your JPEG photos on the big screen. 42" Screen Size (Measured Diagonally) 16:9 Aspect Ratio High Resolution (1024 x 1024) 480i, 480p, 1080i & 720p Capable, Computer RGB Rear HDMI Connection (1), Control S-Input (1), Control S-Output (1) Fixed/Variable Audio Output (1), Subwoofer Output (1) TruSurround Sound SRS 3D Audio Effect; Built-in 2-Way Side Speaker System with Subwoofer and Center Channel Input S-Master 1-Bit Digital Amplifier (25 W x 2 (L/R) & 50 W Subwoofer) Digital Cable Ready: CableCard Slot Flexible Twin View Picture and Picture Advanced WEGA Engine System Built-in NTSC TV Tuner Direct Digital II Circuitry Digital Reality Creation (DRC) Multi Function Circuitry MultiImage Driver (MidX) Circuitry Re-enginereed Plasma Panel Driver LSI Cinemotion Reverse 3:2 Pulldown BN Smoother Technology Enhanced Memory Stick Media Playback (JPEG/MPEG1) Clock/Timer; Sleep Timer Energy Star Compliant Color Temperature Adjustment: 5000-7500K 1 Tuner Picture In Picture Auto Wide/Wide Screen Modes Multiple Languages (3) On-Screen Display (English, French, Spanish) Auto Channel Program Caption Vision (CC); V-Chip Parental Control Channel Skip/Add, Favorite Channel Preview, Program Palette Presets Pre-programmable Remote Control Purchase Includes:  Remote, Instruction Manual, Quick Start Guide, AA Batteries, Cleaning Cloth Size: 45"x30"x15" Weight: 125 lb.

Key Features of the Sony KDE-42XS955 42" Plasma Monitor

• 42" HDTV plasma monitor, 1024 x 1024 native resolution
• Widescreen 16:9 aspect ratio Plasma TV
• ALiS panel technology (Alternate Lighting of Surfaces)
• Wide 160° viewing angle
• High-contrast screen with double anti-reflective coating
• Advanced 3rd-generation Wega Engine System
• Adjustable DRC MultiFunction V1 (upconverts NTSC signals)
• CineMotion 3-2 pulldown processing
• 181-channel NTSC tuner
• Twin View PIP (split-screen)
• Built-in stereo speakers
• 25 watts x 2
• SRS TruSurround for enhanced 2-speaker sound
• Multibrand remote control
• 6 A/V inputs, including:
  • 3 composite video (2 rear, 1 side)
  • 3 S-video (2 rear, 1 side)
  • 2 HD-compatible rear-panel component video
  • 1 rear-panel HDMI input with HDCP copy protection
• 2 RF inputs for antenna/cable
• Enhanced Memory Stick slot (JPEG/MP3 playback)
• Energy Star compliant
• Manufacturer's Warranty: 1 year parts & labor

Sony Plasma Technology

WEGA Engine System Plasma TV - Various signals such as RF standard definition broadcasts, composite video, component video, high definition video (interlaced or progressive) and even Memory Stick images benefit from this process. The WEGA Engine system converts all signals into the digital domain and applies an entire system of processes. The result? Better resolution and sharpness, higher contrast, less digital noise, and greater picture dimension.

Cinemotion Reverse 3-2 Pulldown Technology preserves the integrity of movie film frames to create great images.

MID-X Multi Image Driver Circuitry is specially designed for fixed pixel displays. It performs two major functions scaling all incoming standard and high definition signals to the configuration of the panel without degrading signal quality, and providing unique Twin-View scalable picture-and-picture features once impossible for fixed pixel displays. Watch SD and HD on the same screen at the same time.

DRC (Digital Reality Creation) MultiFunction Circuitry Unlike conventional, line doublers, the DRC Multifunction feature replaces the signal’s NTSC waveform with the near-HD equivalent by digital mapping processing. The DRC Palette option lets you customize the level of detail (Reality) and smoothness (Clarity) to create up to three custom palettes.

Convenience Features

Integrated ATSC Tuner for HDTV allows the reception of local, off-air digital broadcasts providing the viewing of free, true high-definition network programming without the addition of a set top box or a monthly fee.

Digital Cable Ready with CableCARD Slot A set of hardware specifications that are defined to include a removable security module, which separates the cable operator's proprietary conditional access system from the retail digital cable device, to enable portability of the host to other cable networks.

Memory Stick Media Enhanced Playback allows you to view digital photos (JPEG) and movies (MPEG1) and mix in MP3 music from your Memory Stick media on your LCD projection TV.

High Contrast Protective Screen
This television has a screen with a scratch-resistant dark tint surface that increases black level, resulting in brilliant colors.

Double Anti-Reflective Coating
This treatment is applied to the high-contrast screen so pictures remain vivid and contrast remains rich and vibrant. In addition, the double anti-reflective coating eliminates glare from room lights.

Freeze Function
This function allows you to temporarily capture a program's picture. The TV switches to Twin View mode and displays the "frozen" picture on the right, while the current program continues on the left. This function only works in normal view mode; if you are in Twin View mode already, it will not work.

Favorite Channel
This feature allows you to store and quickly access 16 of your favorite channels.

Video Mode
You can select Vivid, Standard, or Pro. The Vivid setting enhances picture contrast and sharpness. The Standard setting displays a standard picture for normal viewing environments. The Pro setting displays a picture with minimum enhancements.

Wide Screen Modes
You can select a default screen mode to use for 4:3 sources. While watching a channel, you can use the Wide Mode button to cycle through the wide screen modes. If the 4:3 Default is set to anything but Off, the wide screen mode setting changes only for the current channel. When you change channels, the wide mode is automatically replaced with the 4:3 Default setting. You can choose from the following screen wide screen mode options:

• Wide Zoom: select to enlarge the 4:3 size picture, while the upper and lower parts of the picture are condensed to fit the 16:9 screen
• Normal: returns the 4:3 picture to normal mode
• Full: enlarges the 4:3 picture horizontally only to fill the wide screen
• Zoom: enlarges the 4:3 picture horizontally and vertically to an equal aspect ratio that fills the 16:9 screen

Vertical Center
This feature allows you to move the position of the picture up and down in the window.

Vertical Size
This feature allows you to adjust the vertical size of the picture.

Steady Sound
This feature stabilizes the volume level, preventing unwanted blasts of sound during commercials.

Sleep Timer
The sleep timer switches the television off after a specified amount of time. The sleep timer can be set to 15, 30, 45, 60, or 90 minutes.

Timers
This unit has two timers that can be set by day, time, duration, and channel.

Multibrand Remote
The supplied remote is pre-programmed to operate this unit and a number of functions on other brands of A/V components, including VCRs, DVD players, cable boxes, and satellite receivers. In addition, the remote can control certain Sony AV receivers and 5.1 DVD AV systems.

Audio System Features

S-Master 1-Bit Digital Amplifier Delivers superb clear dialog and reproduces the original sound quality while minimizing any sound fragmentation or jitter noise.

Sound Effects
To enhance the sound, you can select TruSurround, which adds a three-dimensional sound to stereo programs, or Simulated, which adds a surround-like effect to mono-channel programs. The sound effects can be turned off.

Audio Out
The TV has a rear-panel audio output, which consists of left and right RCA audio jacks. Using the menu, you can select one of the following audio out settings: Fixed or Variable.

Subwoofer Output
The subwoofer RCA jack allows you to add a powered subwoofer to this display.

Terminals and Connections

HDMI Interface (High-Definition Multimedia Interface) HDMI is the first industry-supported, uncompressed, all-digital audio/video interface. HDMI provides an interface between any audio/video source, such as a set-top box, DVD player, and A/V receiver and an audio and/or video monitor, such as a digital television (DTV).

Component Video Inputs
The component video inputs will accept 1080i, 720p, 480p and 480i signals.





SONY 40" BRAVIA™ XBR® LCD Flat Panel HDTVKDL-V40XBR1

• Full HDTV (built-in ATSC tuner for over-the-air HD reception)
• 16:9 Widescreen TV with PC Input
• WEGA Engine™ System
• WEGA GATE™ Easy Operation Guide
• WCG-CCFL (Wide Color Gamut-CCFL) backlight

Cable 75ohm Coaxial
USB Cable
Cable DVI HDTV connections
HDTV SHARP LCD 37 inch
SONY Plasma 50 inch and LCD 32, 40, 42 inch TV Feature Comparison
HDTV Cable Connections and Hookup Diagrams
Video and TV connection diagrams
HDTV FAQ - frequently asked questions
The end of analog TV
Cablecard
HDTV setup

Columbia ISA
[email protected]
[email protected]
Empowering consumers thru information.
This information is presented for education and research purposes only.
