Panasonic

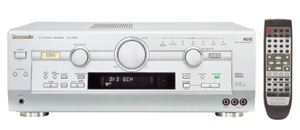

SA-HE100
Home Theater Receiver with Built-in Dolby
Digital/DTS-ES Decoder, Silver
MSRP $299.95
Models
features
| Dolby Digital Decoder 1 | Yes | ||
 | |||
| DTS Decoder 2 | Yes (DTS-ES) | ||
| |||
| Dolby Pro Logic Surround 3 *ALT* | Yes (Pro Logic II) | ||
| |||
| MOS-FET Output Stage | Yes | ||
| |||
| Subwoofer Level Control | Yes | ||
| |||
| Large Speaker Terminals | Yes (Speaker A only) | ||
| |||
| 6-Ch Discrete Inputs | Yes | ||
| |||
| Enhanced Class H+ Amplifier | Yes | ||
| |||
| 2-Channel Down Mixing | Yes | ||
| |||
| User-Friendly HELP Function | Yes | ||
| |||
| SFC (Sound Field Control) | 6 presets | ||
| |||
| Digital Synthesizer Tuner | Yes (Frequency Range - FM Tuner: 87.9-107.9MHz, AM Tuner: 530-1710kHz) | ||
| |||
| Subwoofer Output | Yes | ||
| |||
| Remote Control | Illuminated Universal Remote Control | ||
| |||
| Speaker Size Configuration | large/small/none (except left/right channels) | ||
| |||
| Tape Monitor | Yes | ||
| |||
| Speaker Selector | A and/or B | ||
| |||
| Output Power - Stereo Mode | 100W per channel (40Hz-20kHz, 6 ohms, 0.9% THD) | ||
| |||
| Frequency Response | PHONO: RIAA
standard curve ±0.8dB CD, TAPE, DVD, TV, VCR: 10Hz-70kHz, ±3dB |
||
| |||
| S/N Ratio (IHF A) | PHONO: 70dB
(80dB, IHF '66) CD, TAPE, DVD, TV, VCR: 78dB DVD 6-channel: 100dB (IHF A, rated power, S=2V), 85dB (94dB, IHF '66) |
||
| |||
| Load Impedance | A or B: 4-8
ohms A and B: 8 ohms Center: 6-8 ohms Surround: 6-8 ohms |
||
| |||
| Component Video Switching | Yes (2 inputs, 1 output) | ||
| |||
| Output Power - Home Theater Mode | 100W per channel (6 channels, 1kHz, 6 ohms, 0.9% THD) | ||
| |||
| DVD-Audio Ready | Yes | ||
| |||
| Multi-Source Re-Master Processing | No | ||
| |||
| Gold-Plated Terminals | No | ||
| |||
| S-Video Inputs/Outputs | 3 in, 1 out | ||
| |||
| Video Inputs/Outputs | 3 in, 2 out | ||
| |||
| Digital Inputs/Outputs | 4 in (3 optical, 1 coaxial), 1 out (optical) | ||
| |||
| Audio Inputs/Outputs | 5 in, 2 out | ||
| |||
| Full-Digital Processing | No | ||
| |||
| Dimensions (H x W x D) | 67/32'' x 1615/16'' x 1425/32'' | ||
| |||
| Weight | 23.100 lbs | ||
| |||
