| power supply |

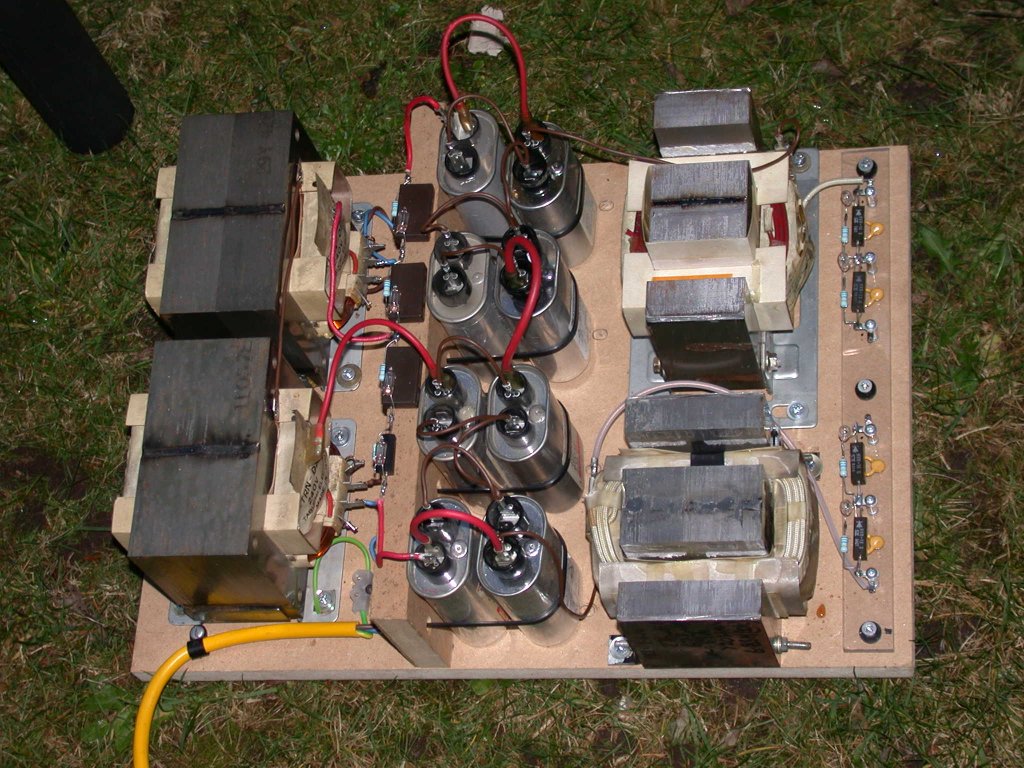

| This is a pic of the dc resonant power supply that powers that coil to the left is the two mots. then the caps for the voltage doubling and smoothing. then the charging inductors. there is more to the pic which is explained in the specs |
