Return to previous page. 1. Equal Poisson ratio 2. vLm/vLp vs. Z0m/Z0p version of this page 3. Poisson ratio of matrix greater than nanoparticle 4. Actual material combinations |
For all the examples on this page, the nanoparticle
has a greater Poisson ratio than the matrix.
That means that
vTp / vLp
< vTm / vLm. |
|
Figure 2(a) sph0cn10.cpp md54jw.gif md54jf.gif Notice in the left figure that the dimensionless frequency ξ varies continuously from FSM to BSM as the diagonal is crossed. The Poisson ratios correspond roughly to a gold nanoparticle in a diamond matrix. This continuous variation of ξ is an unusual situation. |
 |
 |
|

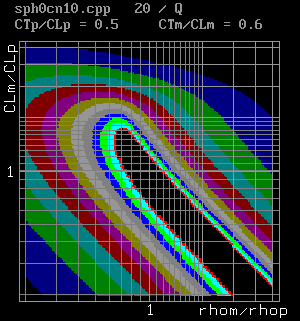

Figure 2(b) sph0cn10.cpp md54bw.gif md54bf.gif The Poisson ratios correspond roughly to an Ag nanoparticle in BaO-P2O5 glass. |
 |
 |
