PROJECT CAR |
||||||||||||||||||||
STAGE 1 |
||||||||||||||||||||

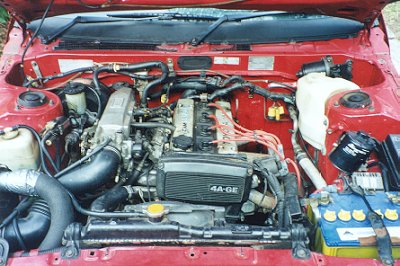

First off this little baby has a Jap import 4-AGE 1.6 EFI DOHC engine out of a Jap spec Sprinter sitting in its engine bay! Hangin off the engine are tuned length 4-2-1 racing extractors into a 2" system and a set of NGK platinium plugs. Gear changes are done through a Jap spec Sprinter closer ratio gear box with a h/d clutch this is mated to a Jap spec Sprinter GT |
||||||||||||||||||||
![]() |
||||||||||||||||||||
Limited Slip Diff with disc brakes. The HUGE front brakes are from a Mazda RX7 series IV turbo with 4 spot calipers and vented rotors. The car also runs on AP Racing Brake fluid. Suspension is upgraded with a full K-MAC setup, fully prepared for the race track, with 2.5" lowered springs, race shocks and |
||||||||||||||||||||
![]() |
||||||||||||||||||||
![]() |
||||||||||||||||||||

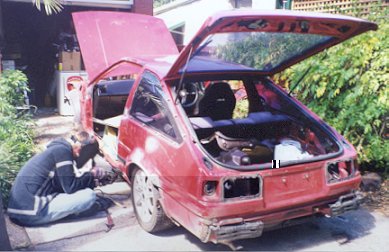

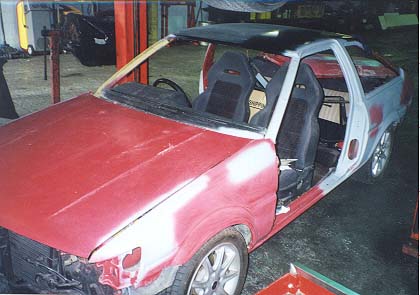

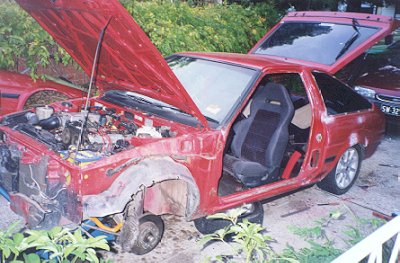

thicker front and rear sway bars. At the moment the car sits on 15" ROH rims, and the interior is basically gutted besides the Suzuki GTi front buckets, as u can see the car is being prepared for some serious changes and modifications! so stay tuned for more upcoming modifications in the near future....... |
||||||||||||||||||||
![]() |
||||||||||||||||||||
