These are the pics of a basicly stock 1974 CB750K,

this is how I picked the bike up in the summer of 2001

at the time it already had a 16" HD rear rim laced on

the stock hub and an aftermarket bolt on king/queen seat


>

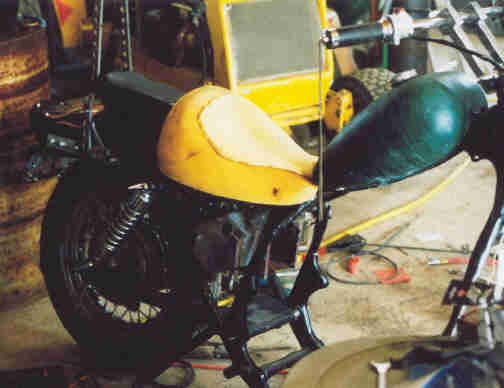

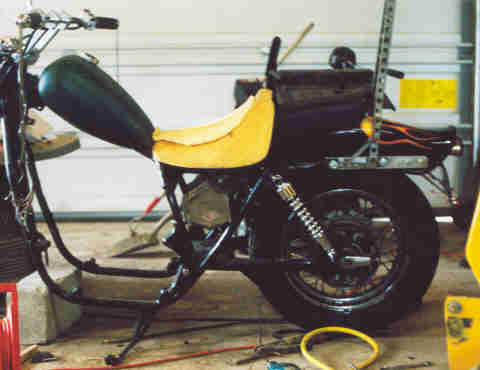

in these pics I started the chopping,


 removed the outside backbone tubes




and mocked up the Mustang single cap tank



 to get an idea on what it would look like when done




 I have the frame welded up after strecthing the down tubes
 and installing a modified 79 DOHC CB750 swingarm,

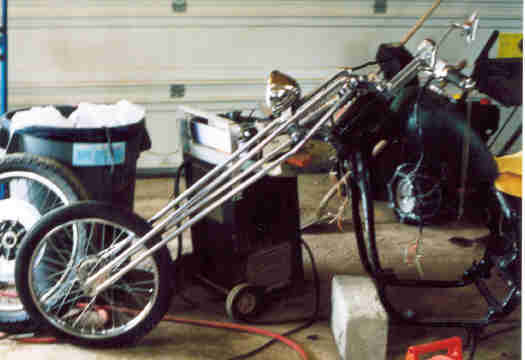

the front end is a 12" over shocked girder
with colony pike nuts installed,
the rear fender is off an FXST
and the gas tank is a single cap mustang style,
seat is a stock HD softail  that
has been modified to fit my frame
 the sissy bar is hand made and dates back to 1976 except
the rising sun maltese cross at the top
which I just tacked in place for now

">



 I have done a little bit more work to the chopper.
I decided against adapting the stock front wheel with disc brake to the girder

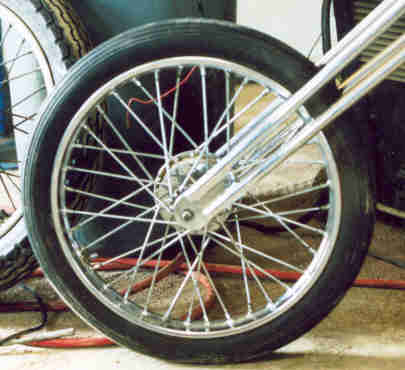

to correct the trail for better and safer handling I am using a 17inch  spoked wheel with halcraft mini-drum brake

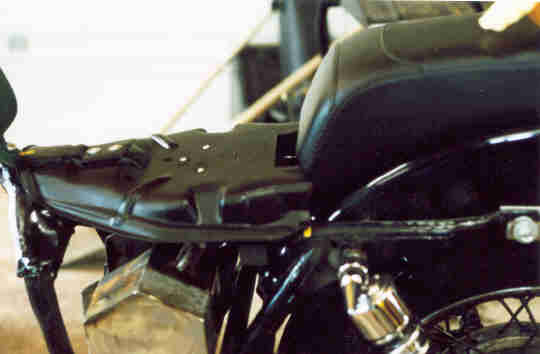

I also obtained and heavily modified a HD Saoftail seat to fit my modified frame

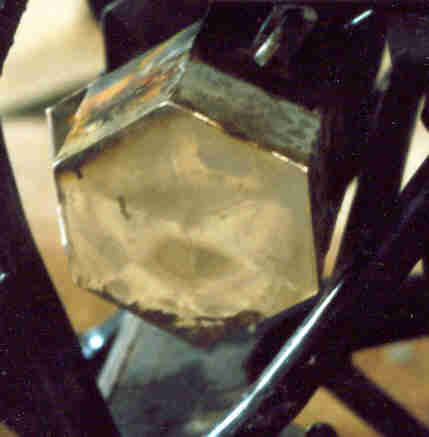

The oil tank is posibly an old crusty Santee  (looks similar to pics I have seen)
I have modified the opil tank.battery box by stetching it aprox. 1 1/4 inche on each side taking the volum from 2 quarts to 3 1/2 quarts
 I also scavengedthe  oil line fittings from my stock oil tank
 and welded them to the new tank
 it still needs some work but has been tested for leaks  which there are none
 I then welded mounting tabs to the frame
 the front of the seat still needs a mounting point  but thta is a no brainer and will only take a  little bit of time to complete

">
