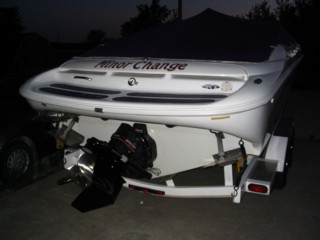

Minor Change

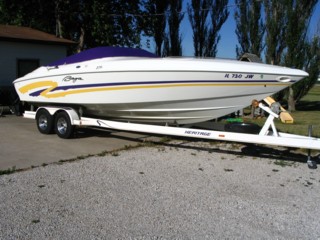

This 27' Baja belongs to Brandon Cox.

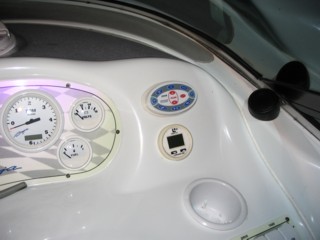

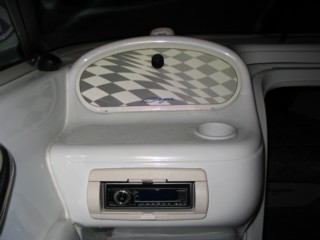

The head is a Kenwood with the Sirus satilite hook up and the optional wired remote over at the driver. The ant. for the radio is on top of the dash to try and match the compass on the driver's side.

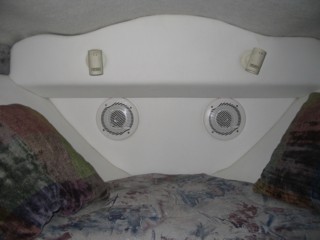

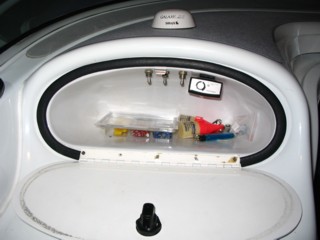

The cuddy speakers can be turned on and off at the glove box with these switches. One is for the amps to turn them off and the other two to turn on the speakers with head power only. The bass controler for the sub amp is in here also.

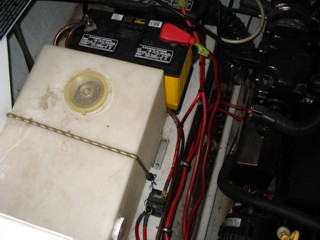

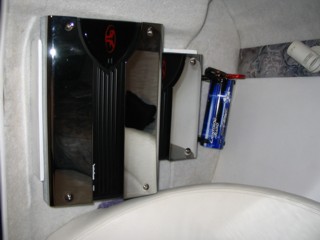

The amps are rather large and we needed to stack them to make all the equiptment fit. It is a P4004 and a P4002 Rockford with a Lighting Audio Cap next to it. The system is wired off of battery 2 in the boat and protected by a Stinger circut breaker.

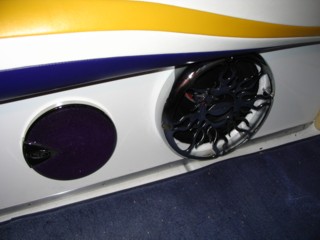

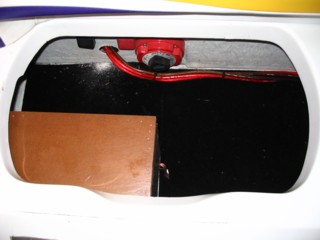

The sub boxes are MDF with fiberglass resin over them to shed any water. The power and ground runs through the back of the seat to the engine bay so we didn't have to put it in front of the motor. The switch selector for the batteries is in here also. The subs are Rockford Hx2 10" and are covered with Autobahn flamed grills. All of the coax speakers are Rockfords's also. There are 3 sets in the boat for now. Brandon is adding another set soon.
