Aeromotive Fuel Reg Install
...Info for installation of an Aeromotive fuel reg on a 1G DSM
Parts List
- Aermotive Fuel Regulator, Summit part number AEI-13109, $129.95
- 10ft Earls Perform-O-Flex -6AN SS line, Summit part number EAR-410006, $63.69
You can always use more less line according to your mounting location...
6ft of line is part number EAR-406006 and is $39.69
3ft of line is part number EAR-403006 and is $25.99
- -6AN male union fitting, x2, Summit part number EAR-981506, $2.95 each
- -6AN socketless fitting, Summit part number AER-FCM1512, $3.95
- -6AN plug, Summit part number SUM-220630, $1.39
- -6AN 90 degree fitting, Summit part number EAR-809106, $15.95
- -6AN straight fitting, Summit part number EAR-800106, $5.95
- Diamond Star Motorsports 1G fuel rail outlet fitting, $25.00
- Appropriately sized copper gasket/crush washer for return line port found at any hardware/plumbing store
Install

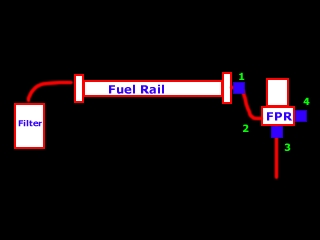

- Install -6AN union fittings to the fuel pressure regulator. Slide the copper washer over the union fitting on the return port to seal. Use a -6AN plug on one inlet of the Aeromotive reg. "4"
- Unbolt stock fuel rail oulet fitting to stock FPR. Remove stock FPR and all lines.
- Install Diamond Star Motorsports fuel rail outlet fitting to fuel rail outlet. "1"
- Pre-cut desired legnth of -6AN line and install fittings. Use a 90* and straight fitting. "2"
- Mount the Aermotive reg.
- Install 1 socketless -6AN fitting to stock FPR return line. Use a slight amount of oil on the stock return hose to allow the socketless fitting to slide in easily. Use a hoseclamp to secure. "3"
- Connect all AN fittings to the Aeromotive regulator.
