Digital Thermometer DIY
HOME DIY DIGITAL THERMOMETER
Features:
  • Few components
  • High accuracy
  • Short assembly
  • Wide operating voltage

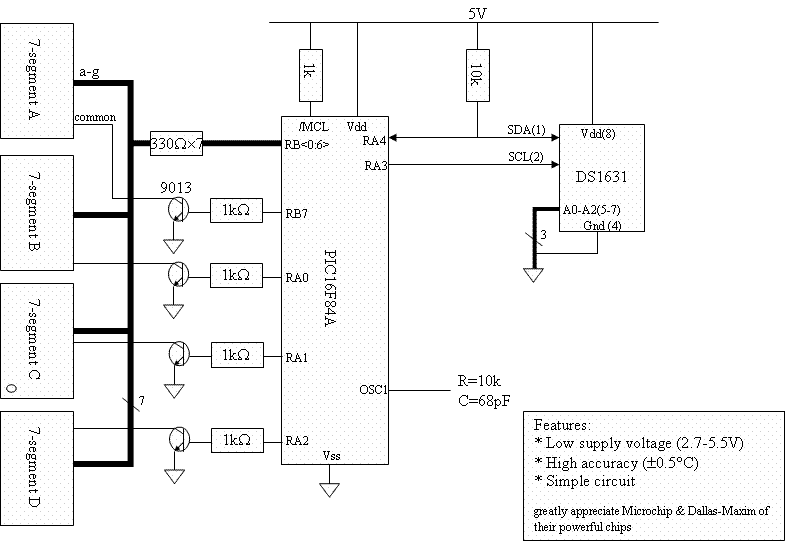

Schematic Diagram:
Flowchart:
Flowchart_01
Firmware:
Assembly
Binary
Datasheets:
Dallas-Maxim DS1631
Microchip PIC16F84A
Photos:

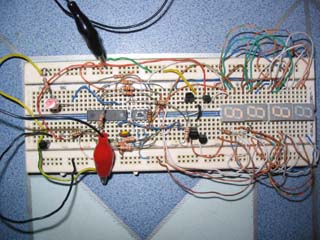

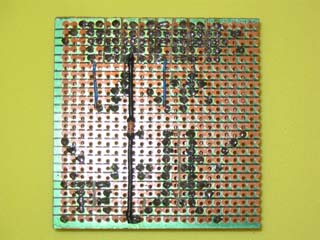

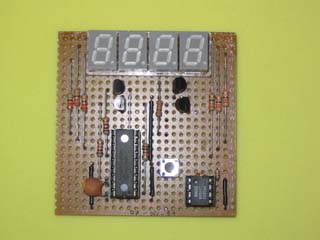

Prototype PCB (front) PCB (bottom)
