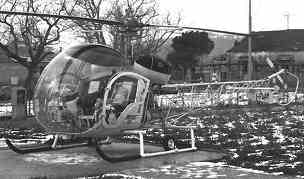

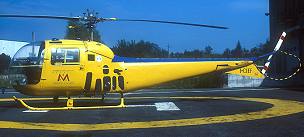

AGUSTA-BELL AB-47 / AB-47J SUPER RANGER

En 1952 Agusta obtiene la licencia para fabricar el Bell 47, denominandose AB-47. En 1971 obtiene tambien la licencia para fabricar el Bell 47J, denominandose AB47J "Super Ranger".

In 1952 Agusta was granted a license to manufacture the Bell 47. The license-built helicopter was called theAB-47.In 1971, Agusta was licensed to manufacture the Model 47J by Bell. This was known as the AB47J "SuperRanger".

Characteristics Características	Information Información	Characteristics Características	Information Información
First Flight Primer Vuelo	1952	Engine Motor	1 Lycoming VO-540
Seating Capacity Plazas	1 / 3	Power Potencia	305 HP
Empty Weight Peso Vacío	1720 Lbs	Hover Ceiling O.G.E. Estacionario O.G.E	3100 Ft.
Maximum Weight Peso Máximo	2850 Lbs	Hover Ceiling I.G.E. Estacionario I.G.E	9200 Ft.
Vel. Cruise Vel. crucero	80 Kts	Service Ceiling Techo de Servicio	Mts
V.N.E. V.N.E	91 Kts	Maximum Range (Std) Alcance (Std)	236 NM
