The structure of the Human Immunodeficiency Virus (HIV) is relatively simple. The viral  core  contains the genome, or genetic material, which is accompanied by several  enzymes  essential to successful reproduction, including protease (p9) [for "protein 9"], reverse transcriptase & RNAse (p66), and integrase (p32). This material is held within the  capsid , a single layer of structural proteins (p24). Surrounding this in turn is the matrix protein membrane, composed of additional structural proteins (p17). Finally, encasing all these elements, is the viral  envelope, which is composed of lipids taken from the host cell (usually an human immune cell such as a T-Lymphocyte or macrophage). Protruding through the lipid membrane are numerous spikes of envelope  glycoprotein (gp160),  which are used by the virus to facilitate attachment to the host cell via various cell surface receptors. The envelope glycoproteins have two separate parts: the surface glycoprotein (SU), designated gp120, and the transmembrane glycoprotein (TM), designated gp41. Please note that these numbers represent the approximate atomic weight of these proteins, expressed in daltons. The sum of these two weights (120 + 41) equals roughly 160 daltons, hence the desgnation of the combined envelope glycoprotein as gp160.

Image of the structure of a mature HIV virion

3D HIV structure

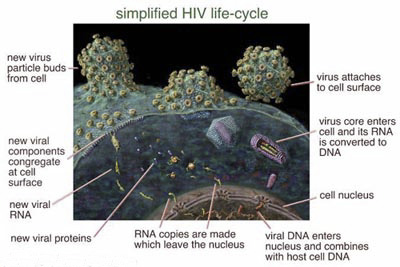

    Simplified HIV life-cycle

        The initial phase of HIV infection is binding. The virus attaches to the host cell, in this case a CD4 Lymphocyte (or T-4 cell), by binding to the various cell surface receptors available to it. These include the well-known  CD4+ cell surface marker and a number of chemokine receptors that have recently been identified as essential co-receptors in HIV infection. In T-cells, the CC-chemokine receptors are used; in macrophages, the b-chemokine receptors are used. With this discovery comes the possibility of new drug therapies to block attachment through these essential co-receptors. [Source: science-mag.aaas.org/science]

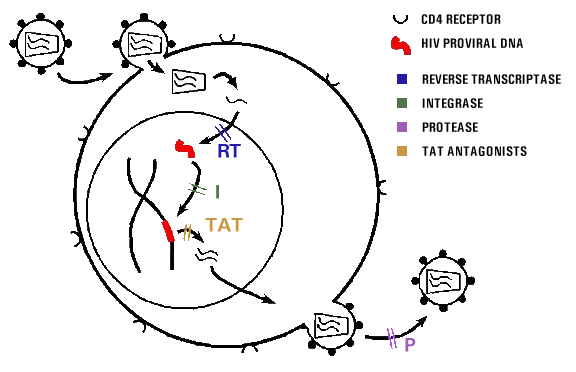

        The three major HIV enzymes present the best targets yet for new drug therapies. The reverse transcriptase inhibitors, such as the nucleoside analogue and the non-nucleoside RT inhibitors were the first drugs developed against HIV, and have been moderately successful in achieving limited suppression of viral replication. The protease inhibitors such as the drugs ritonavir, indinavir and nelfinavir, has been far more effective at suppression of viral replication, achieving almost total suppression in many patients taking these drugs

        However, the development of drugs to suppress viral enzymes and genes has not been without its failures. Past efforts to create drugs that inhibited TAT (a protein involved in upregulating viral reproduction) were a dismal failure. It is hoped that next-generation therapies such as the integrase inhibitors, already in early development, may be more effective than even the protease inhibitors. [Source: [email protected]]

         Immature HIV, human immunodeficiency virus ( Retroviridae ), low-pass filtered to 6 nm.(electron tomography). Electron tomography consists of  scanning of micrographs and the resulting pictures must be aligned with respect to one another. Scaling, rotations, and translation of origin have all to be checked because of the variations in them from one picture to another introduced by the manual microscopy and scanning.

        HIV, human immunodeficiency virus (Retroviridae): Spherical, enveloped i.e. membrane bound particles (100-130 nm i diameter). The genome consists of two (diploid) identical ss-RNA strands (plus t-RNA from the host). As seen by thin-sectioning-techniques, the envelope of immature virions is lined with a 20-25 nm thick submembraneous layer of precursor (gag) proteins and the central area looks empty. Mature virions have in the center a characteristic conical core consisting of the viral RNA complexed with viral protein and the submembraneous layer is very thin. Platina-carbon shadowing techniques have revealed globular knobs (12-14 nm in diameter and 10 nm high) formed by clusters of glycoproteins. The knobs have the  tendency to come off ; believed to make the viruses more resistant to immunological attacks. However, the knobs are also sensitive to preparative conditions. They are not easily distinguished e.g. in thin sections. In negative-staining with uranyl acetate, merely triangular shaped protrusions are detectable, interpreted that the lower part of the knobs is triangular while the top is globular and covered by stain i.e. making them less visible

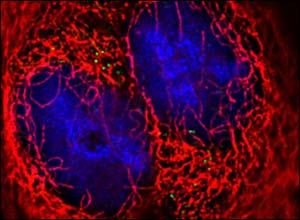

        The pictures (fluorescent microscopic) offer proof that the virus uses the cell's own machinery to be dragged inside the cell..The study, by the University of Illinois at Chicago, reveals how HIV "hitches a ride" aboard a cell protein called  dynein  as it makes it way up tiny microtubules into the cell itself. The tubules lead all the way to the cell's nucleus, where the virus can begin to start replicating by harnessing the cell's own ability to copy its genetic code. Virus particles are only approximately 12 millionths of a centimetre in diameter, yet the University of Illinois team managed to produce pictures of them as they headed for their destination.  They did this by attaching green fluorescent proteins from jellyfish to them, then shining a blue light on them to make them glow. Each HIV particle appears as a green dot on the background of the red tubules, which have also been marked with another fluorescent protein. Time lapse photographs were taken under the microscope at 15 second intervals to reveal the virus' steady progress towards the centre of the cell. Professor David McDonald, one of the scientists leading the project, said: "They don't make a beeline for the nucleus." Their progress is somewhat halting. They appear to jump  from one microtubule to another, moving in a jagged path, even sometimes moving backward, but they eventually reach their destination." Professor Thomas Hope, another scientist involved in the project, said: "We hope this basic research will one day lead to new targets for drug therapy in the longstanding battle against Aids." The pictures were published in the Journal of Cell Biology.

         This is a scanning electron micrograph show HIV (dark green area) surrounding the T4 lymphocyte. The source of this picture was Microbiology, fourth edition, by Tortora, Funke, and Case, The Benjamin/Cummings Publishing Company, Inc, page 3

        The pictures (electron microscope) on the 1st and 2nd picture show engineered SIV [simian (monkey) immunodeficiency virus] expressing high levels of the surface protein gp120 (indicated by arrows)  The  propeller -like shape (3rd picture) of the  gp 120  trimer  can be clearly seen . The final picture shows a wild type HIV particle, showing the much lower density of gp120 (which came as a surprise; most researchers thought it would look like the SIV pictures). The white bar in the HIV picture is 100 nm, about 1/500th the thickness of a human hair; the same scale applies to the SIV pictures.

Graphical 3D HIV attacking T4 lymphocyte
