Current Research Topics Dr. Chi-Fang Huang (黃啟芳)

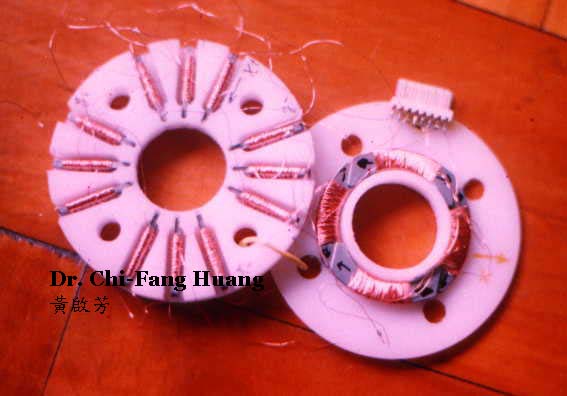

This electromagnetic PCM (Purity-Convergence Magnet) is a design for an automatic equipment of measuring CRT electron-optical performance
A realized example

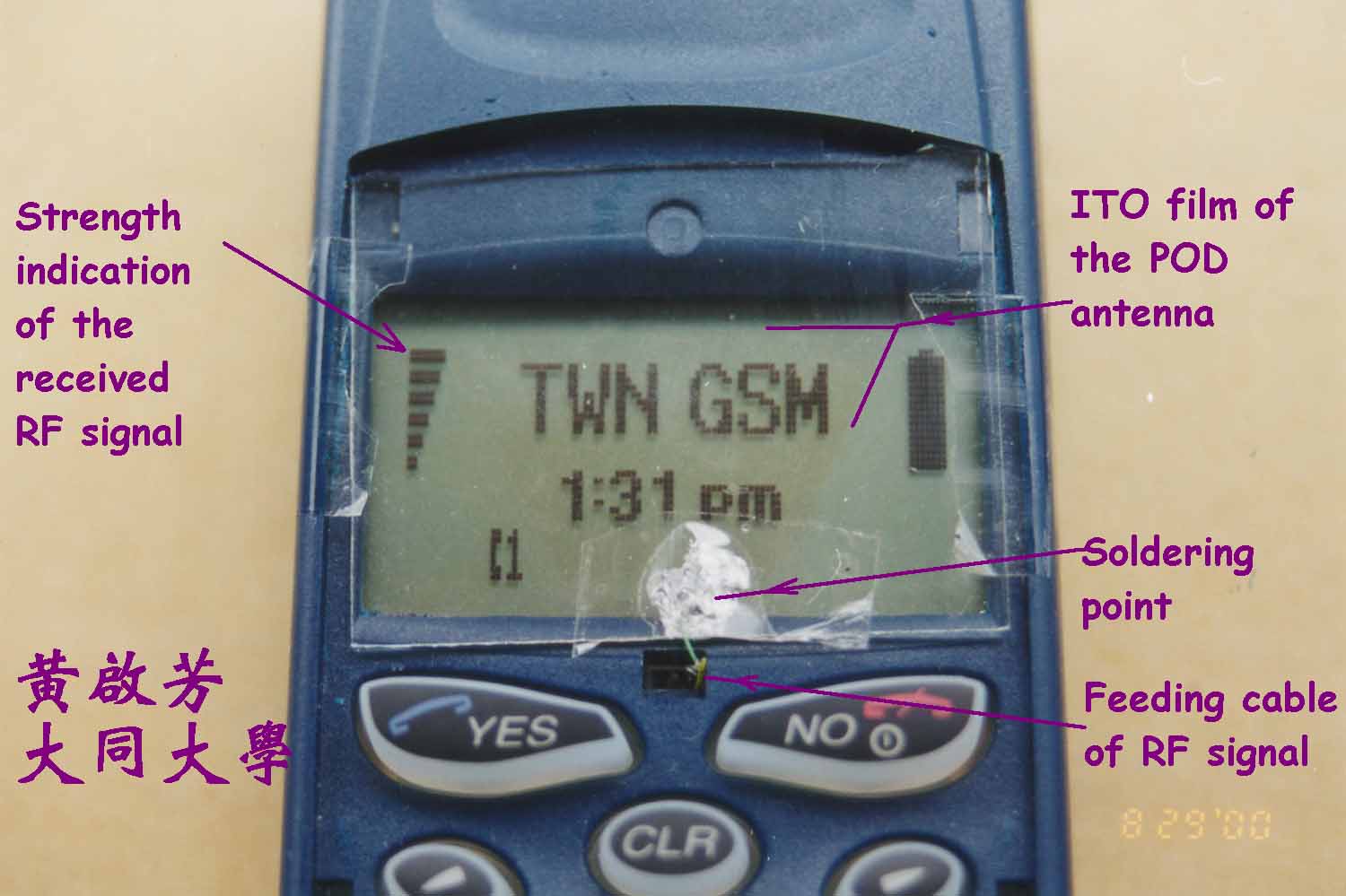

This is the first invention of making an optical transparent antenna on a display of mobile terminal. This work has been published in a paper.
A realized example

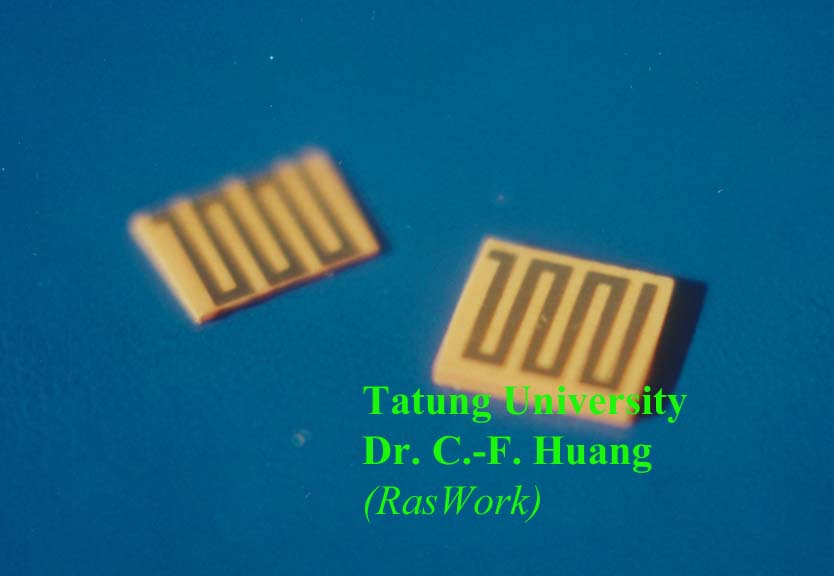

A brief report on how to manufacture the chip antenna by employing the traditional machinary process (in Chinese)
Realized examples

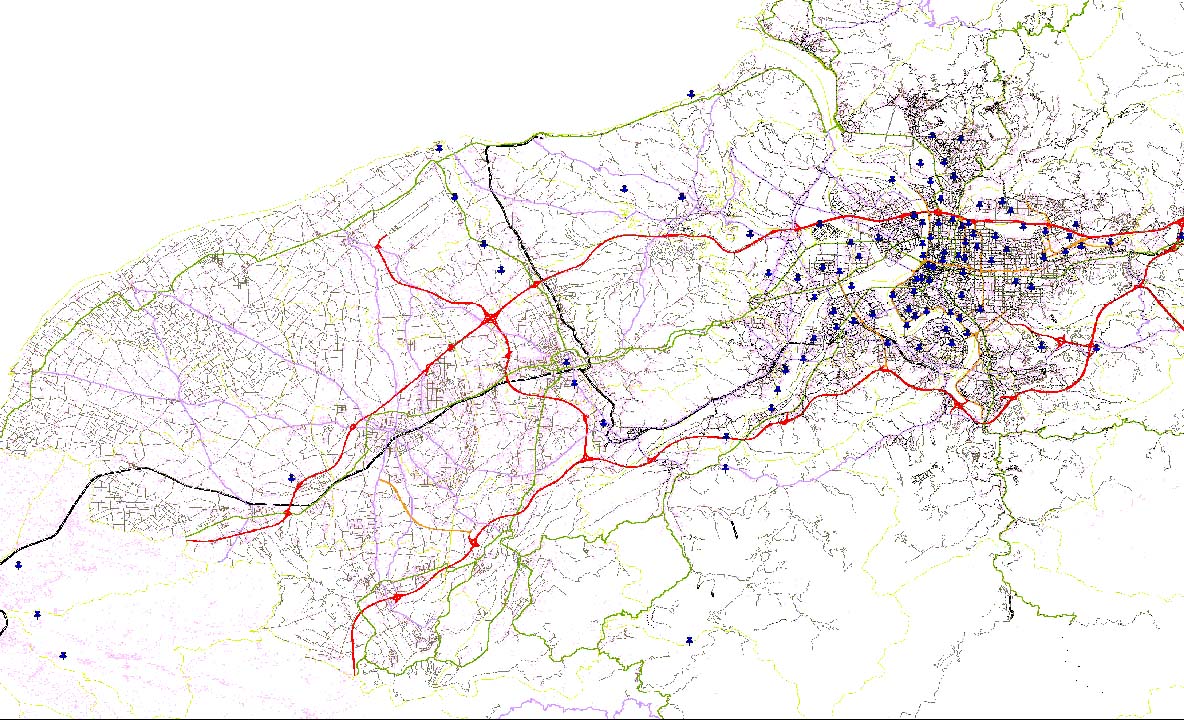

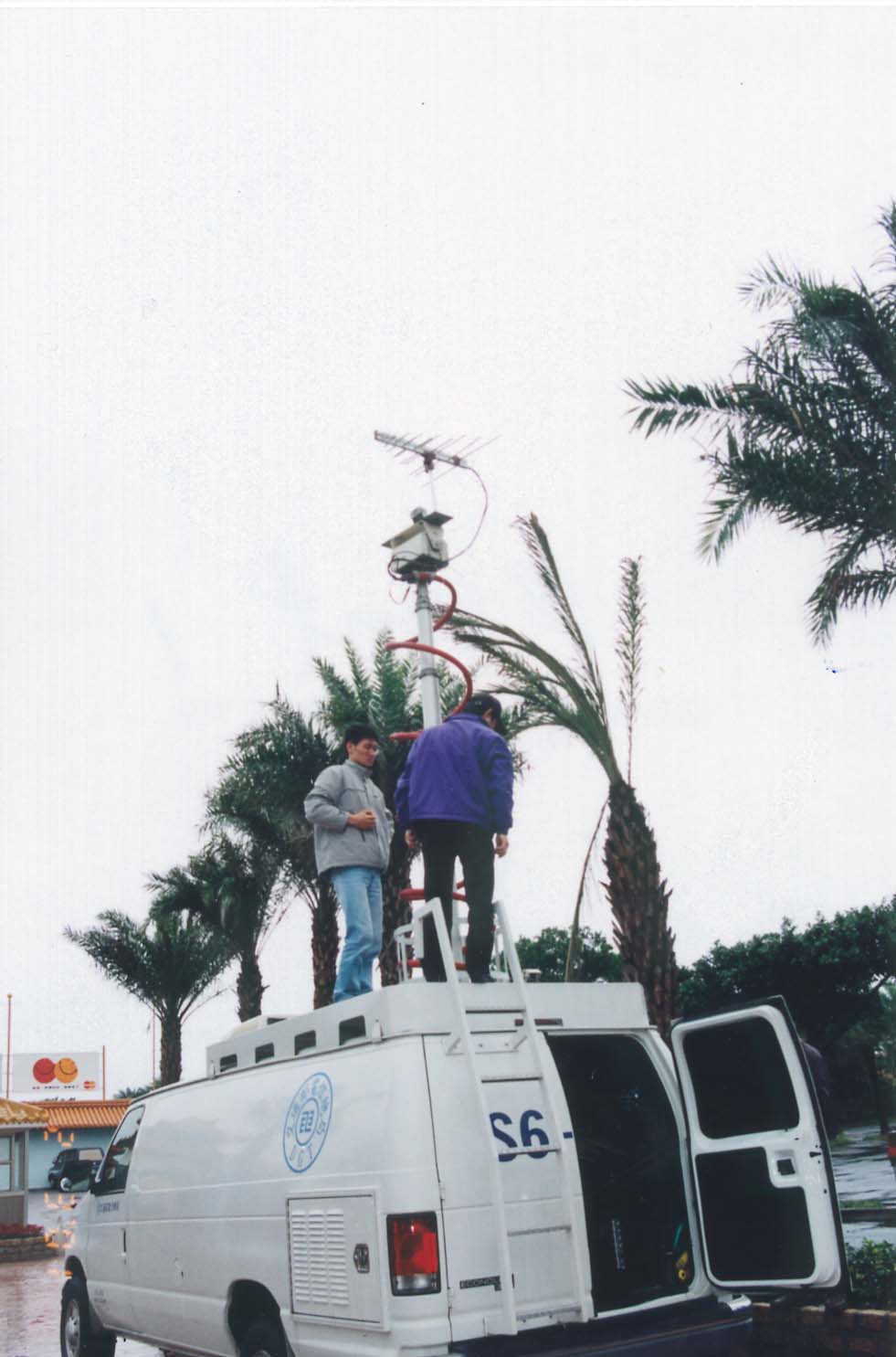

During Jan. to April of 2001, we have done a project of field measurement comparison between DVB-T and ATCS 8-VSB digital TV broadcasting ststems in the northen Taiwan. Based on the results, the current TV broadcasters have begun their deployment of DVB-T network. See the range (276k image) where we did measurement, and see the picture showing how we worked. A complete report (1.07 MB) could be downloaded here as well

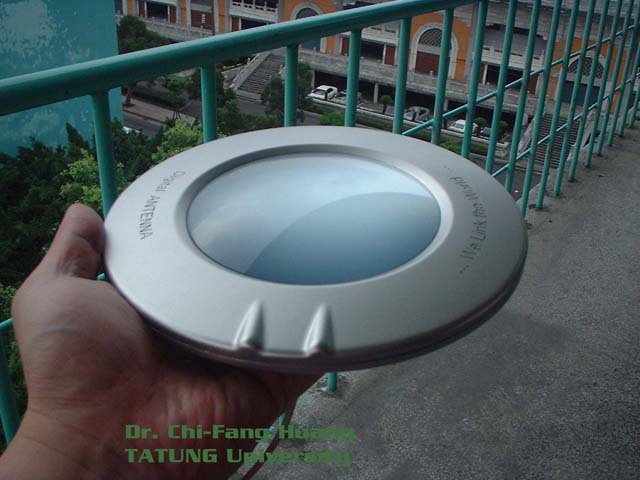

A OFDM DVB-T receiving compact antenna

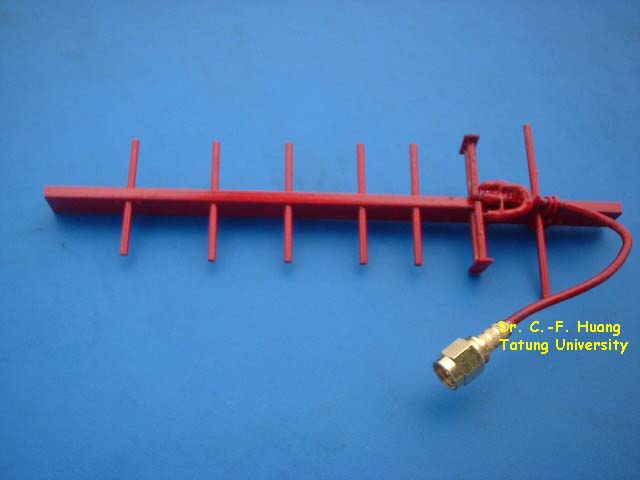

This Antenna is operating at a central frequency 4GHz and is for a special time-domain measurement application
Realized example

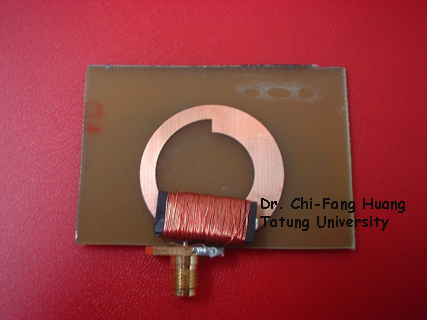

This Antenna is operating at a central frequency 27MHz and is specially for a PAN (Personal Area Network) application
Realized example

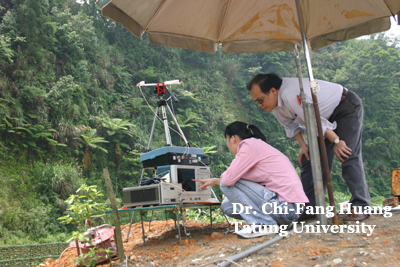

Based on a high-speed microwave pulse excitation in time-domain, this Radar is able to detect the water increasement in soil because of Debris Flow (土石流)
Field Test

UL>

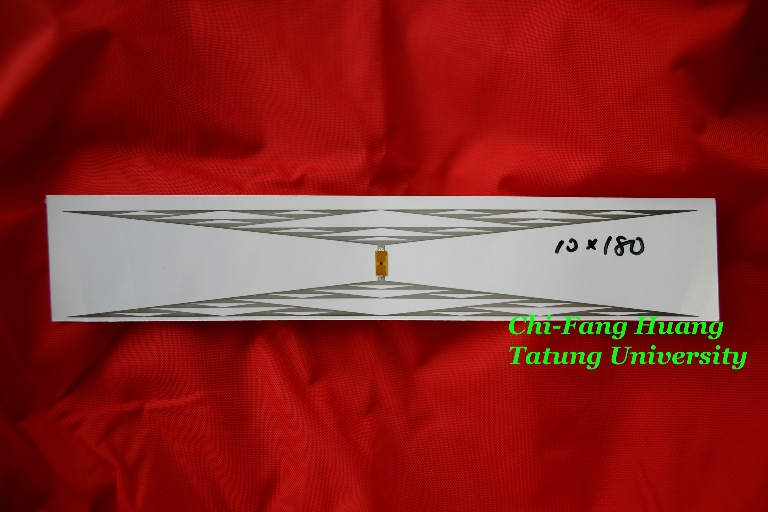

We have developed technologies for manufacturing low-cost printed RFID Tags by employing traditional printing approaches, namely, screen, offset and Gravure printing, etc.
Realized example
