| 1973 GMC Painted Desert 26 foot Motorhome For Sale: $6,000.00 obo |

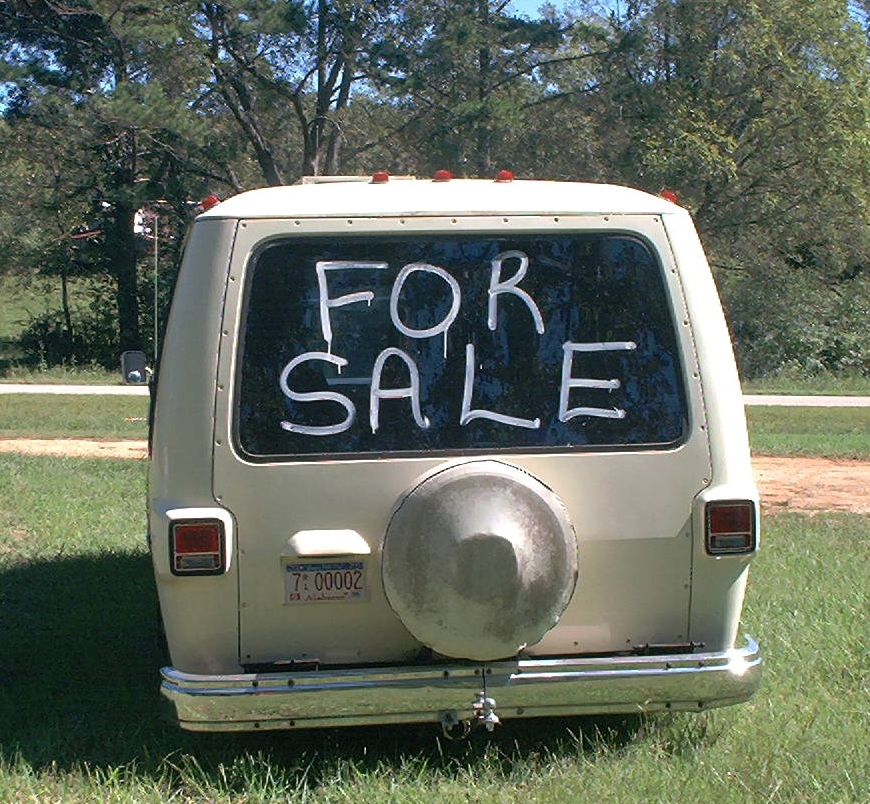

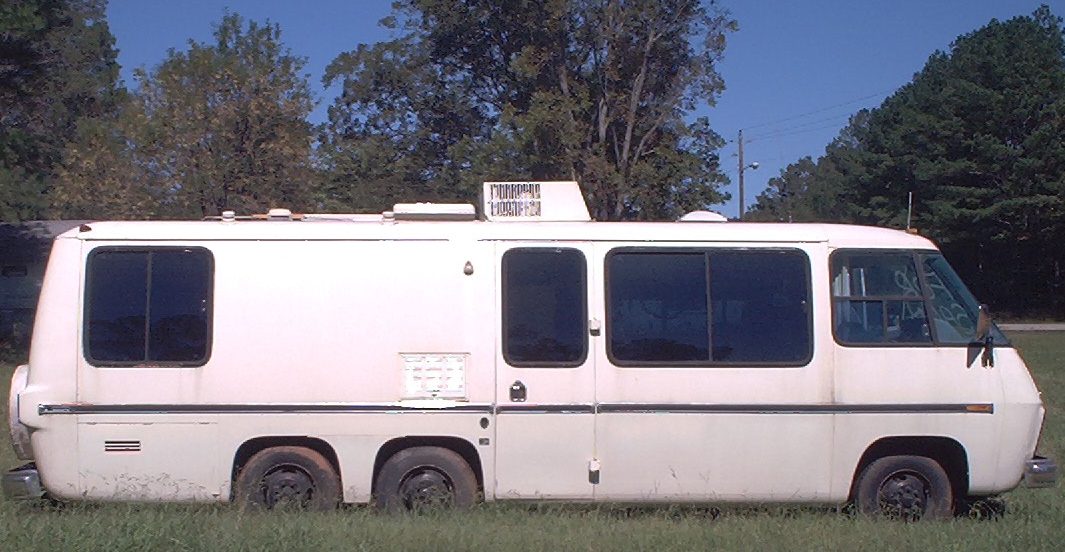

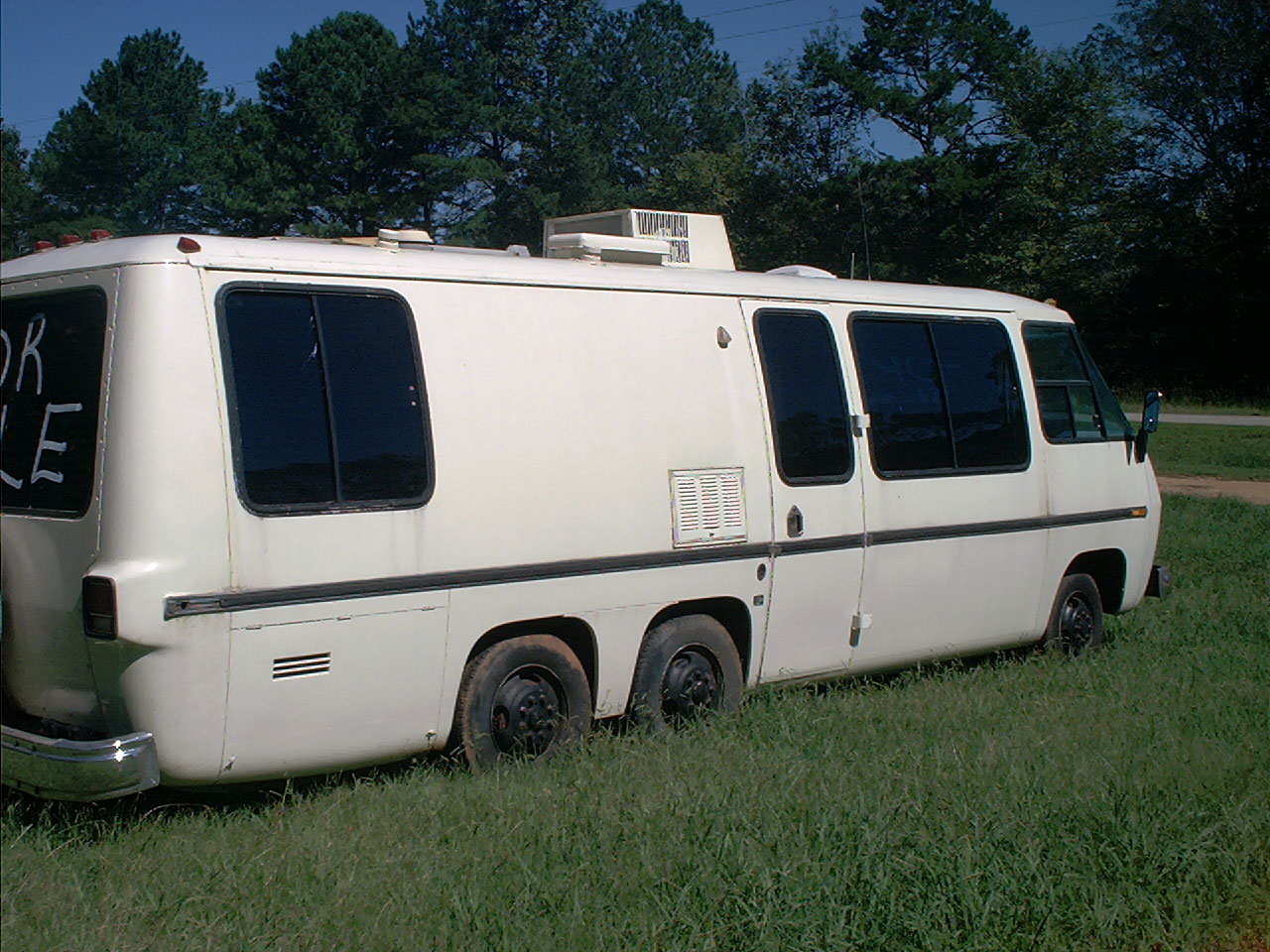

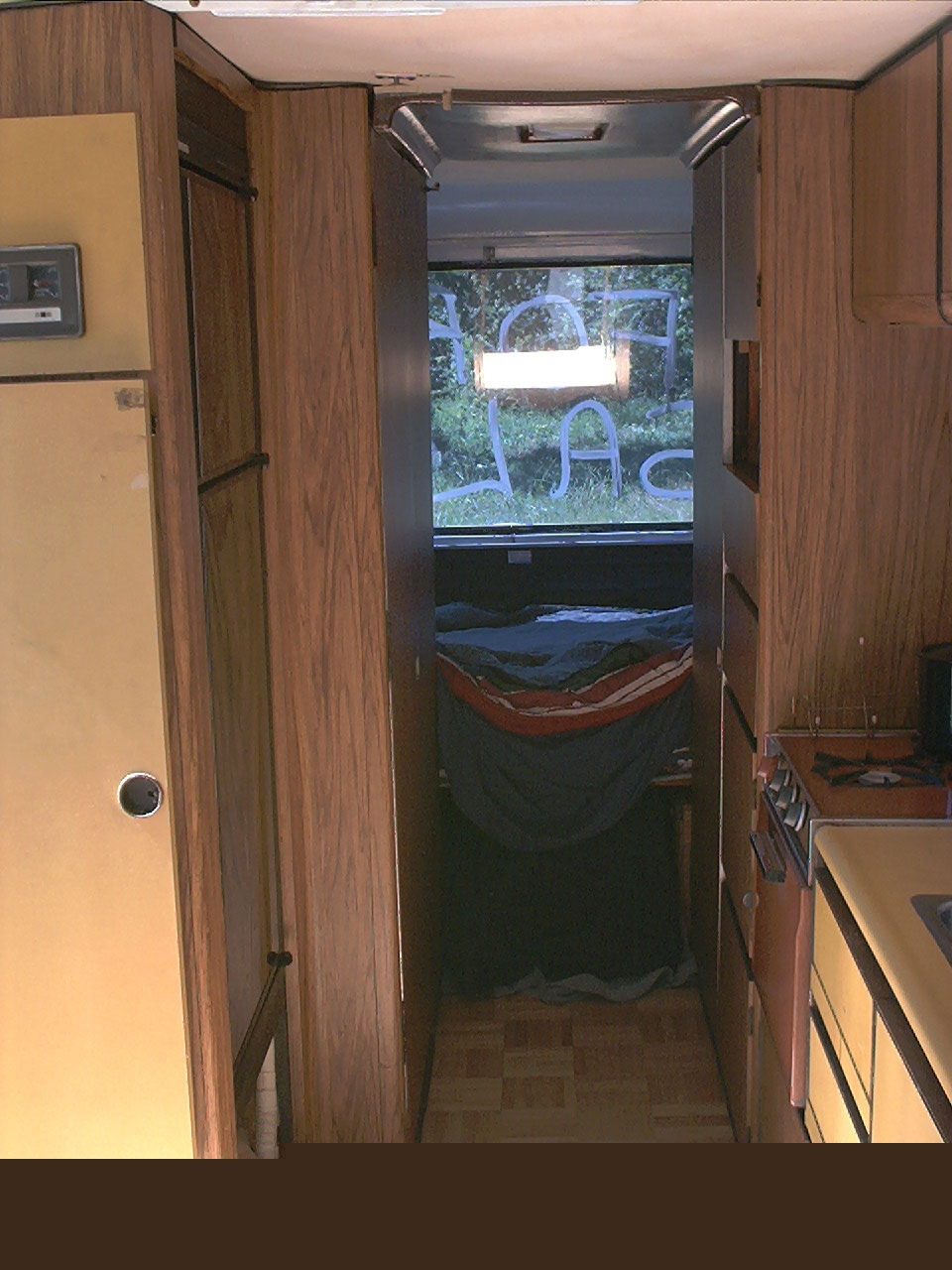

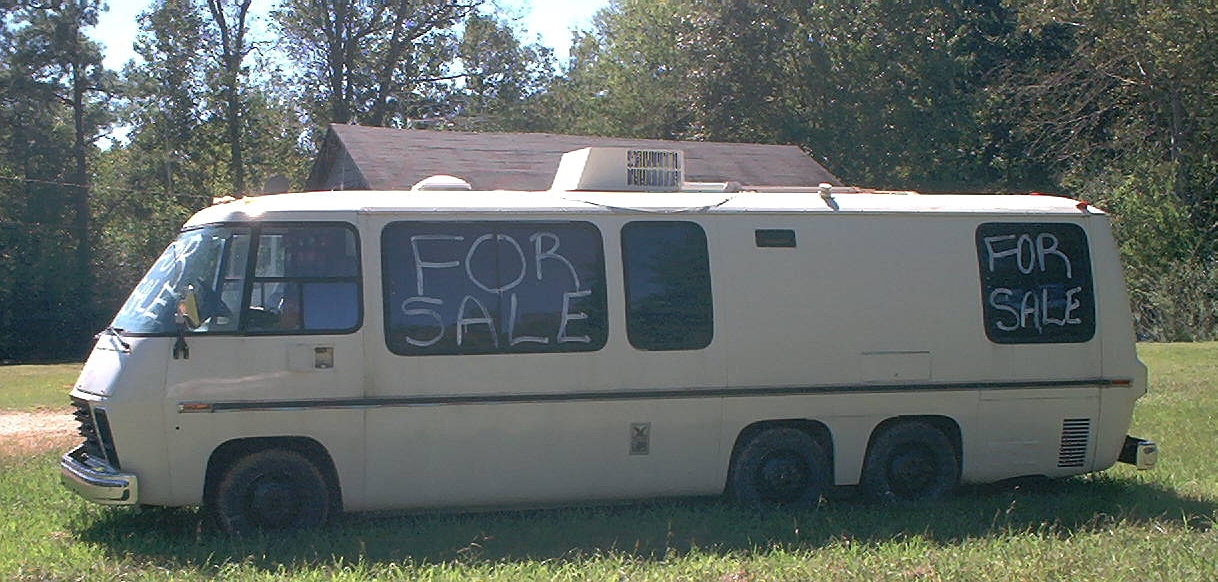

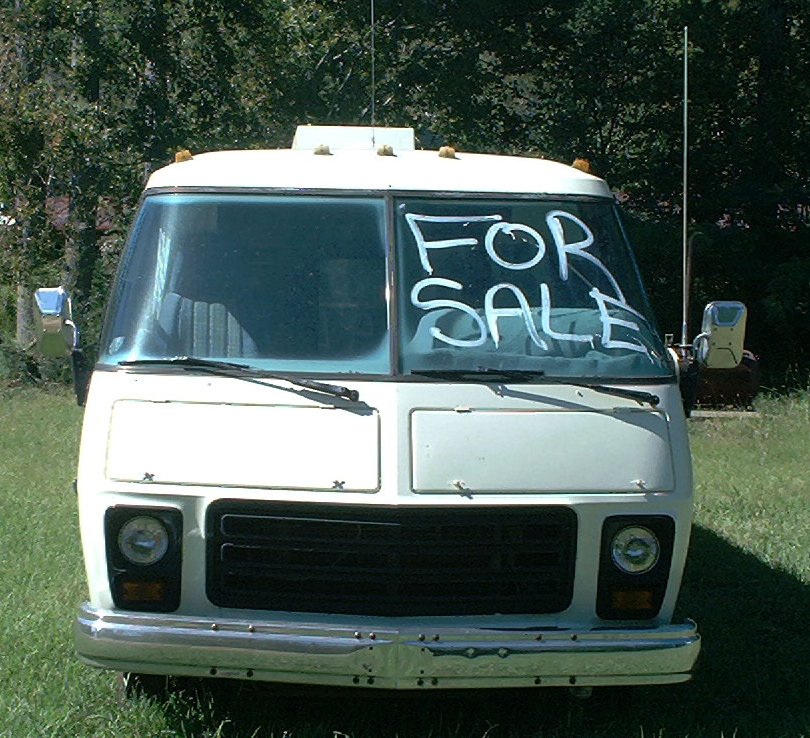

| Owners Description: Painted Desert 26 foot, less than 5000 miles on tires, 7000 miles on new transmission, year 2000 new power source, new batteries, 455 Oldsmobile engine 8 cylinders producing horsepower, 6000 watt Onan Generator with a new circut board. The transmission is a Automatic 3 speed and the drivetrain is 2WD. I am a mechanic, so it has been properly maintained and in perfect running condition. There are plenty of extra parts that comes with the motorhome. I have the original manual that came with the motorhome, parts manual, and factory repair manual. You can drive it anywhere, new front brakes, new front-end suspension, front-end has been rebuilt, new hubs, new bearings, new ball joints, new brake calipers, and much more. New carpet in the front and seating area, new parque wood tiles in kitchen and hall area. Specifications for this model are listed below contact information. You can see it all for yourself in the pictures below. |
| Engine: Gasoline: GMC 455, 8 cylinder, V-type. Net HP @ RMP (SAE). . . . . . . . . . . 265 @ 4300 Net Torque (lbs.ft.) @ RPM (SAE) 375 @ 2800 Comp. Ratio. 8.5.1. Air Cleaner: Oiled paper element. Cooling: Capacity: 21 qt tube and center radiator, 9 lb. pressure cap. All season coolant. (-20 deg.F), one 195 deg F thermostat, 19 in. 7 blade fan. Emission Control: Conforms to Federal Standards. Oil Filter: Throwaway type. 1 Qt. Engine Oil Cooler |
| Chassis: Frame. Ladder type welded frame with 6 x 2.50 x .125 channel SAE 950 side rails and SAE 1023 channel cross-members. Bumpers. Formed steel, painted silver, 2-piece front and rear. Energy absorbers - 2 front and 2 rear. |
| Fuel and Exhaust: Fuel Tanks. Two 25 gal. tanks w/fuel tank gauge selector switch. Exhaust. Dual mufflers and single tail pipe. |
| Transmission: Type: 3 Speed. Turbo Hydra-matic HMT-425. Ratios: (2.0 converter) 3.45, 2.25, 1.41, 1.00; Rev. 5.02 with H.D. cooler. |
| Rear Axle: Independently Suspended Tandem Wheels (non-driving), capacity - 7000 lbs. Air Suspension with leading and trailing arms. Two height control valves. Shock Absorbers. Four 1" Dia. |
| Front Axle: Torsion Bar Suspension. Rated capacity 4000 lbs. Shock Absorbers. Two. 1" Dia. Steering Intergral Gear Power Steering (17.5:1 ratio). Final Drive Ratio. 3.07:1. Number of wheel turns, lock to lock; 2.95. Turn. dia. curb to curb: 56.41 ft. |
| Brakes: Type. Disc front, Drum rear (4) Vacuum boosted, w/dual (split) system and a combination valve which differentiates, meters and holds off front brake pressure until rear brakes contact the Drums. Effective Brake Lining Area. Front. . . . . . . . . . . . . . . . . . . . . . . . . 37.88 sq in. Rear. . . . . . . . . . . . . . . . . . . . . . . . . 167.00 sq. in. Brake Size. Front (Disc Type). . . . . . . . . . . . . . .11" x 1.205" Swept Area per Axle (Sq.In). . . . . . . . . . . . .210 Rear (Drum type - 4). . . . . . . . . . . . . . . . 11" x 2" Swept Area per Axle (Sq. In). . . . . . . . . . . . .138 Total Swept Area. (Sq. In.). . . . . . . . . . . . . . 486 |
| Body: * Substructure. Heavy Gauged Alum. Extrusions. * Body Materials: Fiberglass Front & Rear Caps & Lower Side Panels. Alum. Upper Side Panels & Roof. Insulation: Front & Rear Caps. Wood Cellulose Fiber. Main Body. Sprayed in Place Urethane Foam. 1" Treated Plywood Floor. 28" wide Side Door. * Windows.Windshield - Two Piece Laminated Tinted. Driver Compartment/Side Windows - sliding laminated. Living Area Windows - Two, screened & sliding. Galley & Entrance Door Windows. Bedroom Side Windows - Two screened & sliding. Bedroom Rear Window - One Piece Solid Tempered. Has Pop Out Escape Feature. |
| Environmental Equipment: * Heating. LPG Furnace - 22,000 BTU (Forced Air). * Ventilation. Front Roof Mounted & Bathroom Gravity Ventilators. * Fire Extinguisher - 2 1/2 lbs. * Water Supply. 40 Gal. Polyethylene Tank with 12V * Demand Water Pump. 6 Fill-Cap Door.Gal. 110V * Hot Water Heater. City Water Hook-Up System with locking Disposal. * 32 Gal. Polyethylene Tank. * 12V DC Electrical system with 30 Amp AC/DC * * Battery Converter/Charger. 110V AC * 25 ft. 40 Amp. Power Cord. * LPG - 44.5 lb. Propane Tank. |
| GMC SPECIFICATIONS |
| Body Substructure: Heavy Gauged Alum. Extrusions. Body Materials: Fiberglass Front & Rear Caps & Lower Side Panels. Alum. Upper Side Panels & Roof. Insulation: Front & Rear Caps. Wood Cellulose Fiber. Main Body. Sprayed in Place Urethane Foam. 1" Treated Plywood Floor. 28" wide Side Door. |
| Interior-Interior Electrical: All Lights 12V - Located as follows: Dinette - (2) One L.H Side - One R.H. Side Corridor - (1) Range Hood - (1) Door Courtesy - (1) Sink - (1) Rear Compartment - (2) Bathroom - (2) Duplex Outlets - 110V (4) |
| Interior Finishing: Walls & Roof insulated w/foamed in-place Polyurethane. Ceiling - Vinyl covered Composite Panel. Paneling - 3/16" Vinyl covered Wood Panel. Drapery - All Windows except Windshield and Driver Compartment Side Windows. Driver Compartment Divider Drape. Carpet. |
| Driver & Passenger Compartment: * Adjustable contoured Driver & Single Passenger Swive * Seats w/Armrests & Seat Belts. * Two painted Outside (7 1/2 x 10 1/2) Fold-away Mirrors. * Left & Right Hand Sun Shades. * Two Ash trays. * Dome Lamps - Driver & Passenger. * Safety padded Dash. * Automotive Heater & Defroster. * Glove Compartment. * Map Pocket - Driver & Passenger. |
| Instruments & Controls: Windshield Wiper/Washer (Hydraulic Wipers). Variable-speed. Heater & Defroster, Lighter, Speedometer, Fuel, Temperature, Oil, Gen. Gauges. Brake Warning Light. Key Buzzer Warning System. Telltale Light - Door Open. |

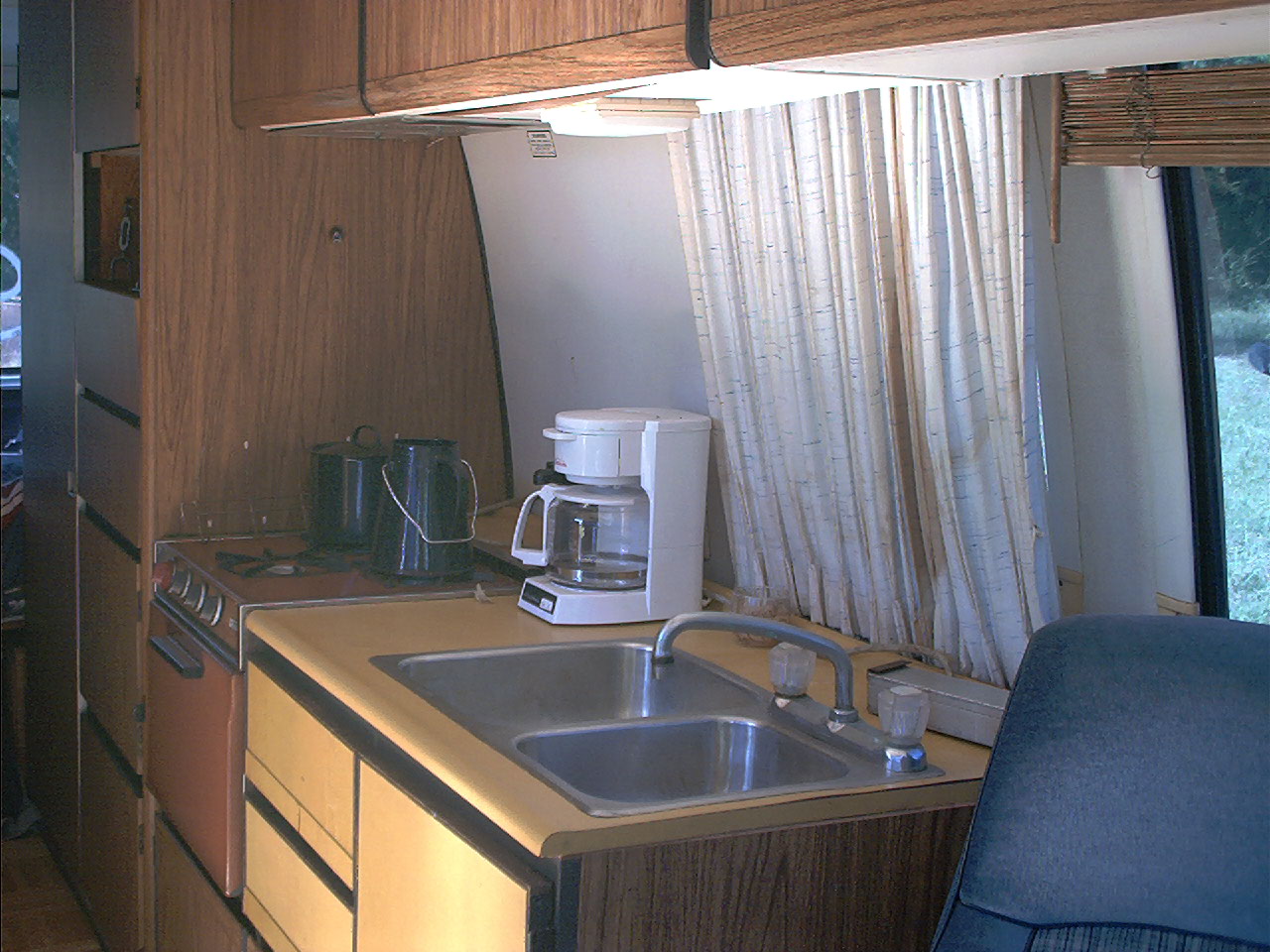

| Galley Area: Refrigerator - 6 cu.ft. All Electric. 12V/110V Range - 3 Burner with Oven & Hood. 12V Fan & Light. Sink - 17" x 24" Stainless Steel Dbl. Bowl w/Ledge Back & Swing Spout Faucet. Cabinets - Under and over sink & refrigerator. |
| Rear Bedroom: Permanent Double Bed. Storage Locker. Upper Cabinets on each side |
| Bathroom: Two Piece Milled Fiberglass Reinforced Plastic w/Shower & Curtain. Sink and Faucet. Medicine Chest w/Mirror. Thedford 41 Aquamagic Toilet. |
| Hall: Storage Comp. (Closet, Three Drawers & 2 Doors). |
| Electrical: Battery. 2-12V 73 amp. hr. Alternator. 12V, 61 amp. Delcotron. Lights. Headlights -Single 7" High Intensity. Amber Frt. Turn Directionals. Combination Stop, Tail, Turn & Backup Rear Lights Five Amber (2 Clearance, 3 Identification) Marker Lamps Upper Front. Five Red Marker Lamps Upper Rear. Side Markers (Front & Rear with Reflectors - Front Flash with Turn Signals) 4-Way Emergency Flashers. Porch Light. |
| Wheels - Tires: Tires. (6) 8.75 x 16.5 (D Load Range) Blackwall. Max. Tire Capacity (Ea.) 2350. Wheels. 16.5-6K. 8 sud with 6 1/2" bolt circle. Offset: 4.67" |
