Free MOD !!! Brought to you by SK Race Development
Making your rear anti roll bar stiffer on your celica VVTi VVTLi / GT GTS
1. Get both your rear wheels from the floor and remove the wheels

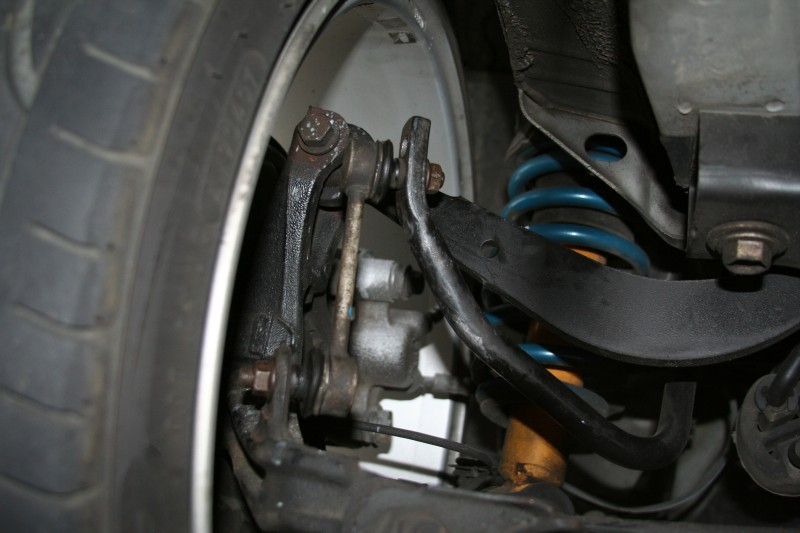

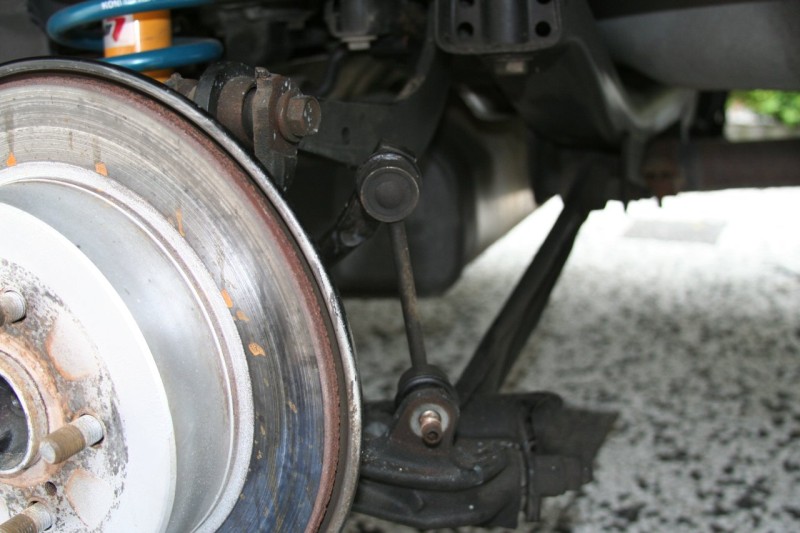

2. Remove the Links From The anti roll bar and rear suspension on both sides. (link see Pic1&3)

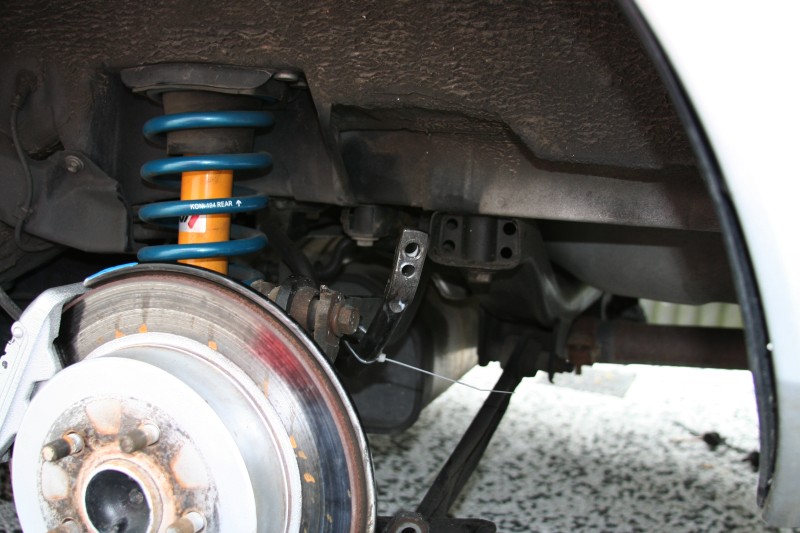

3. Then wrap the anti roll bar against the rear suspension with a tie-wrap (see pic2)
4. Then start drilling a hole under the original hole, begin small and go up to 10mm in small steps.
( the space between the holes i used is 11mm (edge to edge) the hole its size is 10mm)
5. Remove the tie-wrap, re-attatch your links to he new drilled hole's and put everything back together
and you got a free stiffer rear anti roll bar (pic3) (Do the same on both sides ofcource all steps!)
The Effect on handling : The car feels more stable and turns in better, also it makes the cornering speeds higher!
Less overall understeer and ofcource more fun to drive you can even kick the back out more easy if you want.
and if you really race and just go for the raceline it just turns in quite a bit better, makes my cd player skip in some of my test corners. That never happend before^^, its a free mod and its defenitly worth it !!! |
