| Back-end Disassembly | |||||||||||||||||||

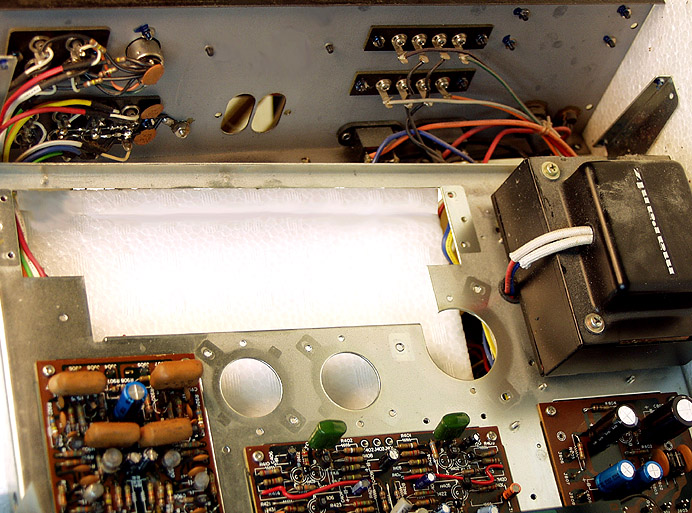

| Now we get to the back-end. It's most of the way down here... | |||||||||||||||||||
|
|||||||||||||||||||
|
|||||||||||||||||||
|
|||||||||||||||||||

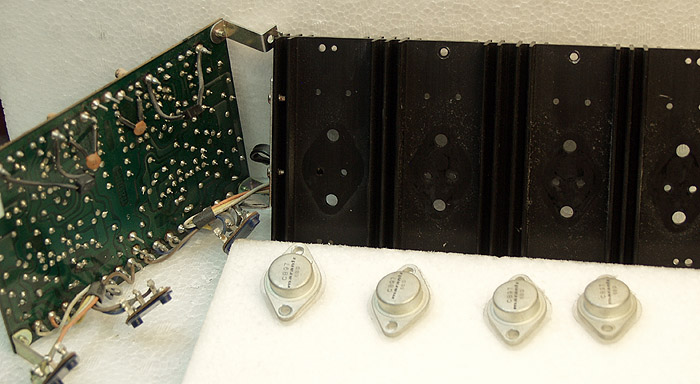

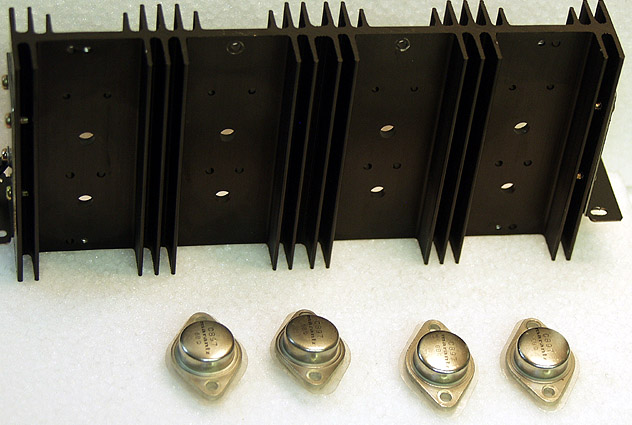

| Amp sections... stripped down and ready for work. Heat-sync and trasistors have been cleaned up here -> |
|||||||||||||||||||

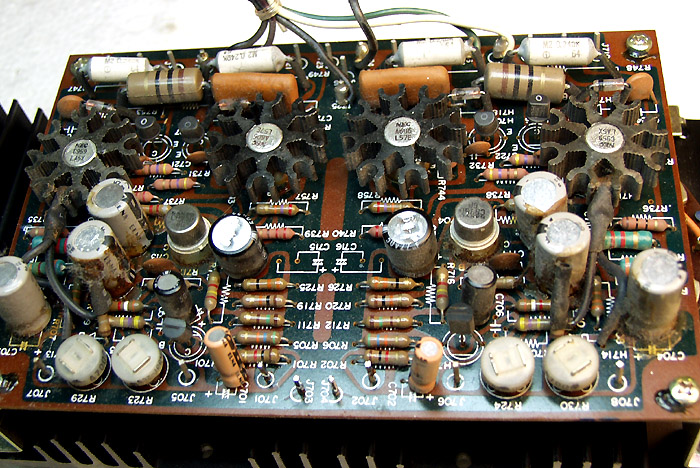

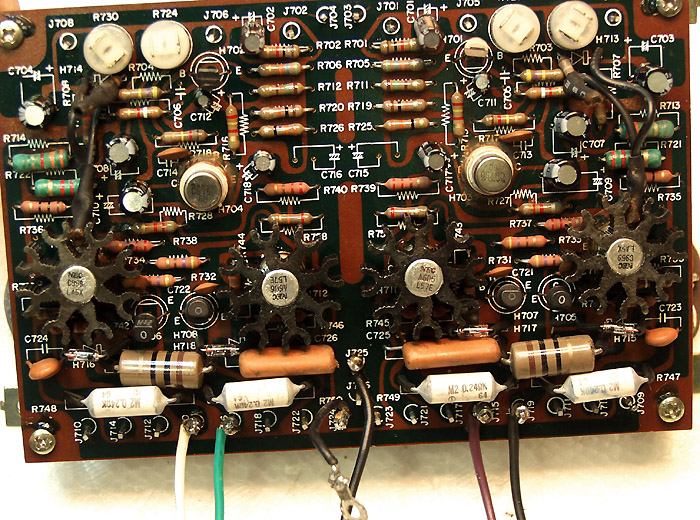

| Here is a picture of the amp board prior to work. Minor dust, but lots of old caps and glue... and one hidden problem.... In the lower picture, it's all cleaned up, complete with new lead wires. I replaced the lead wires so I could route them differently... More on that later. | |||||||||||||||||||
|
|||||||||||||||||||
|
|||||||||||||||||||
