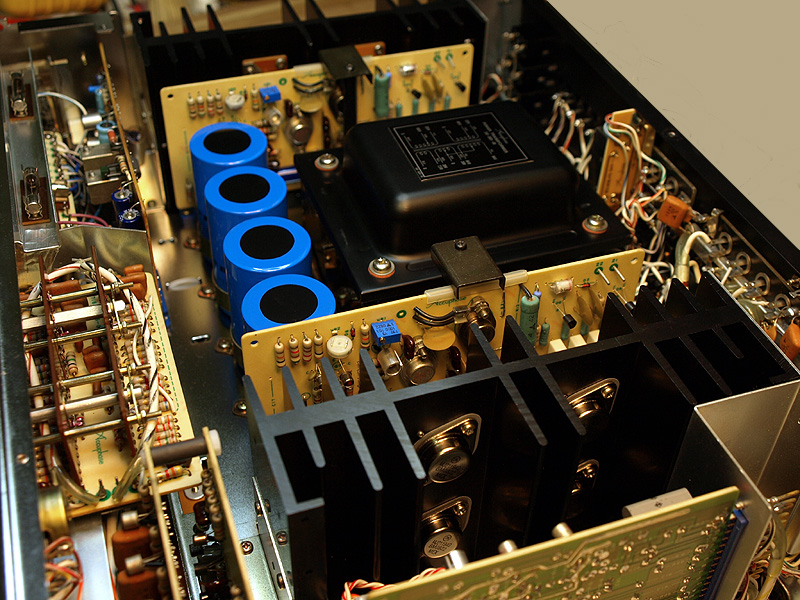

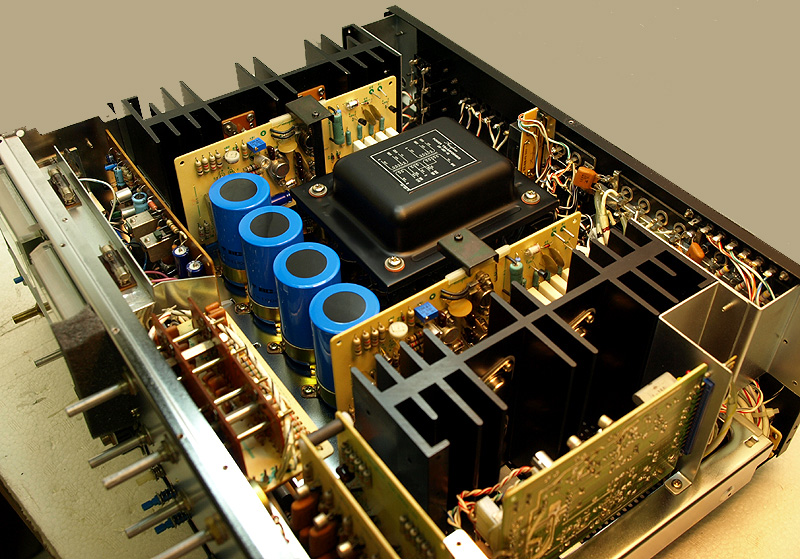

Here is a couple of beauty shots of the inside... |
|
|
|
 |
|
|
|
 |
|
|
 |
|
|
|
|
|
|

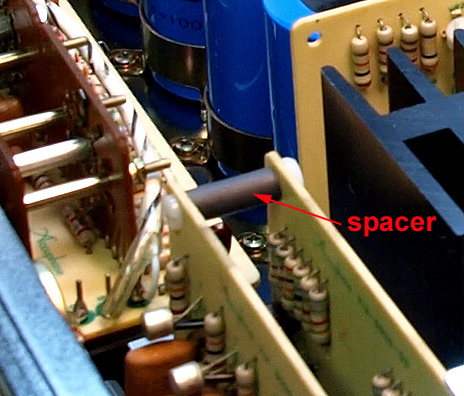

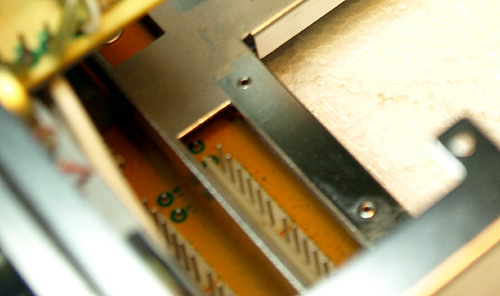

Notice the nylon spacer I placed between the tone control and filter amp boards. These plug into a plastic socket in the push-button board. Not a hard plastic interface mind you, but a standard plastic pronged plug.... |
|
|
|
 |
|
|
|

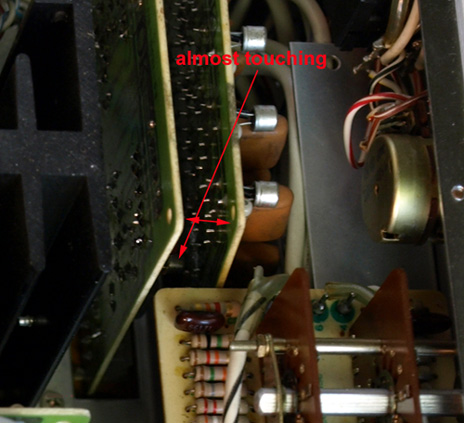

These flex and move and "settle-in" over time if presure is applied. The presure in this case was caused by a foam pad on the inside of the shield (cover) that pressed on the board to keep it form touching the metal shield. The two board sat dangerously close. The metal cans of the transistors were just fractions of an inch from the board in front. This spacer will resolve possible problems and restore proper geometry. |
|
|
|
|
|
 |
|
|
|
