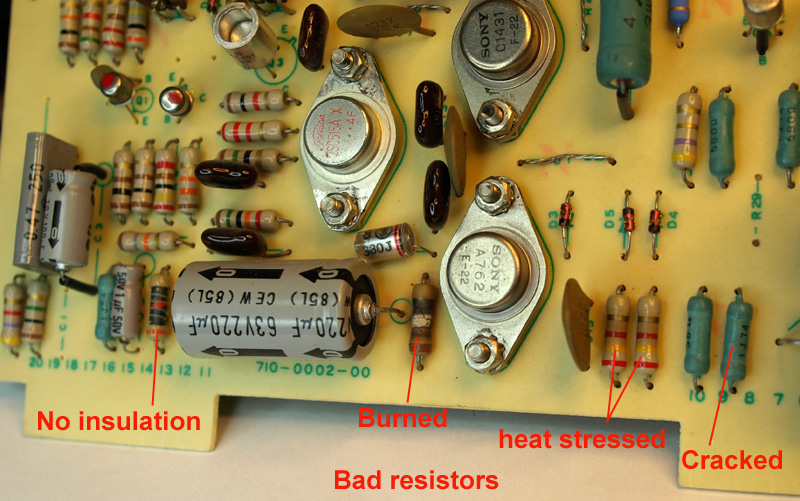

Here I have started work on the left channel output board. I have replaced one resistor (upper right next to the [bad] driver tansistor), and pulled the emitter resistors. You can see the extent of the damage...

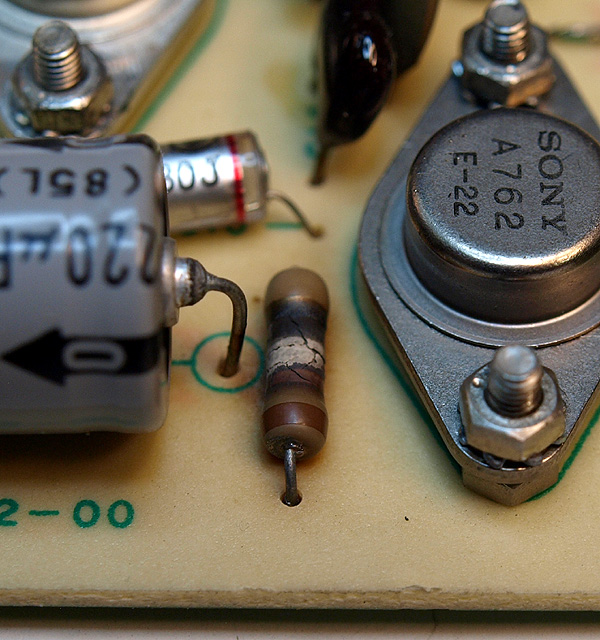

Smoked....

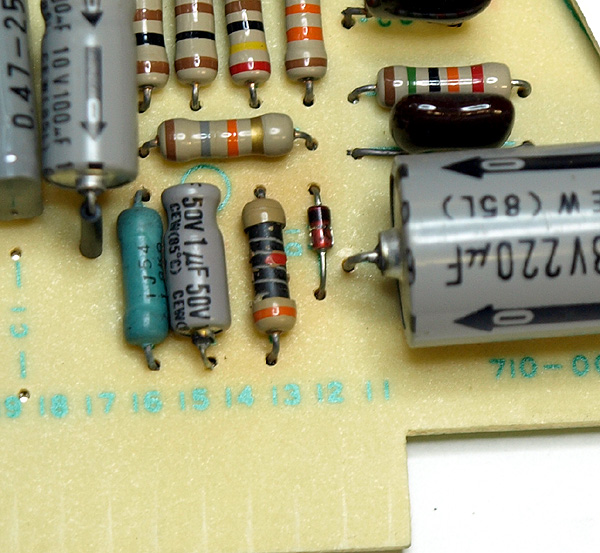

Strange... resistor was still good, but the ceramic insulation had fallen off. I found several like this on other boards as well.

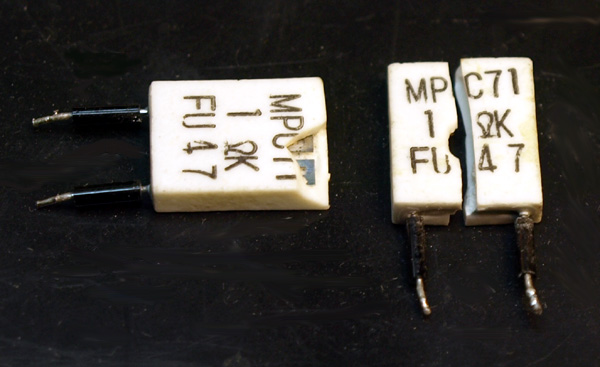

These are the cracked emitter resistors. These are known as "Metal Plate" resistors. I have never seen this before, however, not long ago another non-working E-202 showed up on ebay. The seller had pictures of the output boards and they had the same cracked emitters. I suspect these are the cause of the original melt down.  I think this component is prone to failures over time.

My theory goes like this:  The ceramic jacket stresses with heating and cooling and finally cracks and chips. Once the metal plate is exposed it loses its ability to disapate heat and starts to "cook", until it fails.

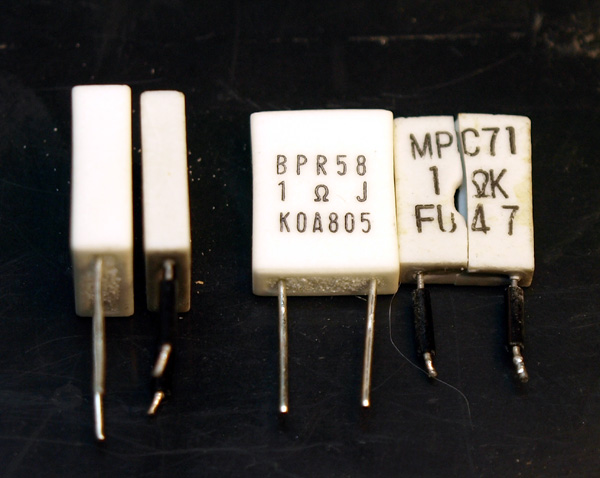

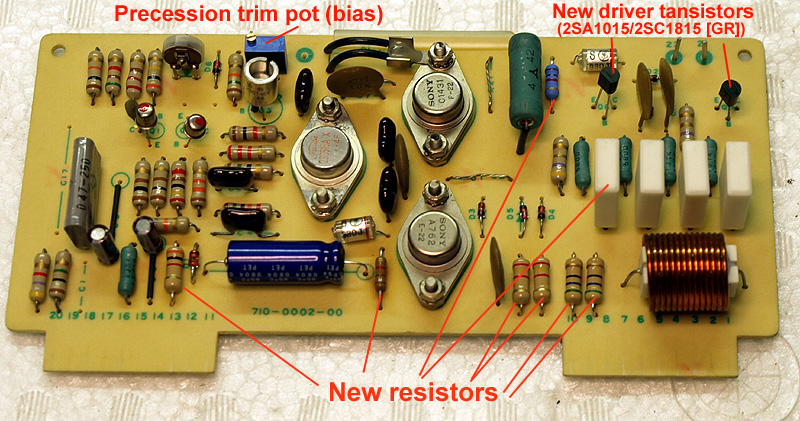

The originals are 3W. I have a brand new set of KOA 5W replacments Installed on both boards,

Generally, I always make the same change to both sides of the amp... what is done to one side, is done to the other.  This is to ensure that there is a componets to component match across each channel.
