1.6(b) Pinheader Install Guide | ||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||
1. Disassemble the xbox | ||||||||||||||||||||||||||||||||||
Find the lpc this is where you will be working | ||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||

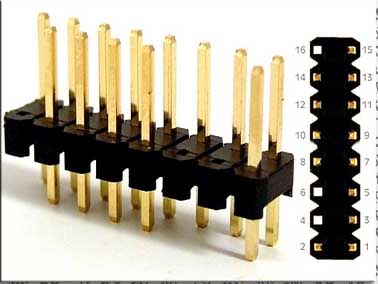

2. Place the pinheader in? the lpc make sure that pin 4,6, & 16 | ||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||

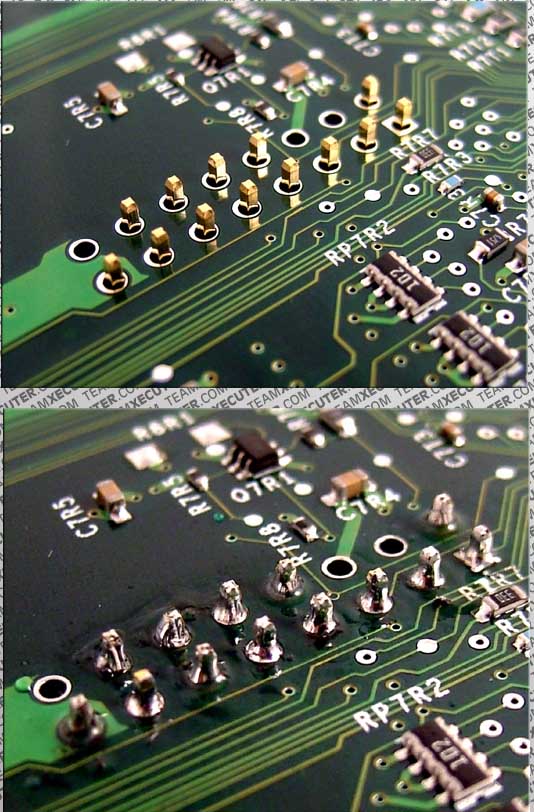

3. Then soldier the pins in to the holes tip: flux helps alot and makes it neat |
||||||||||||||||||||||||||||||||||

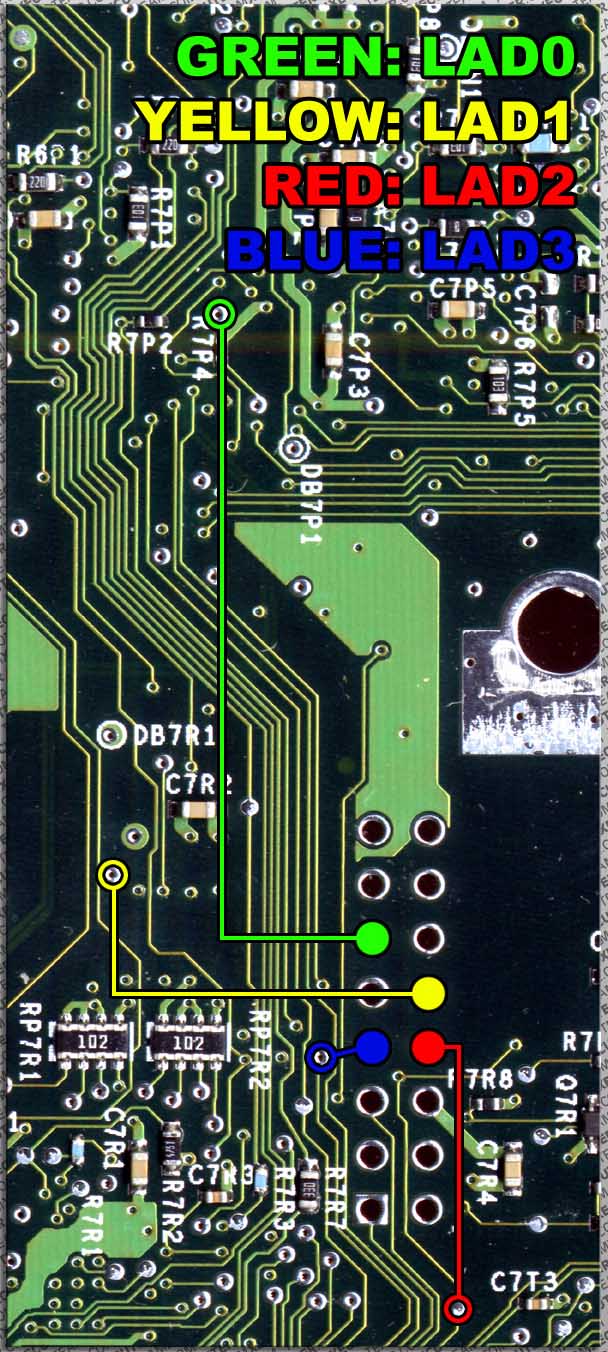

4. Rebuild the lpc | ||||||||||||||||||||||||||||||||||
There are two ways to do this | ||||||||||||||||||||||||||||||||||

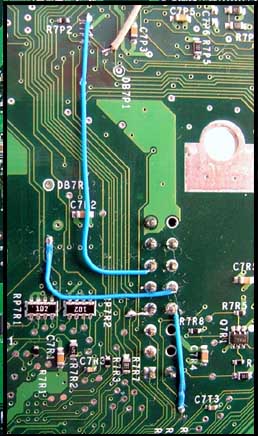

?Wire Rebuild | ||||||||||||||||||||||||||||||||||

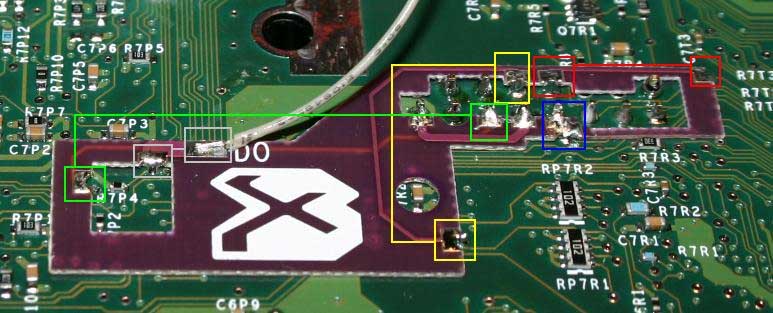

Rebuild PCB | ||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||
![]() |
![]() |
|||||||||||||||||||||||||||||||||

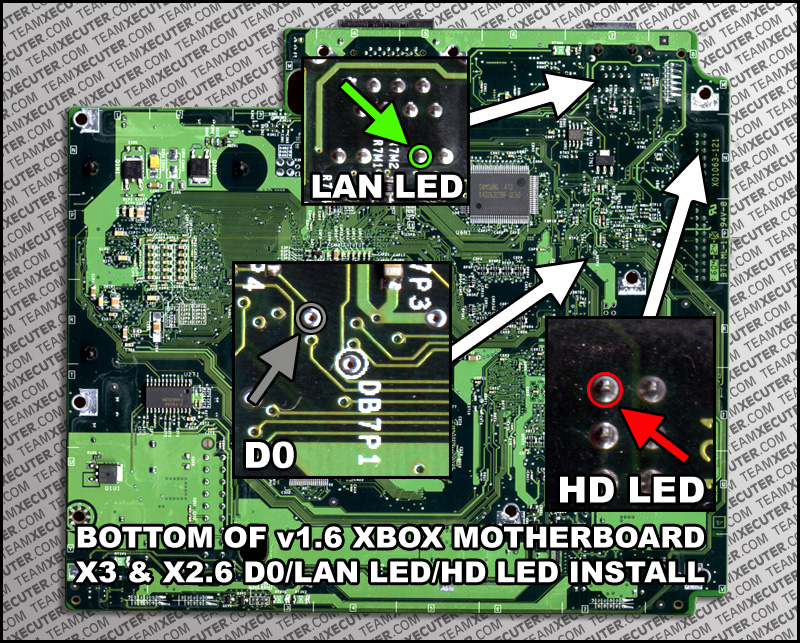

5. once your done this time to install the hdd&lan led wire and d0 wire. After your done put some eletric tape of the points or hot glue. | ||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||
