1.0-1.5 Pinheader Install Guide | ||||||||||||||||||||||||||
1. Disassemble the xbox | ||||||||||||||||||||||||||
Find the lpc if you have a 1.0-1.1 motherboard then you have to remove the soldier | ||||||||||||||||||||||||||

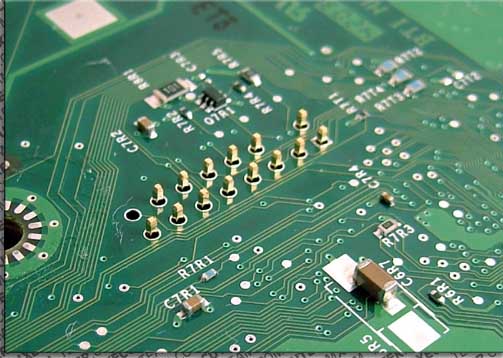

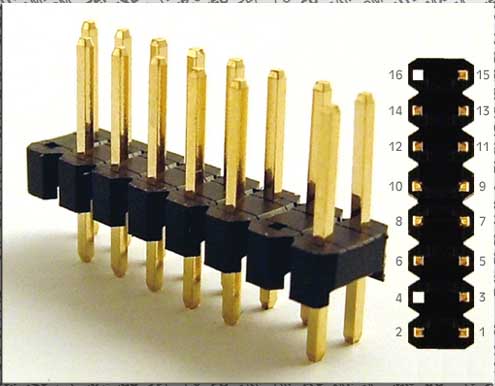

2. Place the Pinheader in the LPC make sure that pin 4 & 16 are removed | ||||||||||||||||||||||||||

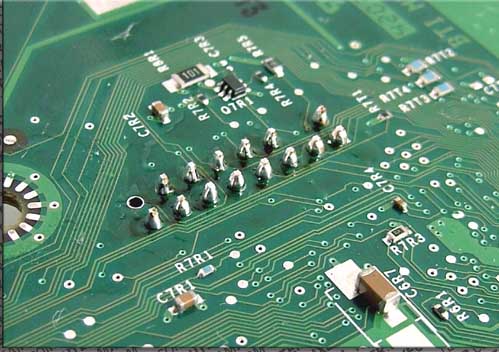

3. Soldier the pins to the holes. tip: flux helps alot and makes it neat |
||||||||||||||||||||||||||

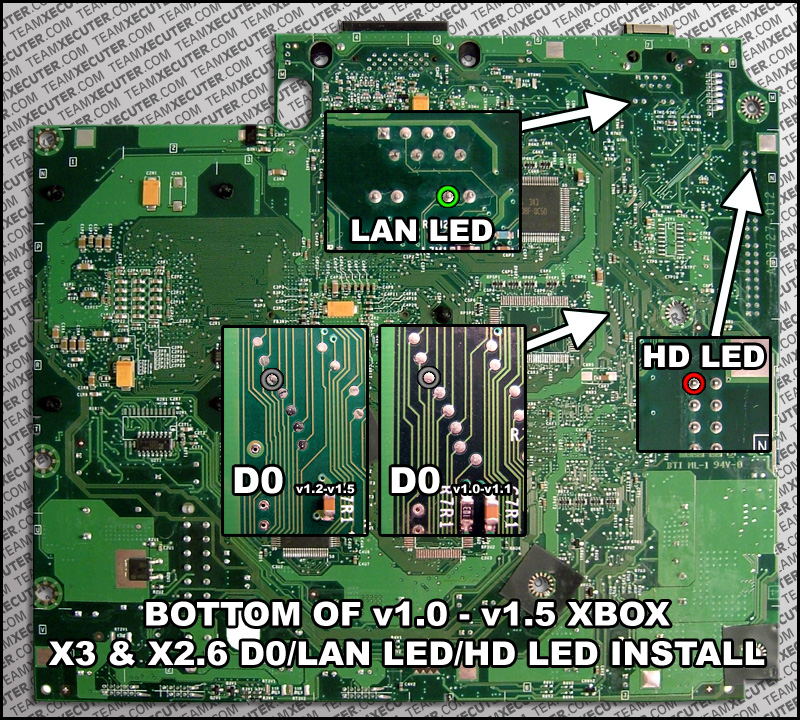

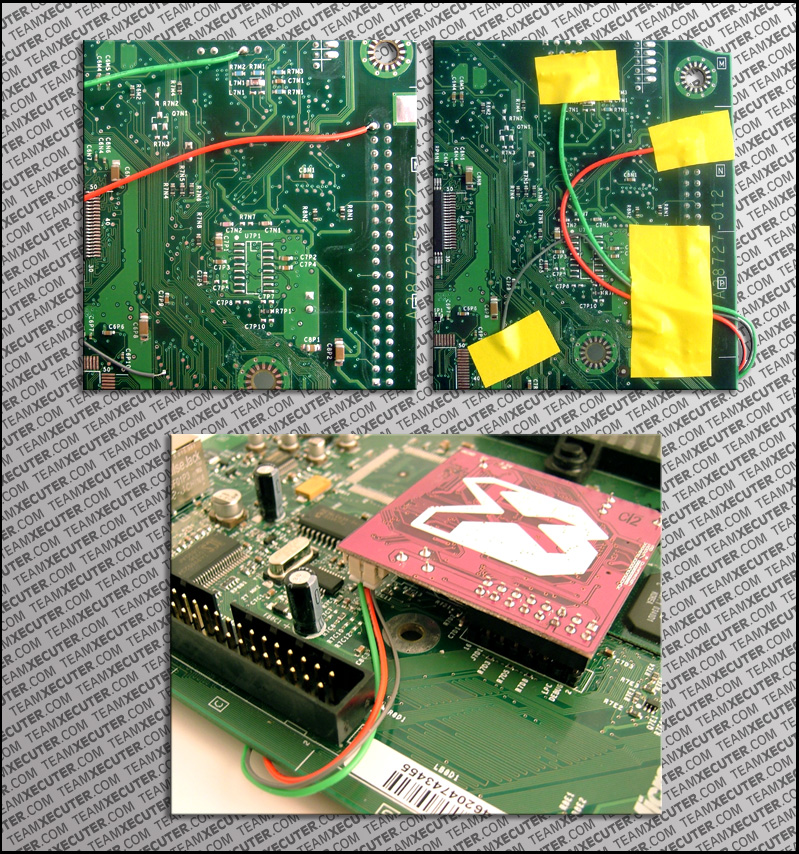

4. Now you need to soldier the lan&hdd led wires and the d0 wire After your done put some eletric tape or hot glue over the points | ||||||||||||||||||||||||||
5. Then plug it in to the x3 connetor for it | ||||||||||||||||||||||||||
