WESTLAND
HELICOPTER
WHIRLWIND WS-55 |

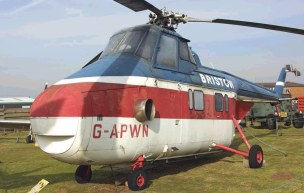

Westland Whirlwind Srs.3

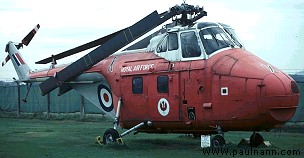

Westland Whirlwind HAR.10
|
El primer S-55 recibido
por la Royal Navy en 1950 fue construido por Sikorsky, pero Westland adquirió
la licencia ese mismo año y el primer S-55 construido por los británicos
voló en Yeovil en noviembre de 1952. Al igual que los modelos americanos, el
primer Whirlwinds tenía motor Pratt & Whitney y fueron entregados al
escuadrón No.705 basado en Gosport. La RAF ordenó este
helicóptero como transporte y para misiones de rescate: los Whirlwind HAR
Mk.2 (la misma versión naval excepto algunas diferencia en equipo) se unió
al comando de Transporte en 1955. Con el motor Wright R.1300, el Whirlwind
Mk.3 entró en producción para la Royal Navy en 1953 y operó por muchos años
tanto desde barcos como desde tierra. El siguiente modelo de la RAF, el HAR
Mk.4 fue modificado para el uso en el trópico y se le puso un motor
Pratt & Whitney R-1340. Fue utilizado en Malasia. Cuando Westland comenzó
la construcción del S-55, especificó que usarían el motor americano
hasta que se encontrara uno mejor británico. Para cumplir con este
requerimiento, Alvis desarrolló un motor doble radial llamado Leonides Major,
el cual entregaba 882 HP limitado a 750 HP. El remotorizado Whirlwind voló
en 1955. Luego fue seguido en 1956 por el modelo Mk.7, versión que
intentaba reemplazar al viejo Fairey Gannet en la versión
antisubmarina. Mientras tanto,
Westland tenía pensado adaptarle una turbina, para esto utilizó la General
Electric T.58 y luego la mas potente D.H. Gnome. Los helicópteros potenciado
con turbina, Whirlwind Series 3 volaron por primera vez en febrero
de 1959, introduciendo un nuevo diseño en la trompa la cual ofrecía mejor
visibilidad para los pilotos que la versión con motor a pistón. El Whirlwind
Series 3 puede transportar 10 personas o seis camillas. La RAF adoptó la versión
Whirlwind Mk.10 en abril de 1960. Mas de 400 Whirlwind fueron
construidos de los cuales cerca de 100 fueron exportados a países tales como:
Austria, Brasil, Canadá, Cuba, Francia, Ghana, Jordania, Irán, España,
Yugoslavia, etc. Variantes
|
|
The first S-55s received by the Royal Navy in 1950 were built by Sikorsky, but Westland acquired a license in 1950 and the first British-made S-55 flew at Yeovil in November 1952. Like the American models, the first Whirlwinds had Pratt & Whitney engines and were delivered to No.705 Squadron based at Gosport. The RAF also ordered this helicopter for transport and rescue missions: the Whirlwind HAR Mk.2 (the same as the naval version except for some differences in equipment) joined the Transport and Coastal Command Units from 1955. With Wright R.1300 engines, the Whirlwind Mk.3 went into production for the Royal Navy in 1953 and operated for many years from both ship and shore bases. The subsequent RAF HAR Mk.4 version was modified for use in the tropics and fitted with a new variant of the Pratt & Whitney R-1340. It was used in Malaysia. When Westland began producing the S-55, it specified that the American engine would be used until a more suitable British powerplant was available. To meet this requirement, Alvis developed a double radial called the Leonides Major, which delivered 882hp derated to 750hp. The re-engined Whirlwind flew in 1955. It was followed in 1956 by the Mk.7 version intended to replace the old Fairey Gannet antisubmarine aircraft. Meanwhile, Westland had thought of adapting a turbine engine for the Whirlwind. The aircraft was first given a General Electric T.58 and then the more powerful D.H. Gnome turbine. The turbine-powered Whirlwind Series 3 flew in February 1959 and introduced a new nose profile which offered better visibility from the cockpit than the piston engine version. The Whirlwind could carry ten men or six stretchers, or a comparable load. The RAF adopted the Whirlwind Mk.10 version in April 1960. More than 400 Whirlwinds were built, of which nearly 100 were exported to the following countries: Austria, Brazil, Canada, Cuba, France, Ghana, Jordan, Iran, Kuwait, Spain, Saudi Arabia and Yugoslavia. G.Apostolo "The Illustrated Encyclopedia of Helicopters" Variants
|
SPECIFICATION HAR. MK 10 |
Characteristics |
Information |
Characteristics |
Information |
First Flight Primer Vuelo |
1952 | Engine Motor |
1 Bristol |
Seating Capacity Plazas |
2 / 10 |
Power Potencia |
1050 SHP |
Empty Weight Peso Vacío |
2486 Kg |
Hover Ceiling
O.G.E. Estacionario O.G.E |
NA |
Maximum
Weight Peso Máximo |
3538 Kg |
Hover Ceiling
I.G.E. Estacionario I.G.E |
14000 Ft |
Vel. Cruise Vel. crucero |
90 Kts |
Service
Ceiling Techo de Servicio |
16000 Ft |
V.N.E. V.N.E |
95 Kts |
Maximum
Range Alcance (Std) |
318 NM |
Dimensions / Dimensiones |
|||
Fuselage
Length Fuselaje Largo |
41,69 ft |
Main
Rotor Diameter Diam. Rotor Principal |
53,00 ft |
Length,
Rotors Turning Dist. Rotores Girando |
62,13 ft |
Tail
Rotor Diameter Diam. Rotor de Cola |
NA |
Total
Height Alto Total |
15,61 ft |
Price Precio |
NA |
