Diseño experimental construido para testear un nuevo sistema de propulsión. Era una mezcla de helicóptero y autogiro, siendo utilizado el rotor principal para el despegue y el aterrizaje, y dos hélices montadas a los costados (no observadas en esta fotografía, sí en la vista) para el vuelo en translación. El H-2 (D-HIBY) fue seguido por
una máquina mas sofisticada llamada H-3 Sprinter, la cual contaba con un
fuselaje totalmente cerrado, un cono de cola muy delgado con una cola en forma
de “V” y un tren de aterrizaje triciclo. La planta de poder era una turbina
Allison 250C20 las cual proveía aire comprimido a las punteras de las tres
palas del rotor principal para el despegue y aterrizaje vertical, además de
suministrar la potencia para dos hélices multipalas montadas a cada lado del
fuselaje que proveían el desplazamiento hacia delante. El H-3 fue el
prcursor del H-5, el cual tenía un diseño similar pero contaba con una cabina
mas grande con 5 plazas. |
|

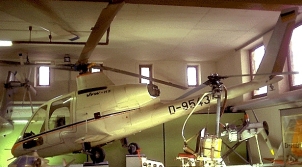

The H-2 (D-HIBY) was followed by a more sophisticated machine - the H-3 Sprinter which had a completely enclosed fuselage structure with a three-seat cabin, slim low-set tailboom with a V-tail, and a tricycle undercarriage. The powerplant was an Allison 250 turboshaft which, again, provided compressed air to the tips of the three rotor blades for vertical takeoff and also drove two large multi-blade ducted fan propellers mounted on the fuselage sides which provided forward power. The H-3 was further developed into the H-5 which was similar in layout but had a larger cabin with five seats. The first of two prototype H-3s (H3-E1, D-9543) flew in early 1970 without the external fan propulsion units. |
|
Characteristics |
Information |
Characteristics |
Information |
First
Flight Primer Vuelo |
1969 |
Engine Motor |
1
Allison |
Seating
Capacity Plazas |
1 / 2 |
Power Potencia |
400 HP |
Empty
Weight Peso Vacío |
Kg |
Hover
Ceiling O.G.E. Estacionario O.G.E |
Fts |
Maximum
Weight Peso Máximo |
Kg |
Hover
Ceiling I.G.E. Estacionario I.G.E |
Fts |
Vel.
Cruise Vel. crucero |
Kts |
Service
Ceiling Techo de Servicio |
15700 Fts |
V.N.E. V.N.E |
134 Kts |
Maximum
Range (Std) Alcance (Std) |
269 NM |
Thank you totThomas Wilberg of The Virtual Aviation Museum for the photos and information. This helicopter is on display in The Helicopter Museum Bueckeburg (near Hannover).
