PZL
SWIDNIK
PZL
- SWIDNIK |
|

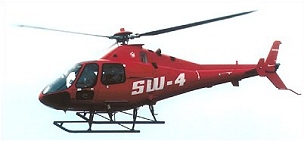

Helicóptero convencional de 4/5 plazas de líneas aerodinámicas con un fuselaje monocoque totalmente metálico. El rotor consta de tres palas y esta potenciado por un motor Rolls Royce 250-C20R de 450 shp. Un motor alternativo es el P&W PW200/9 de 615 shp. La primera producción está reservada para la fuerza aérea de Polonia, la cual ha ordenado 47 unidades. |
|

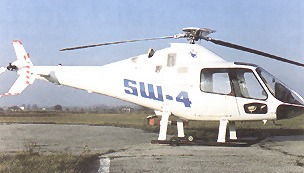

The
SW-4 weathered the collapse of the Soviet Union, the end of the Cold
War, the fall of the Berlin Wall capped by its certification under
Polish Regulations in November 2002. Reciprocal U.S approval is expected
to be a little more than a formality once a U.S sale is recorded. A
single turbine helo (with customer´s choice of a 450 shp Rolls Royce
250-C20R or 615 shp Pratt & Whittney Canada PW200/9) seatin five
(includind pilot) or an internal payload of 3527 pounds and selling of
U$S 700.000, depending on options. All this perfomance is crammed into a
compact airframe resembling a combination of the front end of an
Eurocopter Astar and the empennage of a Schweizer 330. The
first production batch of SW-4s is reserved for the Polish air force,
which has ordered a training fleet of 47 to be delivered by 2010. |
|
Characteristics |
Information |
Characteristics |
Information |
First
Flight Primer Vuelo |
1995 |
Engine Motor |
1 Rolls Royce |
Seating
Capacity Plazas |
1 / 4 |
Power Potencia |
450 SHP |
Empty
Weight Peso Vacío |
730 Kg |
Hover
Ceiling O.G.E. Estacionario O.G.E |
Ft |
Maximum
Weight Peso Máximo |
1700 Kg |
Hover
Ceiling I.G.E. Estacionario I.G.E |
Ft |
Vel.
Cruise Vel. crucero |
125 Kts |
Service
Ceiling Techo de Servicio |
Ft |
V.N.E. V.N.E |
135 Kts |
Maximum
Range (Std) Alcance (Std) |
325 NM |
Dimensions / Dimensiones |
|||
Fuselage
Length Fuselaje Largo |
27,03 ft |
Main
Rotor Diameter Diam. Rotor Principal |
29,52 ft |
Length,
Rotors Turning Dist. Rotores Girando |
34,61 ft |
Tail
Rotor Diameter Diam. Rotor de Cola |
NA |
Total
Height Alto Total |
9,61 ft |
Price Precio |
700000 U$S |
