HILLER
HELICOPTERS INC.

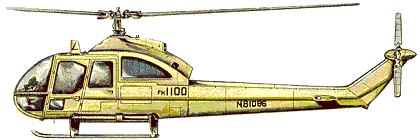

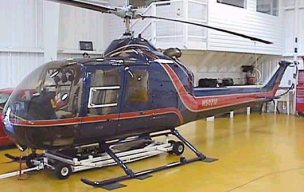

HILLER FH-1100 |
|
En
mayo de 1961, el Hiller Modelo 1100 fue uno de los tres proyectos
elegidos por el US Army para la evaluación de un helicóptero liviano
de observación. Se enviaron cinco prototipos, designados OH-5 A;
el primero voló en enero de 1963. El OH-5 A constaba de un motor
Allison T63-A5 de 250shp y un rotor articulado con un sistema de
estabilización similar el usado sobre el helicóptero comercial L4. El contrato
de producción fue obtenido por el Hughes OH-6 A, pero en 1964
Hiller, quien mientras tanto se transformó en una compañía afiliada
de Fairchild Stratos, decide adaptar la aeronave para el mercado civil,
al igual que Bell con su modelo 206. El Fairchild Hiller tuvo
menos éxito que el 206, el cual tuvo pedidos bastante
importantes del gobierno americano. Tampoco se lo podía aumentar
de tamaño como lo hizo Bell con los modelo 204 y 205. Sin
embargo el mercado civil se encontraba bastante receptivo para el modelo
de Fairchild Hiller. El fuselaje
del FH 1100 constaba de dos secciones: una estructura
semimonocoque al frente y un cono de cola en la parte trasera. El rotor
principal semirígido constaba de dos palas y un rotor de cola también
de dos palas, potenciado por una turbina Allison 250-C18. Obtuvo el certificado tipo de la FAA en Julio de 1964 y las entregas
comenzaron en junio de 1966. Se construyeron 240 ejemplares, siendo el
operador mas grande la compañía Canadian Helicopters, de Okanagan,
Canadá, con 30 ejemplares y la segunda el Departamento de Policía
Tailandés con 16 aparatos. Se vendieron también
a la Argentina, Brasil, Chile, Chipre, Ecuador, Panamá,
Filipinas y El Salvador. La producción
finalizó en 1973, pero recientemente, Hiller Aviation (la cual se
reconstituyó en una compañía privada en 1980) le compró los derechos
a la Fairchild planeando construir dos ejemplares por mes en 1983, pero
lamentablemente esto no se concretó. Este helicóptero se estaba
ofreciendo en el mercado con un nuevo motor, el Allison 250-C20B de
420shp. |
|
In May 1961, the Hiller Model 1100 was one of
three projects chosen by the US Army for evaluation as a Light
Observation Helicopter. Five prototypes were commissioned, designated OH-5A,
the first of which flew in January 1963. The OH-5A had a 250shp
Allison T63-A5 turbine and an articulated rotor, with a stabilization
system similar to that used on the L4 commercial helicopter. The LOH production contract was awarded to the Hughes
OH-6A, but in 1964 Hiller, who in the meantime had become an
affiliated company of Fairchild Stratos, decided to adapt their aircraft
for the civil market, as Bell had done with the Model 206. The
Fairchild Hiller was less successful than the Bell helicopter, which was
ordered in substantial numbers by the American government. The
authorities rejected it, as there was no possibility of increasing its
size, as had been done with the Bell 204 / 205. However
the civil market was still open to the Fairchild, as one of the
requirements of the LOH specification was that the designs submitted
should conform to civil aviation regulations. The fuselage of the FH-1100 was in two sections:
a semi-monocoque structure at the front and tail boom at the rear. It
had a two-blade, semi-rigid main rotor and two-blade, anti-torque tail
rotor, both of metal, and driven by an Allison 250-C18 turbine. It received FAA civil type approval in July 1964 and
deliveries began in June 1966. A total of 240 were built. The biggest
user was the Canadian Helicopters company, Okanagan, which ordered 30 FH-1100,
while the Royal Thai Police Department bought 16. Others were sold to
Argentina, Brazil, Chile, Cyprus, Ecuador, Panama, the Philippines and
El Salvador. Production of the Fairchild-built version ended in 1973 but recently, Hiller Aviation (which was reconstituted as a private, independent company in 1980) bought back the rights to build the aircraft from Fairchild and there were plans to build two a month in 1983, although in the event this was not achieved. The helicopter, which has been offered on the market in an executive version at a competitive price, is now fitted with an Allison 250-C20B turbine. It is slightly heavier, but performance has been improved not only by the more powerful engine, but also by the use of new blades and a new K-Flex transmission. Although not a new machine, the American manufacturers hope to win back some of the private customers from the Bell JetRanger and the Hughes 500. |
|
Characteristics |
Information |
Characteristics |
Information |
First
Flight Primer Vuelo |
1963 |
Engine Motor |
1
Allison |
Seating
Capacity Plazas |
1 / 3-4 |
Power Potencia |
317 SHP T. Off |
Empty
Weight Peso Vacío |
1415 Lb |
Hover
Ceiling O.G.E. Estacionario O.G.E |
8400 Ft |
Maximum
Weight Peso Máximo |
2750 Lb |
Hover
Ceiling I.G.E. Estacionario I.G.E |
13400 Ft |
Vel.
Cruise Vel. crucero |
106 Kts |
Service
Ceiling Techo de Servicio |
14200 Ft |
V.N.E. V.N.E |
110 Kts |
Maximum
Range (Std) Alcance (Std) |
374 NM |
Dimensions / Dimensiones |
|||
Total
Length Largo Total |
28,79 ft |
Main
Rotor Diameter Diam. Rotor Principal |
35,40 ft |
Total
Height Alto Total |
9,29 ft |
Tail
Rotor Diameter Diam. Rotor de Cola |
6,0 ft |
