EH
INDUSTRIES
AGUSTA- WESTLAND
AGUSTA
- WESTLAND |
|
A finales de 1970, la confrontación con cientos de submarinos de ataque
soviéticos, que amenazaban las líneas marítimas que conectaban Europa
con América en tiempos de la guerra fría, hizo que la British Royal Navy y la Marina Militaire Italiane
(MMI, o marina Italiana) formularan un requerimiento por una helicóptero
antisubmarino avanzado, para reemplazar al Sikorsky-Agusta- Westland Sea
King, en servicio en esa época. Se lo denominó primeramente como “WG.34”. El requerimiento básicamente
fue de un helicóptero mas compacto que el Sea King, con más capacidad
de carga y por supuesto un mantenimiento y operación mejorado. Los debates entre Westland y Agusta resultaron rapidamente en la formación,
en 1980, de una unión de empresas llamada "European
Helicopter (EH) Industries", con su centro en Londres, para
desarrollar el helicóptero que se denominaría "EH101".
Mientras el estudio progresaba, se decidió desarrollar una versión de
transporte al mismo tiempo, últimamente existen varias versiones como: ·
Series
100: Versión naval Básica
Los
pedidos se ubicaron en 1991, con la certificación civil para Gran Bretaña,
Italia y USA en 1994. El

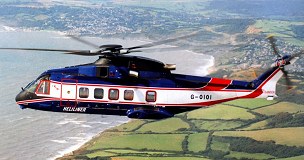

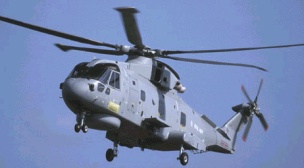

EH101 es un helicóptero atractivo, de configuración convencional, con
un rotor principal de 5 palas, un rotor de cola de 4 palas y un tren de
aterrizaje retráctil. Esta potenciado por tres turbinas, dependiendo de
las varientes la marca del motor. El rotor es de material compuesto, con
el fuselaje de una aleación de aluminio-litio. El
desarrollo del EH101 fue largo, en parte debido a los cambios de
requerimientos debido al fin de la guerra fría, en parte a dificultades
técnicas y también a la quiebra de la Westland en 1986, sin contar con
los tres accidentes que sufrieron distintos prototipos. En julio de 2000, EH Industries fue reemplazada por un consorcio total formado por Agusta y Westland, pasándose a llamar "Agusta-Westland", por lo tanto el EH101 se lo denomina "Agusta-Westland EH101". Versiones |
|
In the late 1970s, confronted
with hundreds of Soviet attack submarines that threatened the sea lanes
connecting Europe to America in time of war, the British Royal Navy (RN)
and the Marina Militaire Italiane (MMI, or Italian Navy) formulated a
requirement for an advanced antisubmarine warfare (ASW) helicopter, to
replace the Sikorsky-Agusta-Westland Sea King then in service for this
role. Westland of Britain's initial
studies for a "Sea King Replacement (SKR)" were given the
designation "WG.34". Basic requirements were for a helicopter
that was more compact than the Sea King, but had a greater lift
capability, and of course general improvements in operational
performance and maintainability. Discussions between Westland
and Agusta of Italy on the SKR quickly resulted in the formation in June
1980 of a joint company named "European Helicopter (EH)
Industries", with its headquarters in London, to develop the new
helicopter, which was designated "EH101". Work was apportioned
between the two parent companies to give them roughly equal shares
without duplication. As design studies progressed,
it was decided that transport versions should be developed as well.

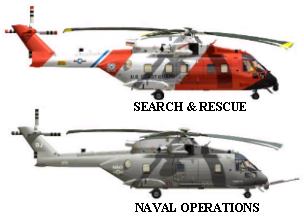

Ultimately, a number of different EH101 variants were proposed: ·
Series 100: Basic naval version. A full-scale mockup of the EH101 was displayed at the Paris Air Show in 1985. A single ground test airframe called the "Iron Bird" and a total of nine flying preproduction prototypes ("PP"s) were built:
Initial production orders for the EH101 took place in 1991, with civil certification for the UK, Italy, and US following in 1994. The EH-101 has an emergency floatation system
using helium-inflated polyethylene-kevlar floats, as well as anti-icing
features such as sideways-facing turbine inlets, provided because icing
was a severe problem with the Sea King. The EH101 has a single-point
pressure refueling system that allows the aircraft to be "topped
off" in a few minutes. Development of the EH101 was protracted, partly
because of changes in defense requirements due to the end of the Cold
War; partly because of technical difficulties, particularly for the
complex avionics systems for the ASW variants; partly because of the
bankruptcy of Westland in 1986, with the company rescued by the US
United Technologies Corporation, parent of Sikorsky, and Fiat of Italy;
and partly because of the loss of three prototypes in accidents. Versions |
|
Characteristics |
Information |
Characteristics |
Information |
First
Flight Primer Vuelo |
1987 |
Engine Motor |
3 GE T700-T6A1 |
Seating
Capacity Plazas |
2 / 30 |
Power Potencia |
2270 SHP each
(RR) |
Empty
Weight Peso Vacío |
20188 Lb |
Hover
Ceiling O.G.E. Estacionario O.G.E |
3500 Ft |
Maximum
Weight Peso Máximo |
32188 Lb |
Hover
Ceiling I.G.E. Estacionario I.G.E |
7200 Ft |
Vel.
Cruise Vel. crucero |
150 Kts |
Service
Ceiling Techo de Servicio |
15000 Ft |
V.N.E. V.N.E |
167 Kts |
Maximum
Range (Std) Alcance (Std) |
750 NM |
Dimensions / Dimensiones |
|||
Fuselage
Length Rotors Fuselaje Largo Rotores |
74,80 ft |
Main
Rotor Diameter Diam. Rotor Principal |
61,02 ft |
Total
Height Alto Total |
17,58 ft |
Tail
Rotor Diameter Diam. Rotor de Cola |
13,12 ft |
