LOCKHEED
AH-56A |
|

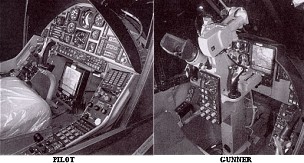

Durante la guerra de Vietnam el US Army requería una amplia variedad de helicópteros y así es como emite una especificación para un helicóptero capaz de actuar como artillero, escolta, y protección a los helicópteros de asalto. Se presentan 12 firmas y por primera vez Lockheed con un diseño en helicópteros, fue la elegida para desarrollar y construir un lote de 10 aparatos basados en su propuesta, bajo la designación de Lockheed AH-56 A Cheyenne. Se trataba de un helicóptero compuesto, con un fuselaje estrecho, alas fijas de corta envergadura, tren de aterrizaje retráctil y lugar para dos plazas en tándem bajo una cabina vidriada y blindada. Estaba propulsado por un motor turboeje General Electric T64-GE-16 que desarrollaba una potencia de 3925 SHP y accionaba un rotor principal de cuatro palas, un rotor de cola antipar y una hélice impulsora en el extremo final del fuselaje. Los vuelos de prueba comenzaron en septiembre de 1967 y a principios de 1968 el US ARMY firmó un contrato por un lote inicial de 375 ejemplares. Desafortunadamente, aparecieron serios problemas de desarrollo y un constante crecimiento de los costos, que condujeron a la cancelación definitiva del programa, el 19 de mayo de 1969. |
|

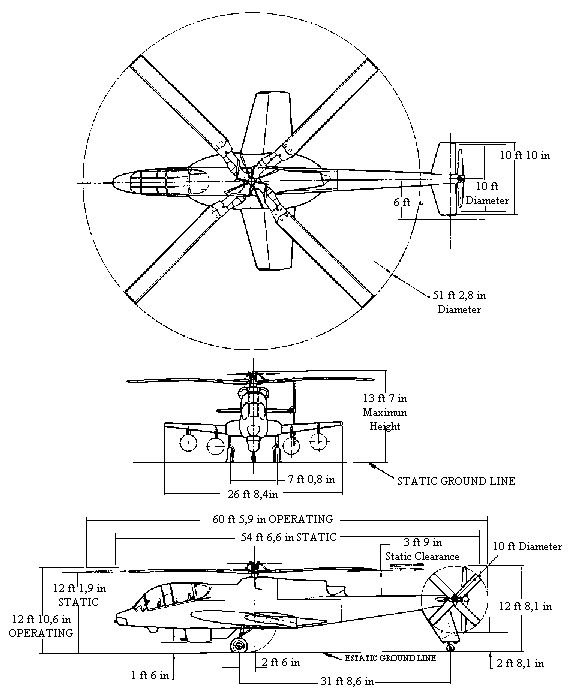

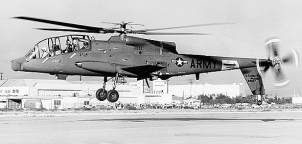

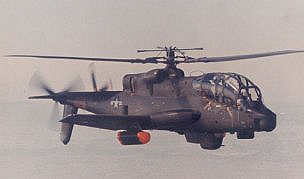

Lockheed research into compound rigid rotor helicopters began in the early 1960s using the XH-51. In 1966, Lockheed's design for an operational attack helicopter, the AH-56 Cheyenne, won the contract to build the US Army's Advanced Aerial Fire Support System (AAFSS). The Cheyenne had a 3,435 shp General Electric T64-GE-16 turboshaft engine that powered a rigid 50 ft four-bladed rotor, as well as a 10 ft three-bladed pusher propeller and a four-bladed anti-torque rotor on the tail. In horizontal flight, almost the entire engine output is used to drive the propeller. The AH-56 weighed 12,000 lb empty, had a 55 ft long fuselage and a 27 ft wingspan. Maximum vertical take-off weight was 22,000 lb, but a short take-off could be made at 28,000 lb. First flight was on 21 September 1967. The maximum design speed of over 250 mph could not be reached, however, due to a dangerous rotor instability above 200 mph. The third of ten prototypes crashed on 12 March 1969 when the rotor impacted the front and rear fuselage, killing the pilot. The AH-56 was highly agile and a very capable weapon system, but development was halted in 1972, due to defense cutbacks. A production order of 375 AH-56s had been approved in 1968, but canceled the next year, also as a result of budget cuts. Thanks to http://www.internetage.com/cartercopters/pics9.htm |
|
Characteristics |
Information |
Characteristics |
Information |
First
Flight Primer Vuelo |
1967 |
Engine Motor |
1 G.E. |
Seating
Capacity Plazas |
1 / 1 |
Power Potencia |
3925 HP |
Empty
Weight Peso Vacío |
5320 Kg |
Hover
Ceiling O.G.E. Estacionario O.G.E |
Mt |
Maximum
Weight Peso Máximo |
7709 Kg |
Hover
Ceiling I.G.E. Estacionario I.G.E |
Mt |
Vel.
Cruise Vel. crucero |
200 Kts |
Service
Ceiling Techo de Servicio |
7925 Mt |
V.N.E. V.N.E |
220 Kts |
Maximum
Range (Std) Alcance (Std) |
NM |
