BELL
HELICOPTERS TEXTRON
BELL
61 |
PROTOTYPE
PRODUCTION
|
A fines de los años ´40, los inventarios de la Marina de los Estados Unidos no contaban con helicópteros especialmente diseñados para la guerra antisubmarina (ASW). Así, en 1950, la Navy lanzó una competencia por un nuevo helicóptero diseñado específicamente para el rol de ASW. En junio del mismo año, Bell ganó esta compulsa y se le otorgó un contrato por la construcción de tres prototipos de su Modelo 61, que sería designado SL-1 (Nº 129133/129135). Esta máquina de cuatro plazas fue la primera y hasta el momento la única que Bell construiría con el diseño de rotores en tándem. Sin embargo, cada uno de los rotores era un rotor básico tipo Bell bipala, con una barra de estabilización. Los rotores estaban interconectados y podían ser plegados para el transporte en portaaviones. A pesar de que el US Navy hubiese preferido un helicóptero bimotor, el Modelo 61 estaba potenciado por un solo motor, un Pratt & Whitney R-2800-50 de 2400 hp, instalado en el centro del fuselaje, con un tanque de combustible de 1608 litros (425 galones), que le proveían una autonomía de casi 4 horas de vuelo. El armamento propuesto incluía misiles aire-superficie tales como el Fairchild AUM-2 Petrel. El
HSL-1 estaba equipado con un autopiloto Bell, el cual le permitía
permanecer en vuelo estacionario por largo tiempo. Con su tripulación
de cuatro personas, piloto, copiloto y dos operadores de sonar, y un
peso máximo de 11700 Kg., el Modelo 61 era el helicóptero mas
grande en entrar en producción en los Estados Unidos, para esa fecha. Para
el desarrollo y producción, la división de helicópteros de Bell fue
mudada de Búfalo a Fort
Worth. El XHSL-1 voló el 4 de marzo de 1953, pero el desarrollo
del HSL-1, estuvo plagado de dificultades. El helicóptero tenía
muchos problemas con la vibración. Luego de mejorarse esto, se
realizaron pruebas sobre el buque USS Kula Gulf (CVE-108), en marzo de
1955. Aunque el HSL-1 contaba con buenas perfomances en el aire,
su gran tamaño, por mas que se pudiesen plegar sus palas, no era
compatible con el elevador del barco. Para peor, era muy ruidoso y
limitaba la capacidad del sonar. Debido a todos estos defectos, el
primer contrato de producción fue de 78 ejemplares, incluidos 18 máquinas
para los británicos, que se redujeron a 50 en julio de 1955. Un
contrato posterior por 16 máquinas más fue luego cancelado. La Navy
ordenó en su lugar el Sikorsky HSS-1 "Sea Bat". Las
entregas a los escuadrones comenzaron en enero de 1957. Los modelos de
producción diferían de los prototipos en tener un estabilizador
vertical a cada lado del fuselaje, en su parte posterior. Sin embargo,
el programa del HSL-1 no fue un chasco completo debido a que el
helicóptero demostró interesantes capacidades para el trabajo de
barrido de minas. Seis HSL-1 fueron modificados para esto y
operaron en el Navy Mine Defense Laboratory in Panama City (Florida),
hasta fines de 1960. Una
versión civil, el D-116, y dos derivados del HSL-1, el D-216
y el D-238, permanecieron en proyecto. Lamentablemente ningún HSL-1
supervivió. |
|
At
the end of the 1940s, it became apparent that the helicopters in the
Navy's inventory were not of the size to accomplish anti-submarine warfare
(ASW) missions. Thus in 1950, the US Navy launched an industrywide
competition for a new helicopter to be designed specifically for the ASW
role. In the following June, Bell won this competition and was awarded a
contract calling for the building of three prototypes of its Model 61,
to be designated XHSL-1 (BuNos 129133/129135). This four-seat
machine was the first and would be the only Bell helicopter using the
tandem-rotor layout. Nevertheless each of the two rotors were of the basic
Bell two blades and automatic stabilising bar. The fore and aft rotors
were interconnected and could be folded for carrier operations. Despite
the fact that the US Navy would have preferred a twin-engined machine, the
Model 61 was powered by a single 2.400hp Pratt & Whitney
R-2800-50 engine installed in the centre fuselage and total fuel capacity
was 425 US gal providing a flight endurance of nearly four hours. Armament
was intended to include air-to-surface missiles such as the Fairchild
AUM-2 Petrel, as well as a dipping ASDIC. The
HSL-1 was equipped with a Bell-developed autopilot which permitted
motionless hovering for long periods. With a crew of four, comprising a
pilot, a co-pilot and two sonar operators, and a maximum gross weight of
over 11700kg, the Model 61 was then the biggest helicopter to be
ordered into production in the United States. For
the development and production, the Bell Helicopter Division was moved
from Buffalo to Fort Worth. The first XHSL-1 flew on 4 March, 1953,
but development of the HSL-1, was to be long and difficult. The
helicopter suffered many teething troubles, the worst being vibration.
After these had been cured, carrier tests were made aboard the escort
carrier USS Kula Gulf (CVE-108) in March 1955. Even if the HSL
performed well in the air, its large size, even with rotor blades folded,
was not compatible with the carrier's elevator. Even worse, was its very
high level of noise while in stationary flight and this limited the sonar
operator's capability of identifying contacts. Due to these shortcomings
the first production contract calling for seventy-eight HSL-1s, including
eighteen machines under MAP destined for Britain's Fleet Air Arm, was cut
back to fifty (BuNo 129154/129168, 129843/129877) in July 1955. A
follow-on contract for sixteen more (BuNo 140414/140429) was cancelled.
The Navy ordered the Sikorsky HSS-1 "Sea Bat" instead. Deliveries

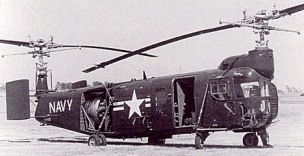

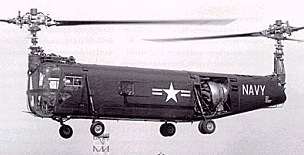

to Squadron HU-1 began in January 1957. Production models differed from
the prototypes in having stabilising fins at the rear of the fuselage.
Nevertheless the HSL-1 programme was not a complete failure because
the Bell helicopter demonstrated interesting capabilities in the
mine-sweeping role. Six HSL-1s were modified to do this and were operated
by the Navy Mine Defense Laboratory in Panama City (Florida), until the
end of 1960. The remaining aircraft were used for training or as spares. A
civil variant, the D-116, and two derivatives of the HSL-1
were considered under design numbers D-216 and D-238 but
they remained as projects. A.J.Pelletier "Bell Aircraft since 1935", 1992 |
|
Characteristics |
Information |
Characteristics |
Information |
First
Flight Primer Vuelo |
1953 | Engine Motor |
1
P&W R-2800-50 |
Seating
Capacity Plazas |
2 / 2 |
Power Potencia |
2400 HP |
Empty
Weight Peso Vacío |
NA |
Hover
Ceiling O.G.E. Estacionario O.G.E |
NA |
Maximum
Weight Peso Máximo |
25800 Lb |
Hover
Ceiling I.G.E. Estacionario I.G.E |
NA |
Vel.
Cruise Vel. crucero |
80 Kts |
Service
Ceiling Techo de Servicio |
NA |
V.N.E. V.N.E |
100 Kts |
Maximum
Range (Std) Alcance (Std) |
303 NM |
Dimensions / Dimensiones |
|||
Fuselage
Length Fuselaje Largo |
39,04 ft |
Main
Rotor Diameter Diam. Rotor Principal |
51,50 ft |
Length,
Rotors Turning Dist. Rotores Girando |
NA |
Tail
Rotor Diameter Diam. Rotor de Cola |
NA |
Total
Height Alto Total |
14,43 ft |
Price Precio |
NA |
