BELL
HELICOPTERS TEXTRON
BELL
206 L |
|
En septiembre de 1973 se
anuncia por primera vez al nuevo integrante de la familia del 206,
el Bell LongRanger. Este helicóptero cumplía con los
requerimientos de una máquina de cometidos generales, potenciada por
una turbina y comprendida en el rango entre el helicóptero de 5 plazas JetRanger
II y el de 15 plazas, el Bell 205 A-1. El modelo original 206L
LongRanger, voló por primera vez el 11 de septiembre de 1974 y las
entregas comenzaron en octubre de 1975. Incorporaba el nuevo invento de
Bell, el sistema de suspensión de cabina denominado NodaMatic. El cual
reducía las vibraciones generadas por el rotor y aislaba el ruido a la
cabina. El LongRanger tiene una
capacidad de piloto y hasta seis pasajeros. Puede configurarse como
ambulancia con capacidad de hasta 2 camillas. Permite también una
configuración de transporte VIP, de hasta 4 personas. El modelo subsiguiente, el 206L-1 Long Ranger II fue certificado en mayo de 1978, introduciendo una nueva turbina, la Allison 250-C28B de 500 shp. Las mejoras incluían una cabina rediseñada dandole 0,05 metros mas de altura para el pasajero trasero, nuevas coberturas de motor, montantes de motor y otros detalles menores. |
|
First announced in September 1973, the Long Ranger
was developed to meet a requirement for a turbine-powered general-purpose
helicopter in a size and performance range between the five-seat JetRanger
II and 15-seat Model 205A-1. The original Model 206L Long
Ranger flew for the first time on 11 September 1974 and production
aircraft were delivered from October 1975. It incorporated Bell's
Noda-Matic cabin suspension system, which reduces rotor-induced vibration
and isolates structure-borne noise from the cabin environment.
Accommodation provided for a pilot, co-pilot and five passengers.
Alternative layouts allow for two stretchers and two ambulatory
patients/attendants, or internal or external freight, or a four-seat
executive seating arrangement. The Model 206L-1 Long Ranger II was certificated
in May 1978, introducing a new 500shp Allison 250-C28B engine. Detail
improvements include a redesigned aft cabin to provide 0.05m more headroom
for rear seat passengers, new cowlings, firewall, engine mountings and
engine deck area structure and other refinements. M.Taylor "Jane's Encyclopedia of Aviation" |
|
Characteristics |
Information |
Characteristics |
Information |
First
Flight Primer Vuelo |
1974 | Engine Motor |
1
Allison |
Seating
Capacity Plazas |
1 / 6 |
Power Potencia |
420 SHP T.Off |
Empty
Weight Peso Vacío |
2105 Lb |
Hover
Ceiling O.G.E. Estacionario O.G.E |
1000 Ft |
Maximum
Weight Peso Máximo |
4000 Lb |
Hover
Ceiling I.G.E. Estacionario I.G.E |
6100 Ft |
Vel.
Cruise Vel. crucero |
113 Kts |
Service
Ceiling Techo de Servicio |
12900 Ft |
V.N.E. V.N.E |
130 Kts |
Maximum
Range (Std) Alcance (Std) |
304 NM |

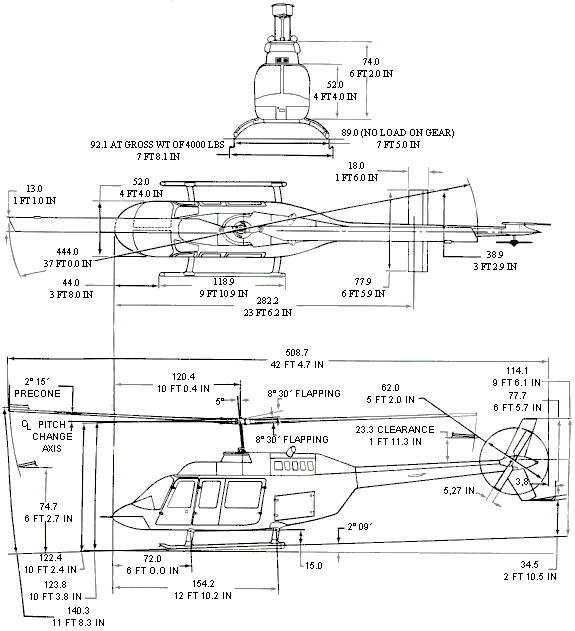

Dimensions / Dimensiones |
|||
Fuselage
Length Fuselaje Largo |
34,24 ft |
Main
Rotor Diameter Diam. Rotor Principal |
37,00 ft |
Length,
Rotors Turning Dist. Rotores Girando |
42,52 ft |
Tail
Rotor Diameter Diam. Rotor de Cola |
5,17 ft |
Total
Height Alto Total |
10,32 ft |
Price Precio |
300 / 430 U$S |
