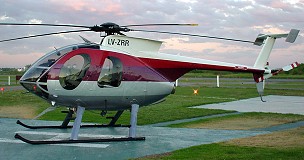

MD 530 F |
|
Diseñado para el trabajo en altas altitudes y altas temperaturas el MD 530 F es la ultima versión del modelo original del Hughes 500, con motor mas potente (Rolls-Royce 250 C30 de 650 SHP). Posee un rotor principal con palas 15 cm. mas largas que el MD 500E , un cono de cola extendido en 21 cm. aproximadamente y un rotor de cola mas largo para proveerlo de mayor control. |
|
The MD 530F is engineered to
meet your requirements for hot-day, high-altitude operation. Equipped
with the 650 shp Allison 250-C30 engine, the MD 530F operates
more effectively in hot, high environments than other helicopters in its
class. In a typical working configuration, at a design gross weight of 3,100 lb (1406 kg) and a useful load of over 1,509 lb (684 kg), it can hover out-of-ground effect at 11,600 ft (3536 m) ISA + 20°C. Its cruise speed follows the tradition of the MD 500E...making it one of the fastest helicopters in its class. An optional cargo hook rated for 2,000 lb (907 kg) provides outstanding external load capability. Internal loading is made easy by the flat aft cargo compartment floor of the helicopter. The
MD 530F’s high altitude lift capability is achieved by main-rotor
blades six inches longer than the MD 500E. The tailboom is extended
eight inches and the tail rotor blades have been lengthened to provide
increased thrust and directional control at high altitudes. |
|
Characteristics |
Information |
Characteristics |
Information |
First
Flight Primer Vuelo |
1982 |
Engine Motor |
1 Allison |
Seating
Capacity Plazas |
1 / 4 |
Power Potencia |
425 shp T.off |
Empty
Weight Peso Vacío |
1591 Lb |
Hover
Ceiling O.G.E. Estacionario O.G.E |
14000 Ft |
Maximum
Weight Peso Máximo |
3100 Lb |
Hover
Ceiling I.G.E. Estacionario I.G.E |
16000 Ft |
Vel.
Cruise Vel. crucero |
125 Kts |
Service
Ceiling Techo de Servicio |
18700 Ft |
V.N.E. V.N.E |
152 Kts |
Maximum
Range (Std) Alcance (Std) |
245 NM |

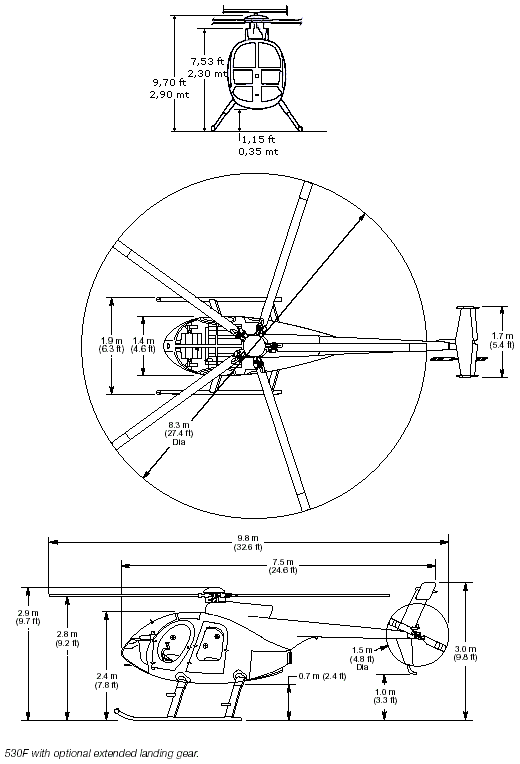

Dimensions / Dimensiones |
|||
Fuselage
Length Fuselaje Largo |
23,88 ft 9,78 mt |
Main
Rotor Diameter Diam. Rotor Principal |
27,35 ft 8,33 mt |
Length,
Rotors Turning Dist. Rotores Girando |
24,60 ft 7,50 mt |
Tail
Rotor Diameter Diam. Rotor de Cola |
4,75 ft 1,45 mt |
Total
Height Alto Total |
8,10 ft 2,50 mt |
Price Precio |
U$S 475 / 840000 |
