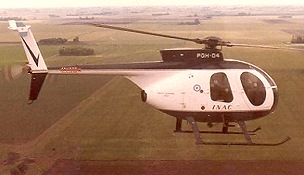

HUGHES 500 D |
|
La serie posterior al Hughes 500 C, fue la denominada 500 D (500 MD para los militares) y se distingue de los modelos anteriores por contra con un estabilizador de cola en forma de “T” y rotor principal con 5 palas en lugar de las 4 anteriores. El motor también es diferente, equipándolo ahora un Allison 250 C20B de 420 SHP y 350SHP máximo continuo. El aumento de la potencia con la adopción de la nueva cola le da al conjunto una mejora general bastante notoria. Desde su primer vuelo en 1974, Hughes (ahora MD) ha entregado unos 1000 aparatos; ha sido suministrado a diversos países y Fuerzas Armadas y es construido bajo licencia por Breda Nardi como NH-500D y por Kawasaki y Korean Air Lines |
|
A later version, the 500D (500MD
military) is distinguished externally from earlier models by a T-tail and
five-blade rotor. The powerplant is also different — an Allison 250-C20B
delivering an absolute maximum of 420 shp and 350shp maximum continuous
power. The increase in power and adoption of the new tail unit have led to
a general improvement in structural robustness, particularly of the
landing gear, the lower part of the cabin and tail boom, plus, of course,
the transmission. |
|
Characteristics |
Information |
Characteristics |
Information |
First
Flight Primer Vuelo |
1974 |
Engine Motor |
1
Allison |
Seating
Capacity Plazas |
1 / 4 |
Power Potencia |
420 shp |
Empty
Weight Peso Vacío |
1414 Lb |
Hover
Ceiling O.G.E. Estacionario O.G.E |
6000 Ft |
Maximum
Weight Peso Máximo |
3000 Lb |
Hover
Ceiling I.G.E. Estacionario I.G.E |
8500 Ft |
Vel.
Cruise Vel. crucero |
130 Kts |
Service
Ceiling Techo de Servicio |
16000 Ft |
V.N.E. V.N.E |
152 Kts |
Maximum
Range (Std) Alcance (Std) |
261 NM |
Dimensions / Dimensiones |
|||
Fuselage
Length Fuselaje Largo |
23,20 ft 7,07 mt |
Main
Rotor Diameter Diam. Rotor Principal |
26,41 ft |
Length,
Rotors Turning Dist. Rotores Girando |
30,80 ft 9,39 mt |
Tail
Rotor Diameter Diam. Rotor de Cola |
4,60 ft |
Total
Height Alto Total |
8,90 ft 2,71 mt |
Price Precio |
U$S 350/400 |
