HILLER
HELICOPTERS INC.

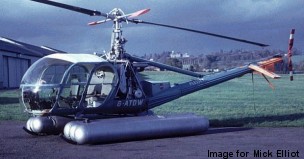

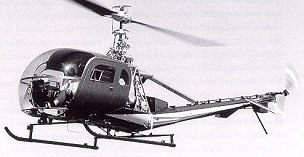

HILLER UH-12E4 |
UH-12SL4
|
En 1960, Hiller desarrolla el modelo E4, con una cabina mas larga con capacidad para cuatro plazas, 1 piloto sentado al frente y tres pasajeros detrás sentados en línea. Se le adosa también un estabilizador en forma de “V” invertida, en el cono de cola. El US Army adquiere 22 máquinas y las denomina OH-23F, utilizándolas para tareas geodésicas. La última versión
que aparece en el año 1963 es el Hiller 12L-4 sobre la cual se
prueba la turbina PT6, pero el proyecto no prospera. VERSIONES UH-12E4T: UH-12E4 con turbina Allison 250 C20B de
420shp. |
|
In 1960 the Model E4 was developed from the Hiller
12E, with a longer cabin to seat four and an anhedral stabilizer on
the tail boom. Twenty-two of these were acquired by the US Army as the OH-23F,
for geodetic research. VERSIONS UH-12E4T: UH-12E4 fitted
with Soloy conversion to 420shp Allison 250-C20B turboshaft. |
|
Characteristics |
Information |
Characteristics |
Information |
First
Flight Primer Vuelo |
1960 |
Engine Motor |
1
Lycoming |
Seating
Capacity Plazas |
1 / 3 |
Power Potencia |
345 HP |
Empty
Weight Peso Vacío |
1836 Lb |
Hover
Ceiling O.G.E. Estacionario O.G.E |
6800 Ft |
Maximum
Weight Peso Máximo |
3100 Lb |
Hover
Ceiling I.G.E. Estacionario I.G.E |
10400 Ft |
Vel.
Cruise Vel. crucero |
78 Kts |
Service
Ceiling Techo de Servicio |
15000 Ft |
V.N.E. V.N.E |
83 Kts |
Maximum
Range (Std) Alcance (Std) |
200 NM |
Dimensions / Dimensiones |
|||
Total
Length Largo Total |
29,79 Ft |
Main
Rotor Diameter Diam. Rotor Principal |
35,43 Ft |
Total
Height Alto Total |
10,1 Ft |
Tail
Rotor Diameter Diam. Rotor de Cola |
5,50 Ft |
