AGUSTA
AEROSPACE CORPORATION

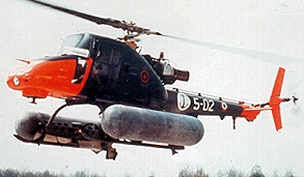

AGUSTA A-106 |
|
El primer prototipo voló por
primera vez a comienzos de 1966 (otros autores lo dan en noviembre de
1965). El A-106 es un helicóptero pequeño, en principio
desarrollado para la guerra antisubmarina. Sus predecesores fueron helicópteros
a pistón tales como el A-103 y el A-104, y el A-105
el cual voló por primera vez en 1964 con una turbina Astazau. El A-106 tenía un solo
asiento y entró en producción en 1968 para la marina italiana, con
quien sirvió a bordo de pequeños barcos como helicóptero
antisubmarino. Podía operar en malas condiciones climáticas y
transportar un blanco de identificación y también transportar cargas
colgantes como torpedos Mk.44. Disponía de un rotor principal de dos
palas y de un rotor de cola convencional; podía adaptarse un tren de
flotación auxiliar a la estructura del patín, que disponía de ruedas
desmontables para su maniobra en tierra. Para las operaciones con poca visibilidad disponía de un amplio instrumental; la compañía Ferranti desarrolló un sistema electrónico de tres ejes para aumentar la estabilidad del A-106, lo que lo convertía en una plataforma de fuego estable. |
|
Flown
in prototype form early in 1966, the Agusta A.106 is a small
lightweight armed helicopter designed initially to fulfil an
antisubmarine role. Its predecessors were the experimental
piston-engined A.103 and A.104, and the A.105 which
was flown in April 1964 with an Agusta-built Astazou shaft turbine. The
A.106, a single-seater, went into production in 1968 for the
Italian Navy, with whom it will serve aboard small naval vessels as an
anti-submarine helicopter operable in poor weather conditions and
carrying target identification equipment and a pair of underslung Mk.44
homing torpedoes. Provision exists for substituting flotation bags for
the standard skid landing gear, and an auxiliary fuel tank may be
carried externally. The 2-blade main rotor, and the tail section
including the 2-blade tail rotor, can be folded for stowage on board
ship. Alternative applications of the A.106 are Army support; light crane duties with loads suspended from an under-fuselage hook; or casualty evacuation vehicle with 2 externally-mounted stretcher cases. |
|
Characteristics |
Information |
Characteristics |
Information |
First
Flight Primer Vuelo |
1965 | Engine Motor |
1 Turbomeca |
Seating
Capacity Plazas |
1 |
Power Potencia |
300 / 260 Cont. |
Empty
Weight Peso Vacío |
590 Kg |
Hover
Ceiling O.G.E. Estacionario O.G.E |
1150 Mt |
Maximum
Weight Peso Máximo |
1400 Kg |
Hover
Ceiling I.G.E. Estacionario I.G.E |
3000 Mt |
Vel.
Cruise Vel. crucero |
90 Kts |
Service
Ceiling Techo de Servicio |
3200 Mt |
V.N.E. V.N.E |
95 Kts |
Maximum
Range (Std) Alcance (Std) |
395 NM |
