WELCOME TO BIOVISION HELPLINE

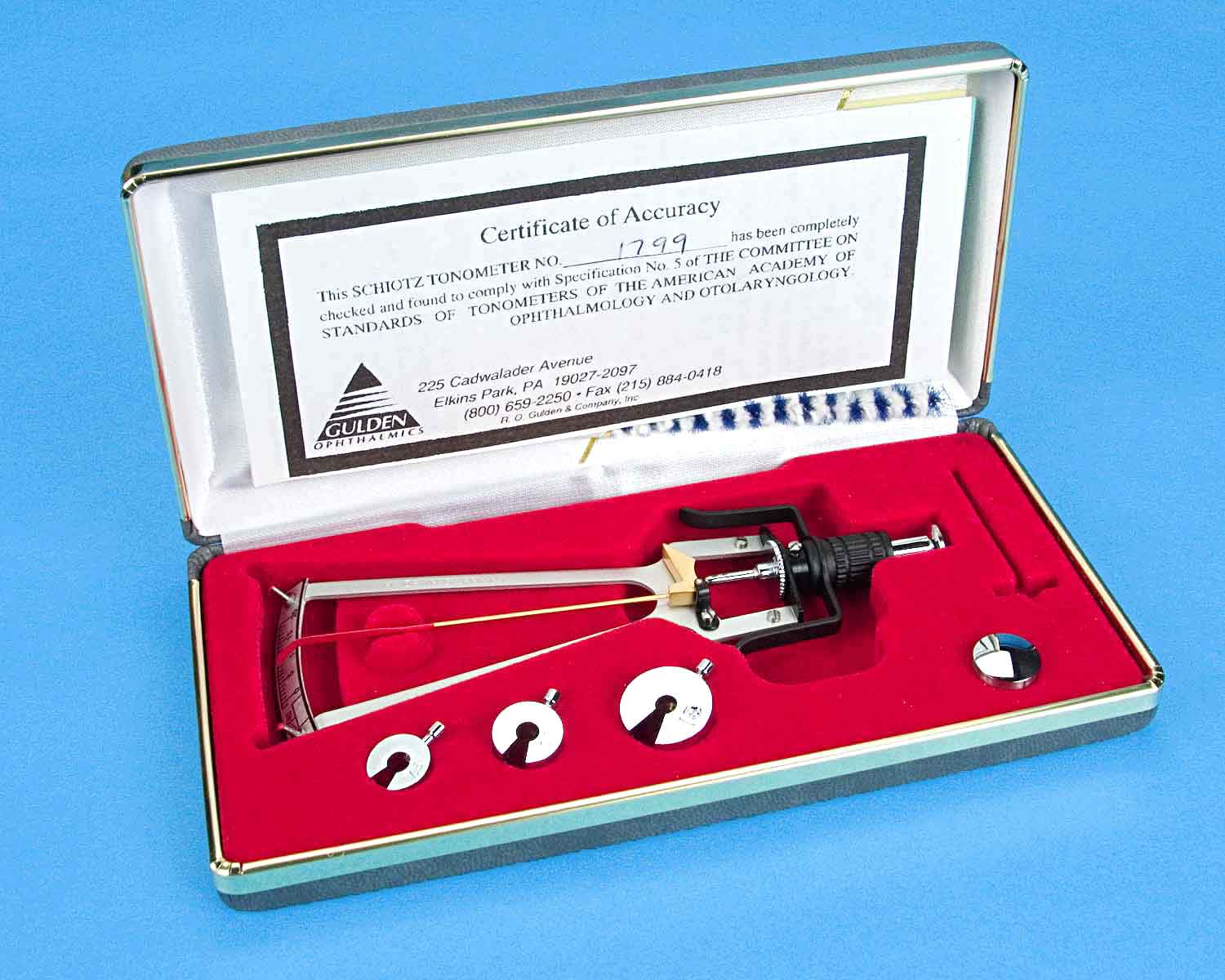

Schiotz - Tonometer



bulletTreditional instrument to measure IOP (Intra Ocular Pressure)
bulletTonometers are used to measure and monitor intraocular pressure in the eye. The Schiotz tonometer has a free­floating barrel with a footplate. Because the footplate radius is greater than that of the cornea when resting on it, the instrument slightly flattens the cornea. At the center of the footplate there is a hole through which a plunger protrudes. The plunger assembly can be loaded with additional weights so that its total weight varies from 5.5 grams in its unloaded state to 7.5 or 15 grams. The movement of the plunger as it indents the cornea amplifies a mechanical pointer that reads over a scale at the top the instrument. The scale reading is converted into an approximate value of millimeters of mercury by use of a graph or conversion chart. Includes 4 weights. Plunger retractor optional Features: € Portable for emergency readings € Inclined scale for easy readings € Durable design € Protective anodic oxidation coating, for autoclaving. € Padded metal cases
Gulden USA Make

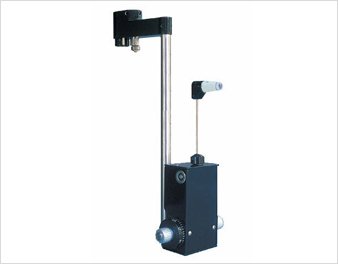

Goldman type - Tonometer Slitlamp Mount



bulletSlitlamp mount Applanation Tonometer
bulletHigh Quality Precision Instrument
bulletAccurate readings
Optilasa, Spain Make

Goldman type - Tonometer  Handheld



bulletGoldman Standard, Portable, Versatile, Accurate
bulletHigh Quality Precision Instrument
bulletAccurate readings
bulletTrusted for more than 20 years.
bulletDownload Catalogue Here.
Haag Streit, UK Make

Rebound Technology Digital - Tonometer  Handheld



bulletNew rebound technology, Portable, Versatile, Accurate
bulletNo Anesthesia required.
bulletHigh Quality Precision Instrument.
bulletAccurate readings
bulletUS FDA Approved product
bullet Download Catalogue Here.
ICare- Finland Make
