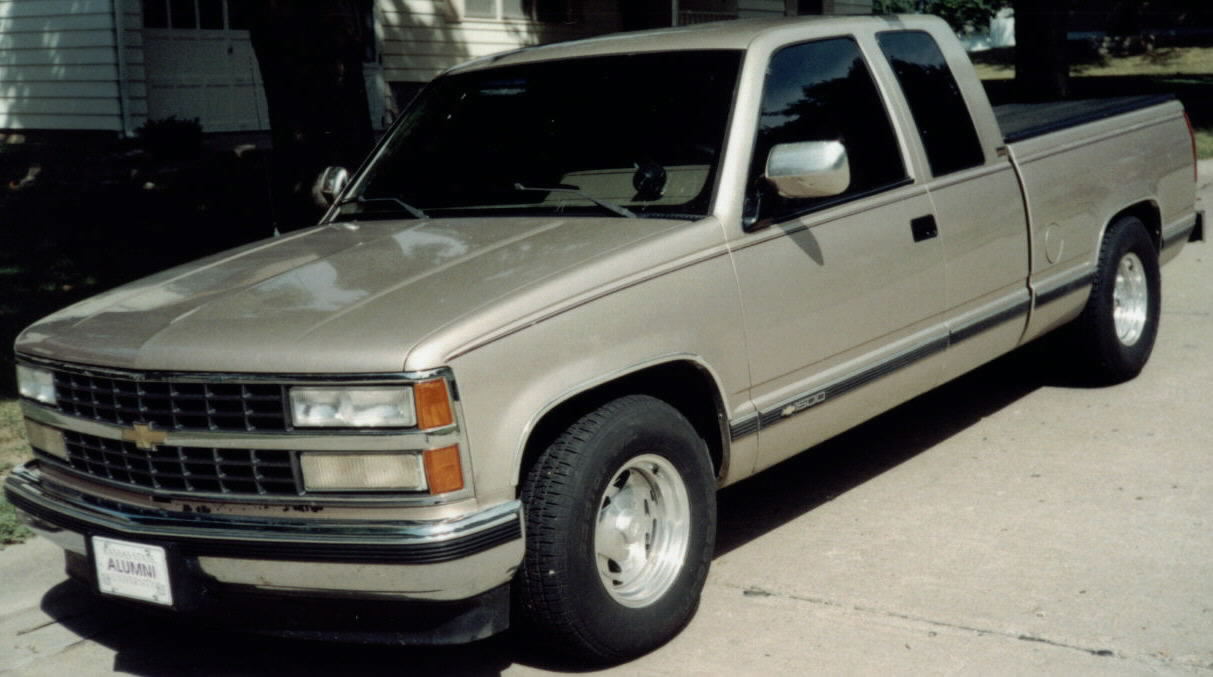

1993 Chevy Extended Cab Truck
Fuel injected 350 - 345HP and gobs of torque!
Short Block
Machine work by Marc Brown at Advanced Engine and Machine - Salina, KS. Four bolt main block 4.030 Bore. Melling High Volume Oil Pump, 5.7 inch GM rods, Federal Mogul Hypereutectic Pistons - 9.6:1 compression.
Air Management
Aluminum Edelbrock Performer 6085 heads 60cc chambers, 2.02I, 1.60E.
Crane Compucam 216/228 deg at .050 - .454/.480 lift - 112deg LSA.
Summit chromemoly 0.100 extended pushrods, Crane gold centerbolt roller rocker arms.
Holley Street Dominator intake manifold and 700cfm 4bbl Throttle Body with four 65 lb/hr. injectors. 14X5 K&N air filter
Accel 300+ coil and ignition module with rev limiter, Taylor Plug wires.
ASP Performance 25% underdrive crank pulley.
JBA Chrome Shorty Headers with Gibson 3 inch exhaust system
Electronics
1994 Factory GM 7427 ECM Controller with TunerCat.com Custom PROM I programmed myself.
Drivetrain
4L60E 4 speed automatic overdrive rebuilt by Larry's Transmission using TCI 9 disc 3-4 clutch pack, corvette 2/4 servo, and 2400RPM stall Converter. B&M drain kit, Hayden Transmission Cooler. Auburn Limited Slip differential with 4.10 Richmond Gears.
Suspension
Installed by Dave's Truck and Auto - Salina, KS
2 inch AIM front drop spindles, 4 inch AIM rear hanger and shackle kit
Hellwig rear Anti-Sway bar, Bell-Tech Nitro-Drop Shocks, Energy Suspension Bump Stops
American Racing Mantis Aluminum Wheels - 15X8, 4 inch backspacing
BF Goodrich T/A Radials 255-70-15 Front, 285-70-15 Rear
Audio System
Jensen MP5010K CD/mp3 reciever with CD changer controls and built in subwoofer crossover. Jensen CH601 6-Disc Changer
Alpine 3554 50Wx4 Amp powering four Boston Acoustics poly 4X6's with dome tweeters. Alphasonik 2150 150Wx2 Amp bridged into two Pyle 10 inch subs in ported custom cabinet.
Two Mallory 250,000uF 20V Stiffening Capacitors, AWG 6 Power cables.
Accessories
Remote Start and Keyless Entry, LeBra Bed Cover, Under-rail Bedliner
35% Window tint by Rose House of Tint - Manhattan, KS in 1993
Summit Shift-Lite Tachometer, PS, PB, PW, PL, AC, Tilt, Cruise, Etc. . .
If you have any questions - Just Ask Me! Ryan Hampl - Owner, Builder, Driver, and Avid K-Stater!!!
